Stamped Steel Flange Bearings
Stamped steel flange bearings are designed for applications where the shaft is mounted perpendicular to the bearing mounting surface. Our two-piece stamped steel flange bearing housings are constructed of high-quality steel that is zinc plated for corrosion protection. The stamped steel housing houses a C3 precision insert bearing that utilizes shields or rubber seals for bearing protection. We also offer an insert bearing with a rubber outer piece that creates a vibration dampening flange bearing. Standard stamped steel flange bearings are available in 2-bolt, 3-bolt, and 4-bolt options for the ability to be used in a wide range of applications. For additional information or to get a quote, contact our customer service team, and we will be happy to assist you!2-Bolt Stamped Steel Bearings

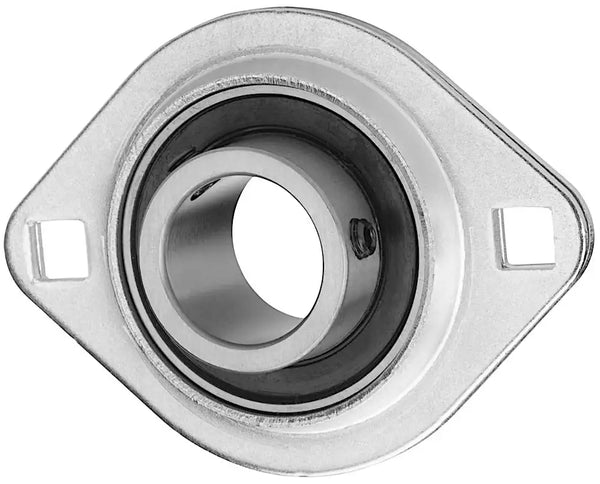

Two-bolt flange bearings utilize two mounting points and are optimal for space-restricted applications or applications requiring mounting position flexibility. The charts below show our standard 2-bolt stamped steel bearing sizes; you need to contact our customer care team if you don't see the specific bearing.
SBPFL200 bearings are 2-bolt stamped steel bearings designed for light-duty applications and utilize two set screws for securing onto a shaft. Their bore size ranges from 1/2" to 1-7/16"; the below size chart shows standard SBPFL200 bearing sizes.
SBPFL200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (g) | (c) | (s) | (b) | (f) | (Bi) | (n) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBPFL201-8 | 1/2" | 3-3/16" | 2-33/64" | 5/64" | 9/16" | 9/32" | 2-21/64" | 1-59/64" | 0.866" | 0.236" | 1/4" | SB201-8 | PFL203 | 0.42 |
| SBPFL202-10 | 5/8" | 3-3/16" | 2-33/64" | 5/64" | 9/16" | 9/32" | 2-21/64" | 1-59/64" | 0.866" | 0.236" | 1/4" | SB202-10 | PFL203 | 0.42 |
| SBPFL204 | 20mm | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-5/8" | 2-7/32" | 0.954" | 0.276" | 5/16" | SB204 | PFL204 | 0.53 |
| SBPFL204-12 | 3/4" | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-5/8" | 2-7/32" | 0.954" | 0.276" | 5/16" | SB204-12 | PFL204 | 0.53 |
| SBPFL205 | 25mm | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-51/64" | 2-3/8" | 1.063" | 0.295" | 5/16" | SB205 | PFL205 | 0.62 |
| SBPFL205-14 | 7/8" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-51/64" | 2-3/8" | 1.063" | 0.295" | 5/16" | SB205-14 | PFL205 | 0.62 |
| SBPFL205-15 | 15/16" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-51/64" | 2-3/8" | 1.063" | 0.295" | 5/16" | SB205-15 | PFL205 | 0.62 |
| SBPFL205-16 | 1" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-51/64" | 2-3/8" | 1.063" | 0.295" | 5/16" | SB205-16 | PFL205 | 0.62 |
| SBPFL206 | 30mm | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 3-5/16" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206 | PFL206 | 0.84 |
| SBPFL206-17 | 1-1/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 3-5/16" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-17 | PFL206 | 0.84 |
| SBPFL206-18 | 1-1/8" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 3-5/16" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-18 | PFL206 | 0.84 |
| SBPFL206-19 | 1-3/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 3-5/16" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-19 | PFL206 | 0.84 |
| SBPFL206-20 | 1-1/4" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 3-5/16" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-20 | PFL206 | 0.84 |
| SBPFL207 | 35mm | 4-29/32" | 3-15/16" | 7/64" | 7/8" | 13/32" | 3-11/16" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207 | PFL207 | 0.99 |
| SBPFL207-20 | 1-1/4" | 4-29/32" | 3-15/16" | 7/64" | 7/8" | 13/32" | 3-11/16" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-20 | PFL207 | 0.99 |
| SBPFL207-21 | 1-5/16" | 4-29/32" | 3-15/16" | 7/64" | 7/8" | 13/32" | 3-11/16" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-21 | PFL207 | 0.99 |
| SBPFL207-22 | 1-3/8" | 4-29/32" | 3-15/16" | 7/64" | 7/8" | 13/32" | 3-11/16" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-22 | PFL207 | 0.99 |
| SBPFL207-23 | 1-7/16" | 4-29/32" | 3-15/16" | 7/64" | 7/8" | 13/32" | 3-11/16" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-23 | PFL207 | 0.99 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (D) | (E) | (F) | (H) | (J) | Bolt Size | Radial Load Rating (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PFL203 | 1/2", 5/8" | 40mm | 2-5/16" | 3-3/16" | 2-1/2" | 9/32" | 9/32" | 1-15/16" | 0.075" | 1/4" | 600 |
| PFL204 | 3/4" | 47mm | 2-5/8" | 3-9/16" | 2-13/16" | 5/16" | 11/32" | 2-3/16" | 0.083" | 5/16" | 700 |
| PFL205 | 7/8" to 1" | 52mm | 2-51/64" | 3-3/4" | 3" | 11/32" | 11/32" | 2-3/8" | 0.083" | 5/16" | 800 |
| PFL206 | 1-1/16" to 1-1/4" | 62mm |
3-5/16"
|
4-7/16" | 3-9/16" | 11/32" | 13/32" | 2-13/16" | 0.104" | 3/8" | 1,100 |
| PFL207 | 1-1/4" to 1-7/16" | 72mm | 3-11/16" | 4-15/16" | 3-15/16" | 7/16" | 13/32" | 3-3/16" | 0.104" | 3/8" | 1,400 |
SAPFL200 bearings are 2-bolt stamped steel bearings designed for light-duty applications and utilize an eccentric locking collar for securing onto a shaft. Their bore size ranges from 1/2" to 1-7/16"; the below size chart shows standard SAPFL200 bearing sizes.
SAPFL200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (g) | (c) | (s) | (b) | (f) | (L) | (n) | (W) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SAPFL201-8 | 1/2" | 3-3/16" | 2-33/64" | 5/64" | 9/16" | 9/32" | 2-21/64" | 1-59/64" | 1.126" | 0.236" | 1-1/4" | 1/4" | SA201-8 | PFL203 | 0.44 |
| SAPFL202-10 | 5/8" | 3-3/16" | 2-33/64" | 5/64" | 9/16" | 9/32" | 2-21/64" | 1-59/64" | 1.126" | 0.236" | 1-1/4" | 1/4" | SA202-10 | PFL203 | 0.44 |
| SAPFL204 | 20mm | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-5/8" | 2-7/32" | 1.220" | 0.276" | 1-1/4" | 5/16" | SA204 | PFL204 | 0.66 |
| SAPFL204-12 | 3/4" | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-5/8" | 2-7/32" | 1.220" | 0.276" | 1-1/4" | 5/16" | SA204-12 | PFL204 | 0.66 |
| SAPFL205 | 25mm | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-51/64" | 2-3/8" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205 | PFL205 | 0.66 |
| SAPFL205-14 | 7/8" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-51/64" | 2-3/8" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-14 | PFL205 | 0.66 |
| SAPFL205-15 | 15/16" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-51/64" | 2-3/8" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-15 | PFL205 | 0.66 |
| SAPFL205-16 | 1" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-51/64" | 2-3/8" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-16 | PFL205 | 0.66 |
| SAPFL206 | 30mm | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 3-5/16" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206 | PFL206 | 1.10 |
| SAPFL206-17 | 1-1/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 3-5/16" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-17 | PFL206 | 1.10 |
| SAPFL206-18 | 1-1/8" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 3-5/16" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-18 | PFL206 | 1.10 |
| SAPFL206-19 | 1-3/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 3-5/16" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-19 | PFL206 | 1.10 |
| SAPFL206-20 | 1-1/4" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 3-5/16" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-20 | PFL206 | 1.10 |
| SAPFL207 | 35mm | 4-29/32" | 3-15/16" | 7/64" | 7/8" | 13/32" | 3-11/16" | 3-3/16" | 1.531" | 0.335" | 2-3/16" | 3/8" | SA207 | PFL207 | 1.54 |
| SAPFL207-20 | 1-1/4" | 4-29/32" | 3-15/16" | 7/64" | 7/8" | 13/32" | 3-11/16" | 3-3/16" | 1.531" | 0.335" | 2-3/16" | 3/8" | SA207-20 | PFL207 | 1.54 |
| SAPFL207-21 | 1-5/16" | 4-29/32" | 3-15/16" | 7/64" | 7/8" | 13/32" | 3-11/16" | 3-3/16" | 1.531" | 0.335" | 2-3/16" | 3/8" | SA207-21 | PFL207 | 1.54 |
| SAPFL207-22 | 1-3/8" | 4-29/32" | 3-15/16" | 7/64" | 7/8" | 13/32" | 3-11/16" | 3-3/16" | 1.531" | 0.335" | 2-3/16" | 3/8" | SA207-22 | PFL207 | 1.54 |
| SAPFL207-23 | 1-7/16" | 4-29/32" | 3-15/16" | 7/64" | 7/8" | 13/32" | 3-11/16" | 3-3/16" | 1.531" | 0.335" | 2-3/16" | 3/8" | SA207-23 | PFL207 | 1.54 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (D) | (E) | (F) | (H) | (J) | Bolt Size | Radial Load Rating (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PFL203 | 1/2", 5/8" | 40mm | 2-5/16" | 3-3/16" | 2-1/2" | 9/32" | 9/32" | 1-15/16" | 0.075" | 1/4" | 600 |
| PFL204 | 3/4" | 47mm | 2-5/8" | 3-9/16" | 2-13/16" | 5/16" | 11/32" | 2-3/16" | 0.083" | 5/16" | 700 |
| PFL205 | 7/8" to 1" | 52mm | 2-51/64" | 3-3/4" | 3" | 11/32" | 11/32" | 2-3/8" | 0.083" | 5/16" | 800 |
| PFL206 | 1-1/16" to 1-1/4" | 62mm |
3-5/16"
|
4-7/16" | 3-9/16" | 11/32" | 13/32" | 2-13/16" | 0.104" | 3/8" | 1,100 |
| PFL207 | 1-1/4" to 1-7/16" | 72mm | 3-11/16" | 4-15/16" | 3-15/16" | 7/16" | 13/32" | 3-3/16" | 0.104" | 3/8" | 1,400 |
CSBMFM200 bearings are 2-bolt stamped steel bearings designed for light-duty applications and utilize two set screws for securing onto a shaft. The unique design of the housing allows for flush mounting in applications. CSBMFM200 bearings bore size ranges from 1/2" to 1-1/4"; the below size chart shows standard CSBMFM200 bearing sizes.
CSBMFM200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (s) | (b) | (Bi) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|
| CSB40MFM201-8 | 1/2" | 3-3/16" | 2-33/64" | 9/32" | 2-21/64" | 0.875" | 1/4" | CSB201-8 | 40-2-MFM | 0.44 |
| CSB40MFM202-10 | 5/8" | 3-3/16" | 2-33/64" | 9/32" | 2-21/64" | 0.875" | 1/4" | CSB202-10 | 40-2-MFM | 0.44 |
| CSB47MFM204 | 20mm | 3-35/64" | 2-51/64" | 11/32" | 2-5/8" | 0.969" | 5/16" | CSB204 | 47-2-MFM | 0.66 |
| CSB47MFM204-12 | 3/4" | 3-35/64" | 2-51/64" | 11/32" | 2-5/8" | 0.969" | 5/16" | CSB204-12 | 47-2-MFM | 0.66 |
| CSB52MFM205 | 25mm | 3-3/4" | 3" | 11/32" | 2-51/64" | 1.063" | 5/16" | CSB205 | 52-2-MFM | 0.66 |
| CSB52MFM205-14 | 7/8" | 3-3/4" | 3" | 11/32" | 2-51/64" | 1.063" | 5/16" | CSB205-14 | 52-2-MFM | 0.66 |
| CSB52MFM205-15 | 15/16" | 3-3/4" | 3" | 11/32" | 2-51/64" | 1.063" | 5/16" | CSB205-15 | 52-2-MFM | 0.66 |
| CSB52MFM205-16 | 1" | 3-3/4" | 3" | 11/32" | 2-51/64" | 1.063" | 5/16" | CSB205-16 | 52-2-MFM | 0.66 |
| CSB62MFM206 | 30mm | 4-7/16" | 3-35/64" | 13/32" | 3-5/16" | 1.188" | 3/8" | CSB206 | 62-2-MFM | 1.10 |
| CSB62MFM206-17 | 1-1/16" | 4-7/16" | 3-35/64" | 13/32" | 3-5/16" | 1.188" | 3/8" | CSB206-17 | 62-2-MFM | 1.10 |
| CSB62MFM206-18 | 1-1/8" | 4-7/16" | 3-35/64" | 13/32" | 3-5/16" | 1.188" | 3/8" | CSB206-18 | 62-2-MFM | 1.10 |
| CSB62MFM206-19 | 1-3/16" | 4-7/16" | 3-35/64" | 13/32" | 3-5/16" | 1.188" | 3/8" | CSB206-19 | 62-2-MFM | 1.10 |
| CSB62MFM206-20 | 1-1/4" | 4-7/16" | 3-35/64" | 13/32" | 3-5/16" | 1.188" | 3/8" | CSB206-20 | 62-2-MFM | 1.10 |
| Housing Part # | Shaft Sizes | (E) | (F) | (G) | (H) | (I) |
|---|---|---|---|---|---|---|
| 40-2-MFM | 1/2", 5/8" | 9/32" | 1.5748" | 0.512" | 0.074" | 1.250" |
| 47-2-MFM | 3/4" | 11/32" | 1.8504" | 0.590" | 0.074" | 1.428" |
| 52-2-MFM | 7/8", 15/16", 1" | 11/32" | 2.0472" | 0.590" | 0.074" | 1.625" |
| 62-2-MFM | 1-1/16", 1-1/8", 1-3/16", 1-1/4" | 13/32" | 2.4409" |
0.709"
|
0.089" | 2.018" |
CSAMFM200 bearings are 2-bolt stamped steel bearings designed for light-duty applications and utilize an eccentric locking collar for securing onto a shaft. The unique design of the housing allows for flush mounting in applications. CSAMFM200 bearings bore size ranges from 1/2" to 1-1/4"; the below size chart shows standard CSAMFM200 bearing sizes.
CSAMFM200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (s) | (b) | (L) | (W) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CSA40MFM201-8 | 1/2" | 3-3/16" | 2-33/64" | 9/32" | 2-21/64" | 1.126" | 1-1/8" | 1/4" | CSA201-8 | 40-2-MFM | 0.44 |
| CSA40MFM202-10 | 5/8" | 3-3/16" | 2-33/64" | 9/32" | 2-21/64" | 1.126" | 1-1/8" | 1/4" | CSA202-10 | 40-2-MFM | 0.44 |
| CSA47MFM204 | 20mm | 3-35/64" | 2-51/64" | 11/32" | 2-5/8" | 1.220" | 1-1/4" | 5/16" | CSA204 | 47-2-MFM | 0.66 |
| CSA47MFM204-12 | 3/4" | 3-35/64" | 2-51/64" | 11/32" | 2-5/8" | 1.220" | 1-1/4" | 5/16" | CSA204-12 | 47-2-MFM | 0.66 |
| CSA52MFM205 | 25mm | 3-3/4" | 3" | 11/32" | 2-51/64" | 1.220" | 1-1/2" | 5/16" | CSA205 | 52-2-MFM | 0.66 |
| CSA52MFM205-14 | 7/8" | 3-3/4" | 3" | 11/32" | 2-51/64" | 1.220" | 1-1/2" | 5/16" | CSA205-14 | 52-2-MFM | 0.66 |
| CSA52MFM205-15 | 15/16" | 3-3/4" | 3" | 11/32" | 2-51/64" | 1.220" | 1-1/2" | 5/16" | CSA205-15 | 52-2-MFM | 0.66 |
| CSA52MFM205-16 | 1" | 3-3/4" | 3" | 11/32" | 2-51/64" | 1.220" | 1-1/2" | 5/16" | CSA205-16 | 52-2-MFM | 0.66 |
| CSA62MFM206 | 30mm | 4-7/16" | 3-35/64" | 13/32" | 3-5/16" | 1.406" | 1-3/4" | 3/8" | CSA206 | 62-2-MFM | 1.10 |
| CSA62MFM206-17 | 1-1/16" | 4-7/16" | 3-35/64" | 13/32" | 3-5/16" | 1.406" | 1-3/4" | 3/8" | CSA206-17 | 62-2-MFM | 1.10 |
| CSA62MFM206-18 | 1-1/8" | 4-7/16" | 3-35/64" | 13/32" | 3-5/16" | 1.406" | 1-3/4" | 3/8" | CSA206-18 | 62-2-MFM | 1.10 |
| CSA62MFM206-19 | 1-3/16" | 4-7/16" | 3-35/64" | 13/32" | 3-5/16" | 1.406" | 1-3/4" | 3/8" | CSA206-19 | 62-2-MFM | 1.10 |
| CSA62MFM206-20 | 1-1/4" | 4-7/16" | 3-35/64" | 13/32" | 3-5/16" | 1.406" | 1-3/4" | 3/8" | CSA206-20 | 62-2-MFM | 1.10 |
| Housing Part # | Shaft Sizes | (E) | (F) | (G) | (H) | (I) |
|---|---|---|---|---|---|---|
| 40-2-MFM | 1/2", 5/8" | 9/32" | 1.5748" | 0.512" | 0.074" | 1.250" |
| 47-2-MFM | 3/4" | 11/32" | 1.8504" | 0.590" | 0.074" | 1.428" |
| 52-2-MFM | 7/8", 15/16", 1" | 11/32" | 2.0472" | 0.590" | 0.074" | 1.625" |
| 62-2-MFM | 1-1/16", 1-1/8", 1-3/16", 1-1/4" | 13/32" | 2.4409" |
0.709"
|
0.089" | 2.018" |
CSBMFMR200 bearings are 2-bolt stamped steel bearings designed for light-duty applications and utilize two set screws for securing onto a shaft.
They also feature a rubber cushion/ boot that goes on the outside of the insert bearing to make the bearings vibration-damping. The unique design of the housing allows for flush mounting in applications. CSBMFMR200 bearings bore size ranges from 1/2" to 1"; the below size chart shows standard CSBMFMR200 bearing sizes.
| Bearing Part # | Bearing I.D. | (a) | (e) | (b) | (D) | (E) | (Bi) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CSB728MFM201-8 | 1/2" | 4" | 3" | 2" | 29/64" | 3/4" | 0.875" | 1/4" | CSB201-8 | 728-2-MFM | 0.30 |
| CSB728MFM202-10 | 5/8" | 4" | 3" | 2" | 29/64" | 3/4" | 0.875" | 1/4" | CSB202-10 | 728-2-MFM | 0.30 |
| CSB729MFM204 | 20mm | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 0.969" | 5/16" | CSB204 | 729-2-MFM | 0.50 |
| CSB729MFM204-12 | 3/4" | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 0.969" | 5/16" | CSB204-12 | 729-2-MFM | 0.50 |
| CSB730MFM205 | 25mm | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 1.063" | 5/16" | CSB205 | 730-2-MFM | 0.50 |
| CSB730MFM205-14 | 7/8" | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 1.063" | 5/16" | CSB205-14 | 730-2-MFM | 0.50 |
| CSB730MFM205-15 | 15/16" | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 1.063" | 5/16" | CSB205-15 | 730-2-MFM | 0.50 |
| CSB730MFM205-16 | 1" | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 1.063" | 5/16" | CSB205-16 | 730-2-MFM | 0.50 |
| Housing Part # | Shaft Sizes | (F) | (G) | (H) |
|---|---|---|---|---|
| 728-2-MFM | 1/2", 5/8" | 1.5748" | 0.512" | 0.074" |
| 729-2-MFM | 3/4" | 1.8504" | 0.590" | 0.074" |
| 730-2-MFM | 7/8", 15/16", 1" | 2.0472" | 0.590" | 0.074" |
CSAMFMR200 bearings are 2-bolt stamped steel bearings designed for light-duty applications and utilize an eccentric locking collar for securing onto a shaft. They also feature a rubber cushion/ boot that goes on the outside of the insert bearing to make the bearings vibration-damping. The unique design of the housing allows for flush mounting in applications. CSAMFMR200 bearings bore size ranges from 1/2" to 1"; the below size chart shows standard CSAMFMR200 bearing sizes.
CSAMFMR200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (b) | (D) | (E) | (L) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CSA728MFM201-8 | 1/2" | 4" | 3" | 2" | 29/64" | 3/4" | 1.126" | 1/4" | CSA201-8 | 728-2-MFM | 0.30 |
| CSA728MFM202-10 | 5/8" | 4" | 3" | 2" | 29/64" | 3/4" | 1.126" | 1/4" | CSA202-10 | 728-2-MFM | 0.30 |
| CSA729MFM204 | 20mm | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 1.220" | 5/16" | CSA204 | 729-2-MFM | 0.50 |
| CSA729MFM204-12 | 3/4" | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 1.220" | 5/16" | CSA204-12 | 729-2-MFM | 0.50 |
| CSA730MFM205 | 25mm | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 1.220" | 5/16" | CSA205 | 730-2-MFM | 0.50 |
| CSA730MFM205-14 | 7/8" | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 1.220" | 5/16" | CSA205-14 | 730-2-MFM | 0.50 |
| CSA730MFM205-15 | 15/16" | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 1.220" | 5/16" | CSA205-15 | 730-2-MFM | 0.50 |
| CSA730MFM205-16 | 1" | 4-1/2" | 3-3/8" | 2-1/2" | 29/64" | 3/4" | 1.220" | 5/16" | CSA205-16 | 730-2-MFM | 0.50 |
| Housing Part # | Shaft Sizes | (F) | (G) | (H) |
|---|---|---|---|---|
| 728-2-MFM | 1/2", 5/8" | 1.5748" | 0.512" | 0.074" |
| 729-2-MFM | 3/4" | 1.8504" | 0.590" | 0.074" |
| 730-2-MFM | 7/8", 15/16", 1" | 2.0472" | 0.590" | 0.074" |
3-Bolt Stamped Steel Bearings

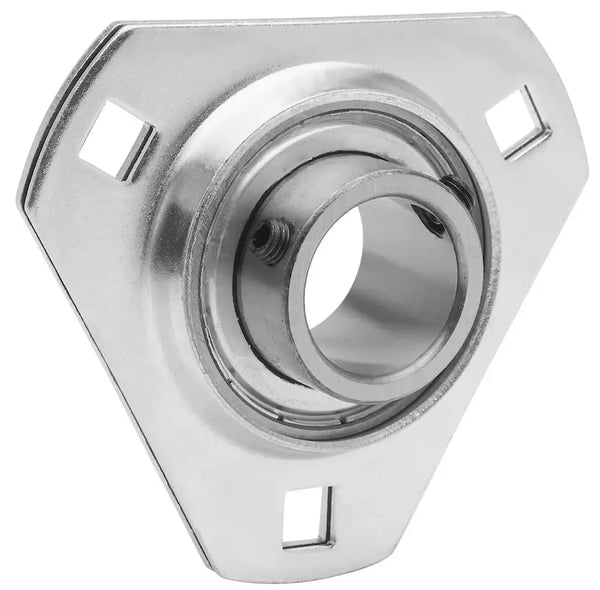

3-Bolt stamped steel bearings are supplied in two different housing styles; triangle flange and round flange. These bearings utilize three different mounting holes (bolt holes) for securing onto a surface and, by design, offer a wide range of mounting positions and fantastic stability.

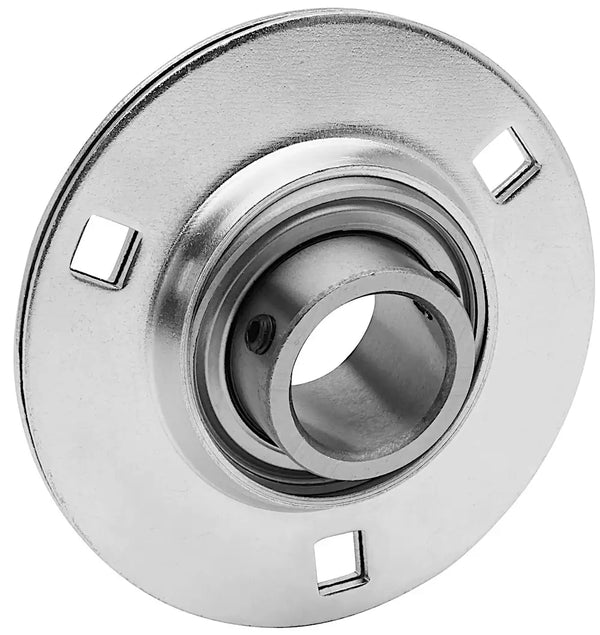

SBPF200 3-bolt stamped steel flange bearings are designed for light-duty applications and utilize two set screws for securing onto a shaft. Their bore size ranges from 1/2" to 1-7/16"; the below size chart shows standard SBPF200 bearing sizes.
SBPF200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (g) | (c) | (s) | (f) | (Bi) | (n) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBPF201-8 | 1/2" | 3-3/16" | 2-33/64" | 5/64" | 9/16" | 9/32" | 1-59/64" | 0.866" | 0.236" | 1/4" | SB201-8 | PF203 | 0.66 |
| SBPF202-10 | 5/8" | 3-3/16" | 2-33/64" | 5/64" | 9/16" | 9/32" | 1-59/64" | 0.866" | 0.236" | 1/4" | SB202-10 | PF203 | 0.66 |
| SBPF204 | 20mm |
3-35/64"
|
2-51/64" | 3/32" | 5/8" | 11/32" | 2-7/32" | 0.984" | 0.276" | 5/16" | SB204 | PF204 | 0.73 |
| SBPF204-12 | 3/4" | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-7/32" | 0.984" | 0.276" | 5/16" | SB204-12 | PF204 | 0.73 |
| SBPF205 | 25mm | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205 | PF205 | 0.84 |
| SBPF205-14 | 7/8" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205-14 | PF205 | 0.84 |
| SBPF205-15 | 15/16" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205-15 | PF205 | 0.84 |
| SBPF205-16 |
1"
|
3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205-16 | PF205 | 0.84 |
| SBPF206 | 30mm | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206 | PF206 | 1.41 |
| SBPF206-17 | 1-1/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-17 | PF206 | 1.41 |
| SBPF206-18 | 1-1/8" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-18 | PF206 | 1.41 |
| SBPF206-19 | 1-3/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-19 | PF206 | 1.41 |
| SBPF206-20 | 1-1/4" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-20 | PF206 | 1.41 |
| SBPF207 | 35mm | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207 | PF207 | 1.80 |
| SBPF207-20 | 1-1/4" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-20 | PF207 | 1.80 |
| SBPF207-21 | 1-5/16" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-21 | PF207 | 1.80 |
| SBPF207-22 | 1-3/8" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-22 | PF207 | 1.80 |
| SBPF207-23 | 1-7/16" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-23 | PF207 | 1.80 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (G) | Bolt Size | (D) | Hole Width |
|---|---|---|---|---|---|---|---|---|
| PF203 | 1/2" to 5/8" | 1-15/16" | 3-3/16" | 9/16" | 0.075" | 1/4" | 2-1/2" | 9/32" |
| PF204 | 3/4" | 2-3/16" | 3-9/16" | 5/8" | 0.083" | 5/16" | 2-13/16" | 11/32" |
| PF205 | 7/8" to 1" | 2-3/8" | 3-3/4" | 11/16" | 0.083" | 5/16" | 3" | 11/32" |
| PF206 | 1-1/16" to 1-1/4" | 2-13/16" | 4-7/16" | 11/16" | 0.104" | 3/8" | 3-9/16" | 13/32" |
| PF207 | 1-1/4" to 1-7/16" | 3-3/16" | 4-13/16" | 3/4" | 0.104" | 3/8" | 3-15/16" | 13/32" |
SAPF200 3-bolt stamped steel flange bearings are designed for light-duty applications and utilize an eccentric locking collar for securing onto a shaft. Their bore size ranges from 1/2" to 1-7/16"; the below size chart shows standard SAPF200 bearing sizes.
| Bearing Part # | Bearing I.D. | (a) | (e) | (g) | (c) | (s) | (f) | (L) | (n) | (W) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SAPF201-8 | 1/2" | 3-3/16" | 2-33/64" | 5/64" | 9/16" | 9/32" | 1-59/64" | 1.126" | 0.236" | 1-1/8" | 1/4" | SA201-8 | PF203 | 0.68 |
| SAPF202-10 | 5/8" | 3-3/16" | 2-33/64" | 5/64" | 9/16" | 9/32" | 1-59/64" | 1.126" | 0.236" | 1-1/8" | 1/4" | SA202-10 | PF203 | 0.68 |
| SAPF204 | 20mm | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-7/32" | 1.220" | 0.276" | 1-1/4" | 5/16" | SA204 | PF204 | 0.77 |
| SAPF204-12 | 3/4" | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-7/32" | 1.220" | 0.276" | 1-1/4" | 5/16" | SA204-12 | PF204 | 0.77 |
| SAPF205 | 25mm | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205 | PF205 | 0.88 |
| SAPF205-14 | 7/8" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-14 | PF205 | 0.88 |
| SAPF205-15 | 15/16" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-15 | PF205 | 0.88 |
| SAPF205-16 | 1" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-16 | PF205 | 0.88 |
| SAPF206 | 30mm | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206 | PF206 | 1.50 |
| SAPF206-17 | 1-1/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-17 | PF206 | 1.50 |
| SAPF206-18 | 1-1/8" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-18 | PF206 | 1.50 |
| SAPF206-19 | 1-3/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-19 | PF206 | 1.50 |
| SAPF206-20 | 1-1/4" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-20 | PF206 | 1.50 |
| SAPF207 | 35mm | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207 | PF207 | 1.85 |
| SAPF207-20 | 1-1/4" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207-20 | PF207 | 1.85 |
| SAPF207-21 | 1-5/16" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207-21 | PF207 | 1.85 |
| SAPF207-22 | 1-3/8" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207-22 | PF207 | 1.85 |
| SAPF207-23 | 1-7/16" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207-23 | PF207 | 1.85 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (G) | Bolt Size | (D) | Hole Width |
|---|---|---|---|---|---|---|---|---|
| PF203 | 1/2" to 5/8" | 1-15/16" | 3-3/16" | 9/16" | 0.075" | 1/4" | 2-1/2" | 9/32" |
| PF204 | 3/4" | 2-3/16" | 3-9/16" | 5/8" | 0.083" | 5/16" | 2-13/16" | 11/32" |
| PF205 | 7/8" to 1" | 2-3/8" | 3-3/4" | 11/16" | 0.083" | 5/16" | 3" | 11/32" |
| PF206 | 1-1/16" to 1-1/4" | 2-13/16" | 4-7/16" | 11/16" | 0.104" | 3/8" | 3-9/16" | 13/32" |
| PF207 | 1-1/4" to 1-7/16" | 3-3/16" | 4-13/16" | 3/4" | 0.104" | 3/8" | 3-15/16" | 13/32" |
SBPFG200 3-bolt stamped steel flange bearings are designed for light-duty applications and utilize two set screws for securing onto a shaft and feature a grease zerk for adding lube/ grease. Their bore size ranges from 20mm to 1-7/16"; the below size chart shows standard SBPFG200 bearing sizes.
SBPFG200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (g) | (c) | (s) | (f) | (Bi) | (n) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBPF204G | 20mm | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-7/32" | 0.984" | 0.276" | 5/16" | SB204 | PF204G | 0.65 |
| SBPF204-12G | 3/4" | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-7/32" | 0.984" | 0.276" | 5/16" | SB204-12 | PF204G | 0.65 |
| SBPF205G | 25mm | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205 | PF205G | 0.75 |
| SBPF205-14G | 7/8" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205-14 | PF205G | 0.75 |
| SBPF205-15G | 15/16" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205-15 | PF205G | 0.75 |
| SBPF205-16G | 1" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205-16 | PF205G | 0.75 |
| SBPF206G | 30mm | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206 | PF206G | 1.20 |
| SBPF206-17G | 1-1/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-17 | PF206G | 1.20 |
| SBPF206-18G | 1-1/8" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-18 | PF206G | 1.20 |
| SBPF206-19G |
1-3/16"
|
4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-19 | PF206G | 1.20 |
| SBPF206-20G | 1-1/4" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-20 | PF206G | 1.20 |
| SBPF207G | 35mm | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207 | PF207G | 1.45 |
| SBPF207-20G | 1-1/4" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-20 | PF207G | 1.45 |
| SBPF207-21G | 1-5/16" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-21 | PF207G | 1.45 |
| SBPF207-22G | 1-3/8" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-22 | PF207G | 1.45 |
| SBPF207-23G | 1-7/16" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-23 | PF207G | 1.45 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (G) | Bolt Size | (D) |
(E)
|
|---|---|---|---|---|---|---|---|---|
| PF204G | 3/4" | 2-3/16" | 3-9/16" | 5/8" | 0.083" | 5/16" | 2-13/16" | 11/32" |
| PF205G | 13/16" to 1" | 2-3/8" | 3-3/4" | 11/16" | 0.083" | 5/16" | 3" | 11/32" |
| PF206G | 1-1/16" to 1-1/4" | 2-13/16" | 4-7/16" | 3/4" | 0.104" | 3/8" | 3-9/16" | 13/32" |
| PF207G | 1-1/4" to 1-7/16" | 3-3/16" | 4-13/16" | 7/8" | 0.134" | 3/8" | 3-15/16" | 13/32" |
SAPFG200 3-bolt stamped steel flange bearings are designed for light-duty applications and utilize an eccentric locking collar for securing onto a shaft and feature a grease zerk for adding lube/ grease. Their bore size ranges from 20mm to 1-7/16"; the chart below shows standard SAPFG200 bearing sizes.
SAPFG200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (g) | (c) | (s) | (f) | (L) | (n) | (W) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SAPF204G | 20mm | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-7/32" | 1.220" | 0.276" | 1-1/4" | 5/16" | SA204 | PF204G | 0.75 |
| SAPF204-12G | 3/4" | 3-35/64" | 2-51/64" | 3/32" | 5/8" | 11/32" | 2-7/32" | 1.220" | 0.276" | 1-1/4" | 5/16" | SA204-12 | PF204G | 0.75 |
| SAPF205G | 25mm | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205 | PF205G | 0.85 |
| SAPF205-14G | 7/8" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-14 | PF205G | 0.85 |
| SAPF205-15G | 15/16" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-15 | PF205G | 0.85 |
| SAPF205-16G | 1" | 3-3/4" | 2-63/64" | 3/32" | 21/32" | 11/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-16 | PF205G | 0.85 |
| SAPF206G | 30mm | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206 | PF206G | 1.30 |
| SAPF206-17G | 1-1/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-17 | PF206G | 1.30 |
| SAPF206-18G | 1-1/8" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-18 | PF206G | 1.30 |
| SAPF206-19G | 1-3/16" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-19 | PF206G | 1.30 |
| SAPF206-20G | 1-1/4" | 4-7/16" | 3-35/64" | 7/64" | 21/32" | 13/32" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-20 | PF206G | 1.30 |
| SAPF207G | 35mm | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207 | PF207G | 1.70 |
| SAPF207-20G | 1-1/4" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207-20 | PF207G | 1.70 |
| SAPF207-21G | 1-5/16" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207-21 | PF207G | 1.70 |
| SAPF207-22G | 1-3/8" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207-22 | PF207G | 1.70 |
| SAPF207-23G | 1-7/16" | 4-13/16" | 3-15/16" | 7/64" | 3/4" | 13/32" | 3-3/16" | 1.531" | 0.335" | 2-15/64" | 3/8" | SA207-23 | PF207G | 1.70 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (G) | Bolt Size | (D) |
(E)
|
|---|---|---|---|---|---|---|---|---|
| PF204G | 3/4" | 2-3/16" | 3-9/16" | 5/8" | 0.083" | 5/16" | 2-13/16" | 11/32" |
| PF205G | 13/16" to 1" | 2-3/8" | 3-3/4" | 11/16" | 0.083" | 5/16" | 3" | 11/32" |
| PF206G | 1-1/16" to 1-1/4" | 2-13/16" | 4-7/16" | 3/4" | 0.104" | 3/8" | 3-9/16" | 13/32" |
| PF207G | 1-1/4" to 1-7/16" | 3-3/16" | 4-13/16" | 7/8" | 0.134" | 3/8" | 3-15/16" | 13/32" |
S
BPFT200 3-bolt stamped steel triangle flange bearings are designed for light-duty applications and utilize two set screws for securing onto a shaft. Their bore size ranges from 1/2" to 1-7/16"; the below size chart shows standard SBPFT200 bearing sizes.
SBPFT200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (h) | (s) | (c) | (g) | (b) | (f) | (Bi) | (n) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBPFT201-8 | 1/2" | 2-23/32" | 2-33/64" | 1-3/16" | 9/32" | 9/16" | 5/64" | 13/16" | 1-59/64" | 0.866" | 0.236" | 1/4" | SB201-8 | PFT203 | 0.57 |
| SBPFT202-10 | 5/8" | 2-23/32" | 2-33/64" | 1-3/16" | 9/32" | 9/16" | 5/64" | 13/16" | 1-59/64" | 0.866" | 0.236" | 1/4" | SB202-10 | PFT203 | 0.57 |
| SBPFT204 | 20mm | 2-63/64" | 2-51/64" | 1-19/64" | 11/32" | 5/8" | 3/32" | 1-1/16" | 2-7/32" | 0.984" | 0.276" | 5/16" | SB204 | PFT204 | 0.59 |
| SBPFT204-12 | 3/4" | 2-63/64" | 2-51/64" | 1-19/64" | 11/32" | 5/8" | 3/32" | 1-1/16" | 2-7/32" | 0.984" | 0.276" | 5/16" | SB204-12 | PFT204 | 0.59 |
| SBPFT205 | 25mm | 3-1/8" | 2-63/64" | 1-3/8" | 11/32" | 21/32" | 3/32" | 1-3/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205 | PFT205 | 0.66 |
| SBPFT205-14 | 7/8" | 3-1/8" | 2-63/64" | 1-3/8" | 11/32" | 21/32" | 3/32" | 1-3/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205-14 | PFT205 | 0.66 |
| SBPFT205-15 | 15/16" | 3-1/8" | 2-63/64" | 1-3/8" | 11/32" | 21/32" | 3/32" | 1-3/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205-15 | PFT205 | 0.66 |
| SBPFT205-16 | 1" | 3-1/8" | 2-63/64" | 1-3/8" | 11/32" | 21/32" | 3/32" | 1-3/32" | 2-19/32" | 1.063" | 0.295" | 5/16" | SB205-16 | PFT205 | 0.66 |
| SBPFT206 | 30mm | 3-11/16" | 3-35/64" | 1-1/2" | 13/32" | 21/32" | 7/64" | 1-1/8" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206 | PFT206 | 0.88 |
| SBPFT206-17 | 1-1/16" | 3-11/16" | 3-35/64" | 1-1/2" | 13/32" | 21/32" | 7/64" | 1-1/8" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-17 | PFT206 | 0.88 |
| SBPFT206-18 | 1-1/8 | 3-11/16" | 3-35/64" | 1-1/2" | 13/32" | 21/32" | 7/64" | 1-1/8" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-18 | PFT206 | 0.88 |
| SBPFT206-19 | 1-3/16" | 3-11/16" | 3-35/64" | 1-1/2" | 13/32" | 21/32" | 7/64" | 1-1/8" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-19 | PFT206 | 0.88 |
| SBPFT206-20 | 1-1/4" | 3-11/16" | 3-35/64" | 1-1/2" | 13/32" | 21/32" | 7/64" | 1-1/8" | 2-51/64" | 1.181" | 0.315" | 3/8" | SB206-20 | PFT206 | 0.88 |
| SBPFT207 | 35mm | 4-11/64" | 3-15/16" | 1-3/4" | 13/32" | 3/4" | 7/64" | 1-1/4" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207 | PFT207 | 1.54 |
| SBPFT207-20 | 1-1/4" | 4-11/64" | 3-15/16" | 1-3/4" | 13/32" | 3/4" | 7/64" | 1-1/4" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-20 | PFT207 | 1.54 |
| SBPFT207-21 | 1-5/16" | 4-11/64" | 3-15/16" | 1-3/4" | 13/32" | 3/4" | 7/64" | 1-1/4" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-21 | PFT207 | 1.54 |
| SBPFT207-22 | 1-3/8" | 4-11/64" | 3-15/16" | 1-3/4" | 13/32" | 3/4" | 7/64" | 1-1/4" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-22 | PFT207 | 1.54 |
| SBPFT207-23 | 1-7/16" | 4-11/64" | 3-15/16" | 1-3/4" | 13/32" | 3/4" | 7/64" | 1-1/4" | 3-3/16" | 1.260" | 0.335" | 3/8" | SB207-23 | PFT207 | 1.54 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (D) +/-0.005" | (E) | (F) | (G) | (H) | Min. Frame Opening |
|---|---|---|---|---|---|---|---|---|---|---|
| PFT203 | 1/2" to 5/8" | 2-23/32" | 1-1/8" | 13/16" | 9/32" | 2-1/2" | 9/32' | 0.075" | 40mm | 1-15/16" |
| PFT204 | 3/4" | 3" | 1-5/16" | 1-1/16" | 11/32" | 2-13/16" | 5/16" | 0.083" | 47mm | 2-3/16" |
| PFT205 | 7/8" to 1" | 3-1/8" | 1-3/8" | 1-3/32" | 11/32" | 3" | 11/32" | 0.083" | 52mm | 2-3/8" |
| PFT206 | 1-1/16" to 1-1/4" | 3-11/16" | 1-1/2" | 1" | 13/32" | 3-9/16" | 11/32" | 0.104" | 62mm | 2-13/16" |
| PFT207 | 1-1/4" to 1-7/16" | 4-5/32" | 1-3/4" | 1-17/64" | 13/32" | 3-15/16" | 3/8" | 0.104" | 72mm | 3-3/16" |
SAPFT200 3-bolt stamped steel triangle flange bearings are designed for light-duty applications and utilize an eccentric locking collar for securing onto a shaft. Their bore size ranges from 1/2" to 1-7/16"; the below size chart shows standard SAPFT200 bearing sizes.
SAPFT200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (h) | (s) | (c) | (g) | (b) | (f) | (L) | (n) | (W) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SAPFT201-8 | 1/2" | 2-33/32" | 2-33/64" | 1-3/16" | 9/32" | 9/16" | 5/64" | 13/16" | 1-59/64" | 1.126" | 0.236" | 1-1/8" | 1/4" | SA201-8 | PFT203 | 0.57 |
| SAPFT202-10 | 5/8" | 2-33/32" | 2-33/64" | 1-3/16" | 9/32" | 9/16" | 5/64" | 13/16" | 1-59/64" | 1.126" | 0.236" | 1-1/8" | 1/4" | SA202-10 | PFT203 | 0.57 |
| SAPFT204 | 20mm | 2-63/64" | 2-51/64" | 1-19/64" | 11/32" | 5/8" | 3/32" | 1-1/16" | 2-7/32" | 1.220" | 0.276" | 1-1/4" | 5/16" | SA204 | PFT204 | 0.59 |
| SAPFT204-12 | 3/4" | 2-63/64" | 2-51/64" | 1-19/64" | 11/32" | 5/8" | 3/32" | 1-1/16" | 2-7/32" | 1.220" | 0.276" | 1-1/4" | 5/16" | SA204-12 | PFT204 | 0.59 |
| SAPFT205 | 25mm | 3-1/8" | 2-63/64" | 1-3/8" | 11/32" | 21/32" | 3/32" | 1-3/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205 | PFT205 | 0.66 |
| SAPFT205-14 | 7/8" | 3-1/8" | 2-63/64" | 1-3/8" | 11/32" | 21/32" | 3/32" | 1-3/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-14 | PFT205 | 0.66 |
| SAPFT205-15 | 15/16" | 3-1/8" | 2-63/64" | 1-3/8" | 11/32" | 21/32" | 3/32" | 1-3/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-15 | PFT205 | 0.66 |
| SAPFT205-16 | 1" | 3-1/8" | 2-63/64" | 1-3/8" | 11/32" | 21/32" | 3/32" | 1-3/32" | 2-19/32" | 1.220" | 0.295" | 1-1/2" | 5/16" | SA205-16 | PFT205 | 0.66 |
| SAPFT206 | 30mm | 3-11/16" | 3-35/64" | 1-1/2" | 13/32" | 21/32" | 7/64" | 1-1/8" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206 | PFT206 | 0.88 |
| SAPFT206-17 | 1-1/16" | 3-11/16" | 3-35/64" | 1-1/2" | 13/32" | 21/32" | 7/64" | 1-1/8" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-17 | PFT206 | 0.88 |
| SAPFT206-18 | 1-1/8" | 3-11/16" | 3-35/64" | 1-1/2" | 13/32" | 21/32" | 7/64" | 1-1/8" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-18 | PFT206 | 0.88 |
| SAPFT206-19 | 1-3/16" | 3-11/16" | 3-35/64" | 1-1/2" | 13/32" | 21/32" | 7/64" | 1-1/8" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-19 | PFT206 | 0.88 |
| SAPFT206-20 | 1-1/4" | 3-11/16" | 3-35/64" | 1-1/2" | 13/32" | 21/32" | 7/64" | 1-1/8" | 2-51/64" | 1.406" | 0.315" | 1-3/4" | 3/8" | SA206-20 | PFT206 | 0.88 |
| SAPFT207 | 35mm | 4-11/64" | 3-15/16" | 1-3/4" | 13/32" | 3/4" | 7/64" | 1-1/4" | 3-3/16" | 1.531" | 0.335" | 2-3/16" | 3/8" | SA207 | PFT207 | 1.54 |
| SAPFT207-20 | 1-1/4" | 4-11/64" | 3-15/16" | 1-3/4" | 13/32" | 3/4" | 7/64" | 1-1/4" | 3-3/16" | 1.531" | 0.335" | 2-3/16" | 3/8" | SA207-20 | PFT207 | 1.54 |
| SAPFT207-21 | 1-5/16" | 4-11/64" | 3-15/16" | 1-3/4" | 13/32" | 3/4" | 7/64" | 1-1/4" | 3-3/16" | 1.531" | 0.335" | 2-3/16" | 3/8" | SA207-21 | PFT207 | 1.54 |
| SAPFT207-22 | 1-3/8" | 4-11/64" | 3-15/16" | 1-3/4" | 13/32" | 3/4" | 7/64" | 1-1/4" | 3-3/16" | 1.531" | 0.335" | 2-3/16" | 3/8" | SA207-22 | PFT207 | 1.54 |
| SAPFT207-23 | 1-7/16" | 4-11/64" | 3-15/16" | 1-3/4" | 13/32" | 3/4" | 7/64" | 1-1/4" | 3-3/16" | 1.531" | 0.335" | 2-3/16" | 3/8" | SA207-23 | PFT207 | 1.54 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (D) +/-0.005" | (E) | (F) | (G) | (H) | Min. Frame Opening |
|---|---|---|---|---|---|---|---|---|---|---|
| PFT203 | 1/2" to 5/8" | 2-23/32" | 1-1/8" | 13/16" | 9/32" | 2-1/2" | 9/32' | 0.075" | 40mm | 1-15/16" |
| PFT204 | 3/4" | 3" | 1-5/16" | 1-1/16" | 11/32" | 2-13/16" | 5/16" | 0.083" | 47mm | 2-3/16" |
| PFT205 | 7/8" to 1" | 3-1/8" | 1-3/8" | 1-3/32" | 11/32" | 3" | 11/32" | 0.083" | 52mm | 2-3/8" |
| PFT206 | 1-1/16" to 1-1/4" | 3-11/16" | 1-1/2" | 1" | 13/32" | 3-9/16" | 11/32" | 0.104" | 62mm | 2-13/16" |
| PFT207 | 1-1/4" to 1-7/16" | 4-5/32" | 1-3/4" | 1-17/64" | 13/32" | 3-15/16" | 3/8" | 0.104" | 72mm | 3-3/16" |
4-Bolt Stamped Steel Bearings
4-bolt stamped steel flange bearings are designed for light-duty industrial and agricultural applications. Our high-quality zinc plated housings and performance insert bearings made to C3 precision standards create a durable and high-quality stamped steel flange bearing. Having four mounting holes for securing into an application is beneficial for added holding power and stabilization. The below charts show our standard four-bolt stamped steel bearings, for additional information or to get a quote contact our customer support and we will be happy to assist you!
SBPF200 four-bolt stamped steel flange bearings are designed for light-duty applications and utilize two set screws for securing onto a shaft. Their bore size ranges from 40mm to 2"; the below size chart shows standard SBPF200 bearing sizes.
SBPF200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (g) | (c) | (s) | (f) | (Bi) | (n) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBPF208 | 40mm | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.339" | 0.354" | 1/2" | SB208 | PF208 | 2.20 |
| SBPF208-24 | 1-1/2" | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.339" | 0.354" | 1/2" | SB208-24 | PF208 | 2.20 |
| SBPF208-25 | 1-9/16" | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.339" | 0.354" | 1/2" | SB208-25 | PF208 | 2.20 |
| SBPF209 | 45mm | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-3/16" | 1.625" | 0.375" | 1/2" | SB209 | PF209 | 3.00 |
| SBPF209-26 | 1-1/2" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-3/16" | 1.625" | 0.375" | 1/2" | SB209-26 | PF209 | 3.00 |
| SBPF209-27 | 1-9/16" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-3/16" | 1.625" | 0.375" | 1/2" | SB209-27 | PF209 | 3.00 |
| SBPF209-28 | 1-3/4" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-3/16" | 1.625" | 0.375" | 1/2" | SB209-28 | PF209 | 3.00 |
| SBPF210 | 50mm | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.688" | 0.391" | 1/2" | SB210 | PF210 | 3.25 |
| SBPF210-30 | 1-7/8" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.688" | 0.391" | 1/2" | SB210-30 | PF210 | 3.25 |
| SBPF210-31 | 1-15/16" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.688" | 0.391" | 1/2" | SB210-31 | PF210 | 3.25 |
| SBPF210-32 | 2" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.688" | 0.391" | 1/2" | SB210-32 | PF210 | 3.25 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (G) | Bolt Size | (D) | Hole Width |
|---|---|---|---|---|---|---|---|---|
| PF208 | 1-1/2" to 1-9/16" | 3-9/16" | 5-13/16" | 13/16" | 0.134" | 1/2" | 4-11/16" | 17/32" |
| PF209 | 1-5/8" to 1-3/4" | 3-13/16" | 5-7/8" | 7/8" | 0.134" | 1/2" | 4-3/4" | 17/32" |
| PF210 | 1-13/16" to 2" | 4" | 6-1/8" | 7/8" | 0.149" | 1/2" | 5" | 17/32" |
| PF211 | 2" to 2-3/16" | 4-7/16" | 6-9/16" | 15/16" | 0.149" | 1/2" | 5-7/16" | 17/32" |
SAPF200 four-bolt stamped steel flange bearings are designed for light-duty applications and utilize an eccentric locking collar for securing onto a shaft. Their bore size ranges from 40mm to 2"; the below size chart shows standard SAPF200 bearing sizes.
SAPF200 Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us
.
| Bearing Part # | Bearing I.D. | (a) | (e) | (g) | (c) | (s) | (f) | (L) | (n) | (W) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SAPF208 | 40mm | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.720" | 0.354" | 2-3/8" | 1/2" | SA208 | PF208 | 2.86 |
| SAPF208-24 | 1-1/2" | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.720" | 0.354" | 2-3/8" | 1/2" | SA208-24 | PF208 | 2.86 |
| SAPF208-25 |
1-9/16"
|
5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.720" | 0.354" | 2-3/8" | 1/2" | SA208-25 | PF208 | 2.86 |
| SAPF209 | 45mm | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-3/16" | 1.720" | 0.374" | 2-1/2" | 1/2" | SA209 | PF209 | 3.74 |
| SAPF209-26 | 1-5/8" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-3/16" | 1.720" | 0.374" | 2-1/2" | 1/2" | SA209-26 | PF209 | 3.74 |
| SAPF209-27 | 1-11/16" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-3/16" | 1.720" | 0.374" | 2-1/2" | 1/2" | SA209-27 | PF209 | 3.74 |
| SAPF209-28 | 1-3/4" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-3/16" | 1.720" | 0.374" | 2-1/2" | 1/2" | SA209-28 | PF209 | 3.74 |
| SAPF210 | 50mm | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.720" | 0.394" | 2-3/4" | 1/2" | SA210 | PF210 | 4.40 |
| SAPF210-30 | 1-7/8" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.720" | 0.394" | 2-3/4" | 1/2" | SA210-30 | PF210 | 4.40 |
| SAPF210-31 | 1-15/16" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.720" | 0.394" | 2-3/4" | 1/2" | SA210-31 | PF210 | 4.40 |
| SAPF210-32 | 2" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.720" | 0.394" | 2-3/4" | 1/2" | SA210-32 | PF210 | 4.40 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (G) | Bolt Size | (D) | Hole Width |
|---|---|---|---|---|---|---|---|---|
| PF208 | 1-1/2" to 1-9/16" | 3-9/16" | 5-13/16" | 13/16" | 0.134" | 1/2" | 4-11/16" | 17/32" |
| PF209 | 1-5/8" to 1-3/4" | 3-13/16" | 5-7/8" | 7/8" | 0.134" | 1/2" | 4-3/4" | 17/32" |
| PF210 | 1-13/16" to 2" | 4" | 6-1/8" | 7/8" | 0.149" | 1/2" | 5" | 17/32" |
| PF211 | 2" to 2-3/16" | 4-7/16" | 6-9/16" | 15/16" | 0.149" | 1/2" | 5-7/16" | 17/32" |
SBPF200G four-bolt stamped steel flange bearings are designed for light-duty applications and utilize an eccentric locking collar for securing onto a shaft. These bearings also have a grease zerk for re-lubing the bearing. Their bore size ranges from 40mm to 2-3/16"; the below size chart shows standard SBPF200G bearing sizes.
| Bearing Part # | Bearing I.D. | (a) | (e) | (g) | (c) | (s) | (f) | (Bi) | (n) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SBPF208G | 40mm | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.344" | 0.354" | 1/2" | SB208 | PF208G | 2.50 |
| SBPF208-24G | 1-1/2" | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.344" | 0.354" | 1/2" | SB208-24 | PF208G | 2.50 |
| SBPF208-25G | 1-9/16" | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.344" | 0.354" | 1/2" | SB208-25 | PF208G | 2.50 |
| SBPF209G | 45mm | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-13/16" | 1.625" | 0.374" | 1/2" | SB209 | PF209G | 3.05 |
| SBPF209-26G | 1-5/8" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-13/16" | 1.625" | 0.374" | 1/2" | SB209-26 | PF209G | 3.05 |
| SBPF209-27G | 1-11/16" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-13/16" | 1.625" | 0.374" | 1/2" | SB209-27 | PF209G | 3.05 |
| SBPF209-28G | 1-3/4" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-13/16" | 1.625" | 0.374" | 1/2" | SB209-28 | PF209G | 3.05 |
| SBPF210G | 50mm | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.688" | 0.394" | 1/2" | SB210 | PF210G | 3.30 |
| SBPF210-30G | 1-7/8" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.688" | 0.394" | 1/2" | SB210-30 | PF210G | 3.30 |
| SBPF210-31G | 1-15/16" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.688" | 0.394" | 1/2" | SB210-31 | PF210G | 3.30 |
| SBPF210-32G | 2" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.688" | 0.394" | 1/2" | SB210-32 | PF210G | 3.30 |
| SBPF211G | 55mm | 6-9/16" | 5-7/16" | 11/64" | 7/8" | 1/2" | 4-7/16" | 1.750" | 0.469" | 1/2" | SB211 | PF211G | 4.40 |
| SBPF211-32G | 2" | 6-9/16" | 5-7/16" | 11/64" | 7/8" | 1/2" | 4-7/16" | 1.750" | 0.469" | 1/2" | SB211-32 | PF211G | 4.40 |
| SBPF211-34G | 2-1/8" | 6-9/16" | 5-7/16" | 11/64" | 7/8" | 1/2" | 4-7/16" | 1.750" | 0.469" | 1/2" | SB211-34 | PF211G | 4.40 |
| SBPF211-35G | 2-3/16" | 6-9/16" | 5-7/16" | 11/64" | 7/8" | 1/2" | 4-7/16" | 1.750" | 0.469" | 1/2" | SB211-35 | PF211G | 4.40 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (G) | Bolt Size | (D) | Hole Width (E) |
|---|---|---|---|---|---|---|---|---|
| PF208G | 1-1/2" to 1-9/16" | 3-9/16" | 5-13/16" | 1-1/4" | 0.149" | 1/2" | 4-11/16" | 17/32" |
| PF209G | 1-5/8" to 1-3/4" | 3-13/16" | 5-7/8" | 1-1/4" | 0.149" | 1/2" | 4-3/4" | 17/32" |
| PF210G | 1-13/16" to 1-15/16" | 4" | 6-1/8" | 1" | 0.164" | 1/2" | 5" | 17/32" |
| PF211G | 2" to 2-3/16" | 4-7/16" | 6-9/16" | 1-5/16" | 0.164" | 1/2" | 5-7/16" | 17/32" |
SA
PF200G four-bolt stamped steel flange bearings are designed for light-duty applications and utilize an eccentric locking collar for securing onto a shaft. These bearings also have a grease zerk for re-lubing the bearing. Their bore size ranges from 40mm to 2-3/16"; the below size chart shows standard SAPF200G bearing sizes.
SBPF200G Stamped Steel Flange Housings
Note: if you don't see the bearing you need, please contact us.
| Bearing Part # | Bearing I.D. | (a) | (e) | (g) | (c) | (s) | (f) | (L) | (n) | (W) | Bolt Size | Insert Bearing # | Housing # | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SAPF208G | 40mm | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.720" | 0.354" | 2-3/8" | 1/2" | SA208 | PF208G | 2.85 |
| SAPF208-24G | 1-1/2" | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.720" | 0.354" | 2-3/8" | 1/2" | SA208-24 | PF208G | 2.85 |
| SAPF208-25G | 1-9/16" | 5-13/16" | 4-11/16" | 9/64" | 13/16" | 1/2" | 3-35/64" | 1.720" | 0.354" | 2-3/8" | 1/2" | SA208-25 | PF208G | 2.85 |
| SAPF209G | 45mm | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-13/16" | 1.720" | 0.374" | 2-1/2" | 1/2" | SA209 | PF209G | 3.20 |
| SAPF209-26G | 1-5/8" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-13/16" | 1.720" | 0.374" | 2-1/2" | 1/2" | SA209-26 | PF209G | 3.20 |
| SAPF209-27G | 1-11/16" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-13/16" | 1.720" | 0.374" | 2-1/2" | 1/2" | SA209-27 | PF209G | 3.20 |
| SAPF209-28G | 1-3/4" | 5-55/64" | 4-49/64" | 9/64" | 7/8" | 1/2" | 3-13/16" | 1.720" | 0.374" | 2-1/2" | 1/2" | SA209-28 | PF209G | 3.20 |
| SAPF210G | 50mm | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.720" | 0.394" | 2-3/4" | 1/2" | SA210 | PF210G | 3.50 |
| SAPF210-30G | 1-7/8" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.720" | 0.394" | 2-3/4" | 1/2" | SA210-30 | PF210G | 3.50 |
| SAPF210-31G | 1-15/16" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.720" | 0.394" | 2-3/4" | 1/2" | SA210-31 | PF210G | 3.50 |
| SAPF210-32G | 2" | 6-3/16" | 5" | 5/32" | 7/8" | 1/2" | 4-1/64" | 1.720" | 0.394" | 2-3/4" | 1/2" | SA210-32 | PF210G | 3.50 |
| SAPF211G | 55mm | 6-9/16" | 5-7/16" | 11/64" | 7/8" | 1/2" | 4-7/16" | 1.720" | 0.469" | 3" | 1/2" | SA211 | PF211G | 4.70 |
| SAPF211-32G | 2" | 6-9/16" | 5-7/16" | 11/64" | 7/8" | 1/2" | 4-7/16" | 1.720" | 0.469" | 3" | 1/2" | SA211-32 | PF211G | 4.70 |
| SAPF211-34G | 2-1/8" | 6-9/16" | 5-7/16" | 11/64" | 7/8" | 1/2" | 4-7/16" | 1.720" | 0.469" | 3" | 1/2" | SA211-34 | PF211G | 4.70 |
| SAPF211-35G | 2-3/16" | 6-9/16" | 5-7/16" | 11/64" | 7/8" | 1/2" | 4-7/16" | 1.720" | 0.469" | 3" | 1/2" | SA211-35 | PF211G | 4.70 |
| Housing Part # | Shaft Sizes | (A) | (B) | (C) | (G) | Bolt Size | (D) | Hole Width (E) |
|---|---|---|---|---|---|---|---|---|
| PF208G | 1-1/2" to 1-9/16" | 3-9/16" | 5-13/16" | 1-1/4" | 0.149" | 1/2" | 4-11/16" | 17/32" |
| PF209G | 1-5/8" to 1-3/4" | 3-13/16" | 5-7/8" | 1-1/4" | 0.149" | 1/2" | 4-3/4" | 17/32" |
| PF210G | 1-13/16" to 1-15/16" | 4" | 6-1/8" | 1" | 0.164" | 1/2" | 5" | 17/32" |
| PF211G | 2" to 2-3/16" | 4-7/16" | 6-9/16" | 1-5/16" | 0.164" | 1/2" | 5-7/16" | 17/32" |
