Stainless Steel Gear Racks

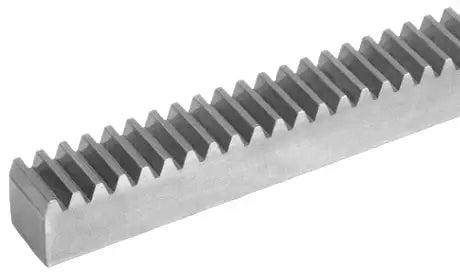

Stainless gear racks are manufactured from high-quality AISI 303 grade stainless steel (1.4305) and can operate in harsh, corrosive, abrasive, and food-grade environments. Our stainless gear racks are precisely manufactured per DIN 687/ 3972 standards with a 20° pressure angle straight tooth design. Percicley straightened, these gear racks provide optimal performance and longevity! We standardly supply these from Modules 1 - 4 in lengths ranging from 250mm to 2,000mm, but alternate lengths and pitches are available upon request. We also supply a range of stainless steel spur gears. For additional information or to get a quote, contact our customer service team, and we will gladly assist you!
Stainless Gear Rack Dimensions
| Part # | Module | Dimension (b) | Dimension (H) | Dimension (h) | Nomial Length (L) | Effective Length | Weight |
|---|---|---|---|---|---|---|---|
| 22499603 | 1 | 10mm | 10mm | 9.0mm | 250mm | -- | 0.17Kg |
| 22499605 | 1 | 10mm | 10mm | 9.0mm | 500mm | -- | 0.34Kg |
| 22499608 | 1 | 10mm | 10mm | 9.0mm | 1000mm | -- | 0.68Kg |
| 22499609 | 1 | 15mm | 15mm | 14.0mm | 250mm | -- | 0.41Kg |
| 22499610 | 1 | 15mm | 15mm | 14.0mm | 500mm | -- | 0.81Kg |
| 22499612 | 1 | 15mm | 15mm | 14.0mm | 1000mm | -- | 1.61Kg |
| 22899602 | 1.5 | 15mm | 15mm | 13.5mm | 250mm | -- | 0.39Kg |
| 22899603 | 1.5 | 15mm | 15mm | 13.5mm | 500mm | -- | 0.77Kg |
| 22899605 | 1.5 | 15mm | 15mm | 13.5mm | 1000mm | -- | 1.55Kg |
| 22899607 | 1.5 | 15mm | 15mm | 13.5mm | 1500mm | -- | 2.33Kg |
| 24199602 | 2 | 20mm | 20mm | 18.0mm | 250mm | -- | 0.69Kg |
| 24199603 | 2 | 20mm | 20mm | 18.0mm | 500mm | -- | 1.38Kg |
| 24199605 | 2 | 20mm | 20mm | 18.0mm | 1000mm | 1005,0-1 | 2.77Kg |
| 24199607 | 2 | 20mm | 20mm | 18.0mm | 1500mm | 1501,0-1 | 4.12Kg |
| 24199609 | 2 | 20mm | 20mm | 18.0mm | 2000mm | 2004,0-1,5 | 5.50Kg |
| 24299602 | 2.5 | 25mm | 25mm | 22.5mm | 250mm | -- | 1.09Kg |
| 24299603 | 2.5 | 25mm | 25mm | 22.5mm | 500mm | -- | 2.17Kg |
| 24299605 | 2.5 | 25mm | 25mm | 22.5mm | 1000mm | 1005,1-1 | 4.31Kg |
| 24299607 | 2.5 | 25mm | 25mm | 22.5mm | 1500mm | 1507,5-1 | 6.46Kg |
| 24299609 | 2.5 | 25mm | 25mm | 22.5mm | 2000mm | 2002,5-1,5 | 8.61Kg |
| 24299603 | 3 | 30mm | 30mm | 27.0mm | 500mm | -- | 3.17Kg |
| 24399605 | 3 | 30mm | 30mm | 27.0mm | 1000mm | 1008,0-1,5 | 6.27Kg |
| 24399607 | 3 | 30mm | 30mm | 27.0mm | 1500mm | 1507,5, -1,5 | 9.33Kg |
| 24399609 | 3 | 30mm | 30mm | 27.0mm | 2000mm | 2007,0-1,5 | 12.43Kg |
| 24499603 | 4 | 40mm | 40mm | 36.0mm | 500mm | -- | 5.55Kg |
| 24499605 | 4 | 40mm | 40mm | 36.0mm | 1000mm | 1005,0-1,5 | 11.14Kg |
| 24499607 | 4 | 40mm | 40mm | 36.0mm | 1500mm | 1507,5-1 | 16.50Kg |
| 24499609 | 4 | 40mm | 40mm | 36.0mm | 2000mm | 2010,0-1,5 | 22.50Kg |
Production tolerances for dimensions h and H are -0.2mm for modules 1 - 2.
Production tolerances for dimensions h and H are -0.3mm for modules 2.5 - 4.
