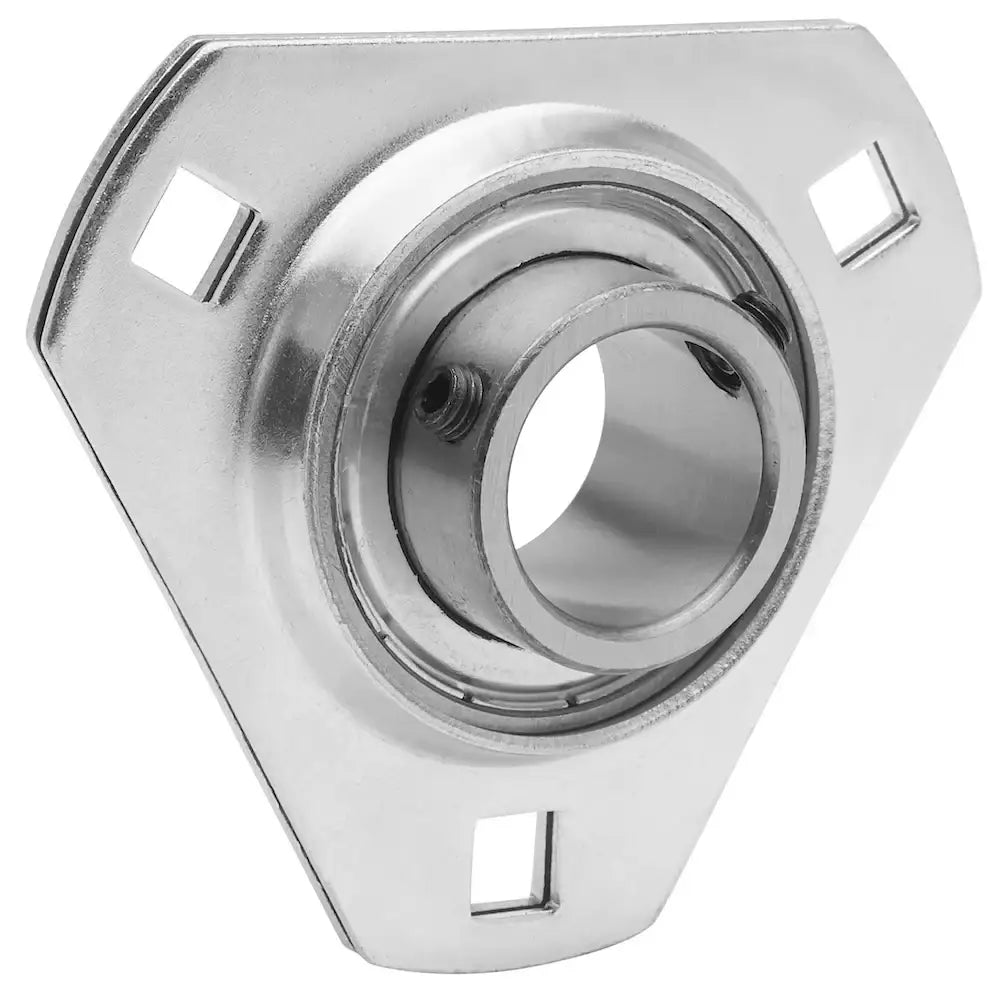

SBPFT206-19 Stamped Steel 3-Bolt Flange Bearing | 1-3/16" Bearing

SBPFT206-19 stamped steel bearing is a 3-bolt triangle flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 1-3/16" insert bearing that utilizes set screws for securing onto a shaft. SBPFT206-19 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SBPFT206-19 1-3/16" bearing has incredible holding power and stability. Additionally, our SBPFT206-19 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SBPFT206-19 bearing, contact our customer support team, and we will be happy to assist you!

SBPFT206-19 Bearing Dimensions

• Part #: SBPFT206-19
• Bearing I.D: 1-3/16"
• Dimension (a): 3-11/16"
• Dimension (e): 3-35/64"
• Dimension (h): 1-1/2"
• Dimension (s): 13/32"
• Dimension (c): 21/32"
• Dimension (g): 7/64"
• Dimension (b): 1-1/8"
• Dimension (f): 2-51/64"
• Dimension (Bi): 1.181"
• Dimension (n): 0.315"
• Bolt Size: 3/8"
• Insert Bearing #: SB206-19
• Housing #: PFT206
• Weight: 0.88 LBS
