#240 Roller Chain
ANSI 240 chain is the largest size in the standard chain sizes made to American National Standards Insitute B29.1 standards. 240 roller chain is manufactured for heavy-duty equipment such as earthmoving, mixers, mining, and more! Our 240 roller chains are designed and manufactured with special features depending on the series selected such as solid bushings, quad-staked pins, through-hardened pins, shot-peened, pre-loaded, and more. We also stock super series 240 chains, anti-corrosive series, sealed 240 roller chains, API Certified, and self-lubricating.#240 Roller Chain Dimensions
|
Size
|
Pitch (P)
|
Roller Width (W)
|
Roller Diameter (D)
|
Overall Width (A)
|
Plate Height (H)
|
Plate Thickness (T)
|
Pin Diameter (E)
|
Weight (Per Ft)
|
|---|---|---|---|---|---|---|---|---|
| 240-1 | 3.00" | 1.875" | 1.875" | 4.125" | 2.850" | 0.375" | 0.938" | 16.542 LBS |
| 240-2 | 3.00" | 1.875" | 1.875" | 7.585" | 2.850" | 0.375" | 0.938" | 32.683 LBS |

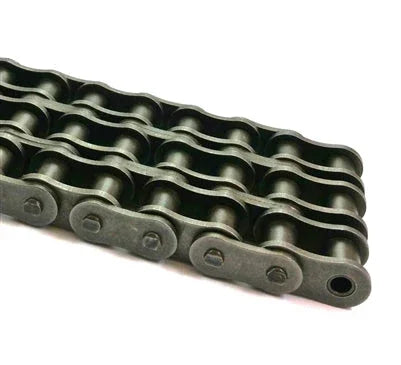

| 240-3 | 3.00" | 1.875" | 1.875" | 11.044" | 2.850" | 0.375" | 0.938" | 48.758 LBS |

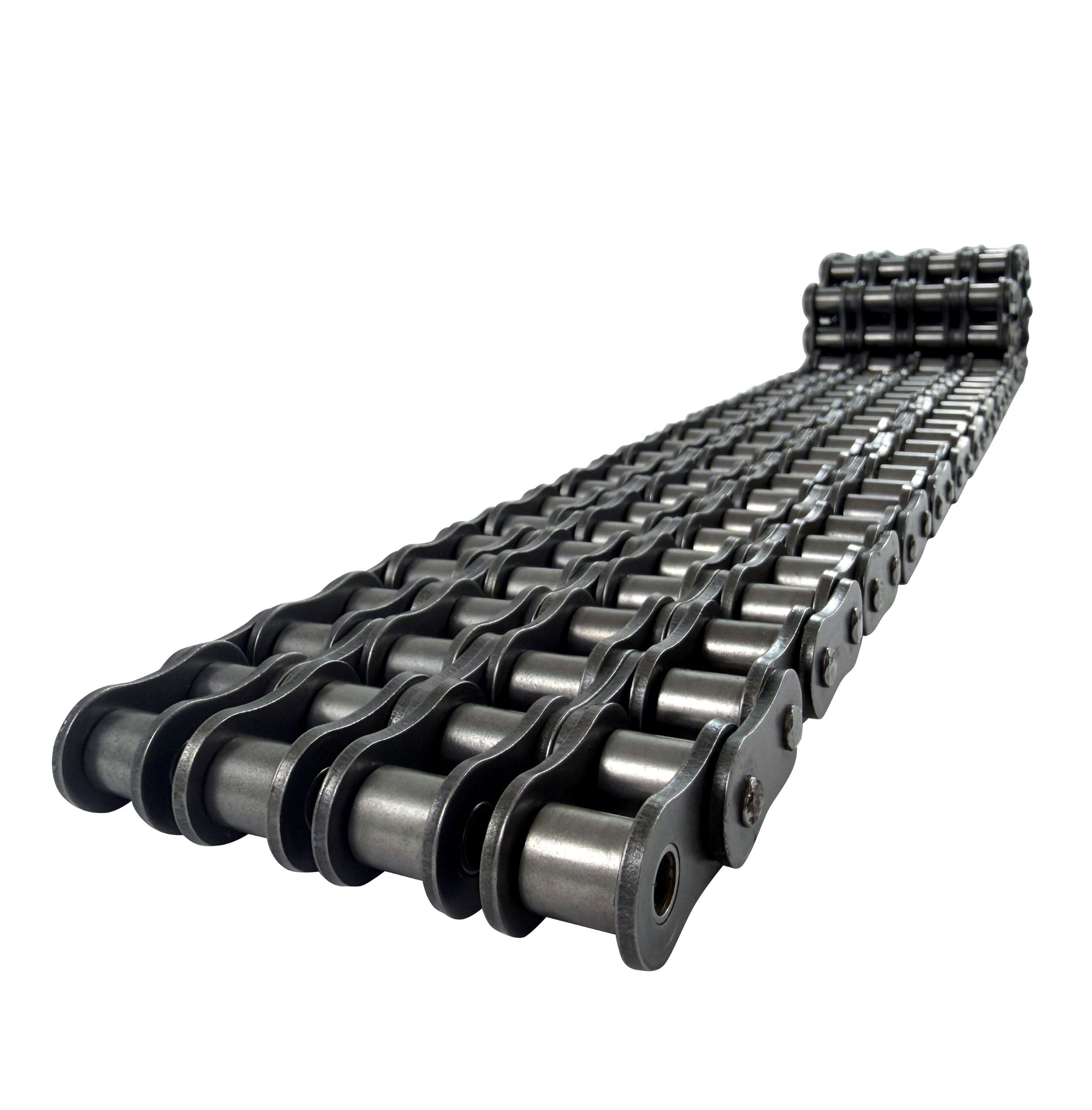

| 240-4 | 3.00" | 1.875" | 1.875" | 14.503" | 2.850" | 0.375" | 0.938" | 64.832 LBS |
| 240-5 | 3.00" | 1.875" | 1.875" | 17.962" | 2.850" | 0.375" | 0.938" | 89.907 LBS |
| 240-6 | 3.00" | 1.875" | 1.875" | 21.422" | 2.850" | 0.375" | 0.938" | 96.848 LBS |
