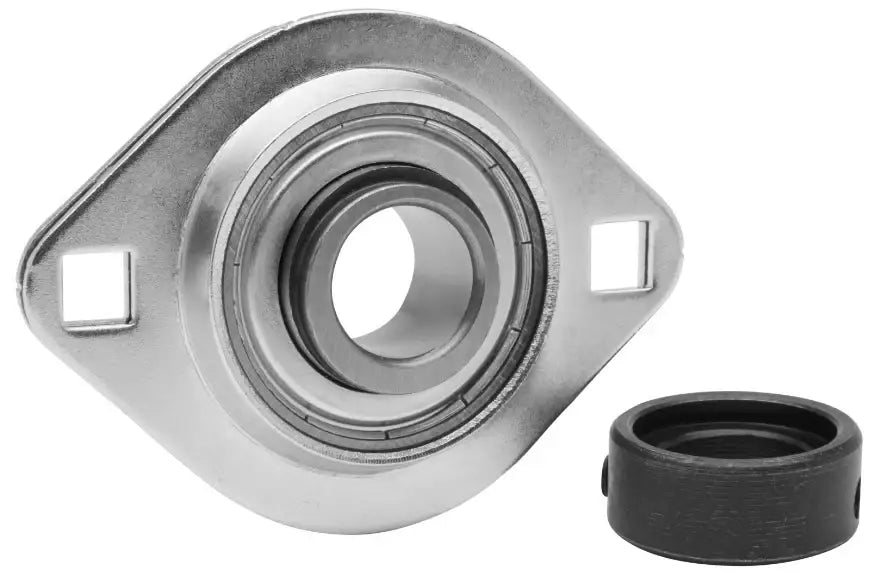

CSA728MFM202-10 Stamped Steel 2-Bolt Flange Bearing | Vibration Damping

CSA728MFM202-10 stamped steel bearing is a 2-bolt vibration-damping flush mount flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 5/8" insert bearing that utilises an eccentric locking collar for securing onto a shaft. The bearing unit features a rubber cushion made from high-quality rubber for decreasing vibration. CSA728MFM202-10 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the two-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing two mounting holes, the CSA728MFM202-10 5/8" bearing has incredible holding power, stability, and mounting position flexibility. Additionally, our CSA728MFM202-10 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our flush mount CSA728MFM202-10 bearing, contact our customer support team, and we will be happy to assist you!

CSA728MFM202-10 Bearing Dimensions

• Bearing Unit Part #: CSA728MFM202-10
• Bearing I.D: 5/8"
• Dimension (a): 4"
• Dimension (e): 3"
• Dimension (b): 2"
• Dimension (D): 29/64"
• Dimension (E): 3/4"
• Dimension (L): 1.126"
• Bolt Size: 1/4"
• Bearing Part #: CSA202-10
• Housing With Rubber Insert Part #: 728-2-MFM
• Weight: 0.30 LBS
