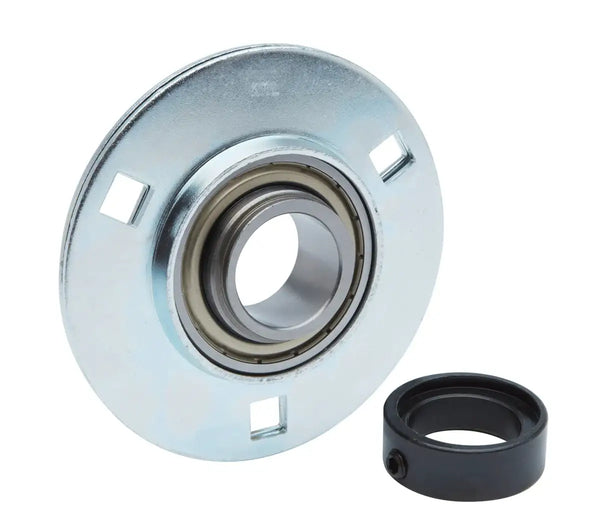

SAPF201-8 Stamped Steel 4-Bolt Flange Bearing | 1/2" Bearing

SAPF201-8 stamped steel bearing is a 3-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 1/2" insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPF201-8 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SAPF201-8 1/2" bearing has incredible holding power and stability. Additionally, our SAPF201-8 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SAPF201-8 bearing, contact our customer support team, and we will be happy to assist you!

SAPF201-8 Bearing Dimensions

• Part #: SAPF201-8
• Bearing ID: 1/2"
• Dimension (a): 3-3/16"
• Dimension (e): 2-33/64"
• Dimension (g): 5/64"
• Dimension (c): 9/16"
• Dimension (s): 9/32"
• Dimension (f): 1-59/64"
• Dimension (L): 1.126"
• Dimension (n): 0.236"
• Dimension (W): 1-1/8"
• Bolt Size: 1/4"
• Number of Bolt Holes: 3
• Insert Bearing #: SA201-8

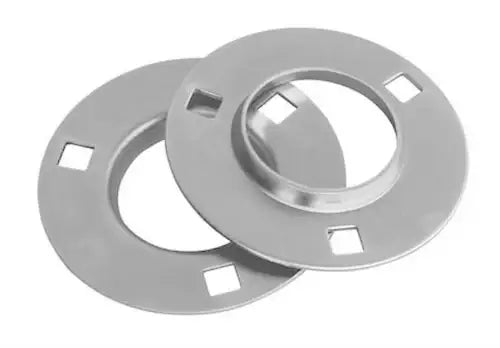

• Housing #: PF203
• Weight: 0.68 LBS
