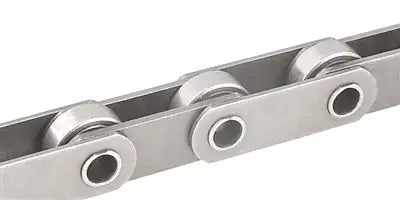

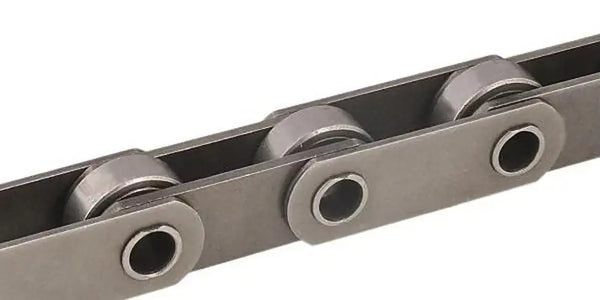

Hollow Pin Conveyor Chain
Hollow pin conveyor chains are one of the most common roller chain types used in the world. The hollow-pin design creates a chain that is ultra versatile! Hollow pin conveyor chains are found in material elevators, ovens, automobile manufacturing, packaging, and many more applications.
Typically hollow pin conveyor chains have straight side-plates like the example connecting link above. This is because the flat surface allows for more material to be conveyed at once than a curved or "dog-bone" style side-plate. We stock a full line of hollow pin conveyor chains ranging from ANSI and ISO Metric sizes as well as stainless and carbon steel materials. We also stock the "over-sized roller" style hollow pin conveyor chains.
Please note that we also custom manufacture hollow pin conveyor chains, so if you don't see the specific size or style you need please contact us and we will get it quoted.
ANSI Hollow Pin Conveyor Chain
The below charts show out standard in-stock hollow pin conveyor chain sizes. For additional information or to get a quote please contact us and we will be happy to assist you!
|
Size
|
Pitch (P)
|
Roller Diameter (R)
|
Inside Width (W)
|
Pin Diameter (D)
|
Pin Inside Diameter (I)
|
Pin Length (G)
|
Pin Length (N)
|
Side Plate Height (H)
|
Side Plate Thickness (T)
|
Chain Weight (Per Ft)
|
|---|---|---|---|---|---|---|---|---|---|---|
| C2040HP | 1.000" | 0.312" | 0.313" | 0.222" | 0.159" | 0.330" | 0.360" | 0.472" | 0.060" | 0.31 LBS |
| C2042HP | 1.000" | 0.625" | 0.313" | 0.222" | 0.159" | 0.330" | 0.360" | 0.472" | 0.060" | 0.54 LBS |
| C2050HP | 1.250" | 0.400" | 0.375" | 0.279" | 0.202" | 0.400" | 0.440" | 0.591" | 0.080" | 0.51 LBS |
| C2052HP | 1.250" | 0.750" | 0.375" | 0.279" | 0.202" | 0.400" | 0.440" | 0.591" | 0.080" | 0.84 LBS |
| C2060HP | 1.500" | 0.469" | 0.500" | 0.326" | 0.238" | 0.510" | 0.560" | 0.713" | 0.094" | 0.75 LBS |
| C2062HP | 1.500" | 0.875" | 0.500" | 0.326" | 0.238" | 0.510" | 0.560" | 0.713" | 0.094" | 1.20 LBS |
| C2080HP | 2.000" | 0.625" | 0.625" | 0.446" | 0.318" | 0.640" | 0.710" | 0.949" | 0.126" | 1.33 LBS |
| C2082HP | 2.000" | 1.125" | 0.625" | 0.446" | 0.318" | 0.640" | 0.710" | 0.949" | 0.126" | 2.13 LBS |
ANSI Stainless Steel Hollow Pin Conveyor Chain
These stainless steel hollow pin roller chains are manufactured in accordance with ANSI B29.1 standards and are manufactured using high-quality 304-grade stainless steel. These chains are used in wash-down, food-grade, high-temperature, and extremely corrosive applications. We can also supply 316-grade stainless steel hollow pin chains upon request.
|
Size
|
Pitch (P)
|
Roller Diameter (R)
|
Inside Width (W)
|
Pin Diameter (D)
|
Pin Inside Diameter (I)
|
Pin Length (G)
|
Pin Length (N)
|
Side Plate Height (H)
|
Side Plate Thickness (T)
|
Chain Weight (Per Ft)
|
|---|---|---|---|---|---|---|---|---|---|---|
| C2040SSHP | 1.000" | 0.312" | 0.313" | 0.222" | 0.159" | 0.330" | 0.360" | 0.472" | 0.060" | 0.31 LBS |
| C2042SSHP | 1.000" | 0.625" | 0.313" | 0.222" | 0.159" | 0.330" | 0.360" | 0.472" | 0.060" | 0.54 LBS |
| C2050SSHP | 1.250" | 0.400" | 0.375" | 0.279" | 0.202" | 0.400" | 0.440" | 0.591" | 0.080" | 0.51 LBS |
| C2052SSHP | 1.250" | 0.750" | 0.375" | 0.279" | 0.202" | 0.400" | 0.440" | 0.591" | 0.080" | 0.84 LBS |
| C2060SSHP | 1.500" | 0.469" | 0.500" | 0.326" | 0.238" | 0.510" | 0.560" | 0.713" | 0.094" | 0.75 LBS |
| C2062SSHP | 1.500" | 0.875" | 0.500" | 0.326" | 0.238" | 0.510" | 0.560" | 0.713" | 0.094" | 1.20 LBS |
| C2080SSHP | 2.000" | 0.625" | 0.625" | 0.446" | 0.318" | 0.640" | 0.710" | 0.949" | 0.126" | 1.33 LBS |
| C2082SSHP | 2.000" | 1.125" | 0.625" | 0.446" | 0.318" | 0.640" | 0.710" | 0.949" | 0.126" | 2.13 LBS |
Metric Hollow Pin Conveyor Chain
|
Size
|
Pitch (P)
|
Roller Diameter (Dr)
|
Inside Width (W)
|
Plate Height (Hi)
|
Plate Thickness (S)
|
Pin Outside Diameter (Dp)
|
Pin Inside Diameter (Df)
|
Pin Width (A1)
|
Overall Width (B)
|
Chain Weight (Per Meter)
|
|---|---|---|---|---|---|---|---|---|---|---|
| C2048 | 25.40mm | 7.95mm | 7.85mm | 12.07mm | 1.53mm | 5.56mm | 4.01mm | 16.80mm | 21.20mm | 0.40kG |
| SSC2048 | 25.40mm | 7.95mm | 7.85mm | 12.07mm | 1.53mm | 5.56mm | 4.01mm | 16.80mm | 21.20mm | 0.40kG |
| C2058 | 31.75mm | 10.16mm | 9.40mm | 14.85mm | 2.00mm | 7.03mm | 5.13mm | 20.50mm | 25.30mm | 0.70kG |
| SSC2058 | 31.75mm | 10.16mm | 9.40mm | 14.85mm | 2.00mm | 7.03mm | 5.13mm | 20.50mm | 25.30mm | 0.70kG |
| C2068 | 38.10mm | 11.91mm | 12.57mm | 18.00mm | 2.30mm | 8.35mm | 6.05mm | 24.00mm | 29.60mm | 1.11kG |
| SSC2068 | 38.10mm | 11.91mm | 12.57mm | 18.00mm | 2.30mm | 8.35mm | 6.05mm | 24.00mm | 29.60mm | 1.11kG |
| C2088 | 50.80mm | 15.88mm | 15.75mm | 24.00mm | 3.15mm | 11.18mm | 8.05mm | 31.30mm | 37.50mm | 2.00kG |
| C2088H | 50.80mm | 15.88mm | 15.75mm | 24.00mm | 3.80mm | 11.18mm | 8.05mm | 34.40mm | 40.40mm | 2.33kG |
| SSC2088H | 50.80mm | 15.88mm | 15.75mm | 24.00mm | 3.80mm | 11.18mm | 8.05mm | 34.40mm | 40.40mm | 2.33kG |

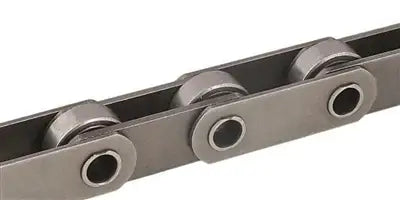

Metric Oversized-Roller Hollow Pin Chain
|
Size
|
Pitch (P)
|
Roller Diameter (Dr)
|
Inside Width (W)
|
Plate Height (Hi)
|
Plate Thickness (S)
|
Pin Outside Diameter (Dp)
|
Pin Inside Diameter (Df)
|
Pin Width (A1)
|
Overall Width (B)
|
Chain Weight (Per Meter)
|
|---|---|---|---|---|---|---|---|---|---|---|
| C2049 | 25.40mm | 15.88mm | 7.85mm | 12.07mm | 1.53mm | 5.56mm | 4.01mm | 16.80mm | 21.20mm | 0.76kG |
| SSC2049 | 25.40mm | 15.88mm | 7.85mm | 12.07mm | 1.53mm | 5.56mm | 4.01mm | 16.80mm | 21.20mm | 0.76kG |
| C2059 | 31.75mm | 19.05mm | 9.40mm | 14.85mm | 2.00mm | 7.03mm | 5.13mm | 20.50mm | 25.30mm | 0.93kG |
| SSC2059 | 31.75mm | 19.05mm | 9.40mm | 14.85mm | 2.00mm | 7.03mm | 5.13mm | 20.50mm | 25.30mm | 0.93kG |
| SSC2059D | 31.75mm | 19.05mm | 9.40mm | 14.85mm | 2.00mm | 7.03mm | 5.13mm | 20.50mm | 25.30mm | 0.96kG |
| C2069 | 38.10mm | 22.22mm | 12.57mm | 18.00mm | 2.30mm | 8.35mm | 6.05mm | 24.00mm | 29.60mm | 1.78kG |
| SSC2069 | 38.10mm | 22.22mm | 12.57mm | 18.00mm | 2.30mm | 8.35mm | 6.05mm | 24.00mm | 29.60mm | 1.78kG |
| C2089H | 50.80mm | 28.59mm | 15.75mm | 24.00mm | 3.80mm | 11.18mm | 8.05mm | 34.40mm | 40.40mm | 3.33kG |
| SSC2089H | 50.80mm | 28.59mm | 15.75mm | 24.00mm | 3.80mm | 11.18mm | 8.05mm | 34.40mm | 40.40mm | 3.33kG |
MC Hollow Pin Conveyor Chain
MC Type Hollow Pin chains are manufactured in accordance to ISO and DIN dimensional specifications. These chains are made form high-strength steel and utilize a hollow pin design that makes them versatile and effective in many conveying options. More Specifically, MC chains are commonly used for pan conveyors used for cement clinker transport. For more information or to get a quote please contact us and we will be happy to assist you.
|
Size
|
Pitch (P)
|
Working Load (kN)
|
Working Load With Heat-Treated Pins (kN)
|
Roller Style
|
Roller Style
|
Flange Thickness (G)
|
Pin Outside Diameter (D6)
|
Hollow Pin Inside Diameter (D7)
|
Bushing Diameter (D5)
|
Between Sidebars (L)
|
Sidebar Thickness (S)
|
Sidebar Height (H)
|
Weight (kG/ m)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MC28A50 | 50mm | 28 | 40 | A | 17mm | -- | 13mm | 8.2mm | 17mm | 20mm | 3mm | mm | 25 |
| MC28B50 | 50mm | 28 | 40 | B | 25mm | -- | 13mm | 8.2mm | 17mm | 20mm | 3mm | mm | 25 |
| MC28C50 | 50mm | 28 | 40 | C | 36mm | -- | 13mm | 8.2mm | 17mm | 20mm | 3mm | mm | 25 |
| MC28D50 | 50mm | 28 | 40 | D | 45mm | 4.5mm | 13mm | 8.2mm | 17mm | 20mm | 3mm | mm | 25 |
| MC28A63 | 63mm | 28 | 40 | A | 17mm | -- | 13mm | 8.2mm | 17mm | 20mm | 3mm | mm | 25 |
| MC28B63 | 63mm | 28 | 40 | B | 25mm | -- | 13mm | 8.2mm | 17mm | 20mm | 3mm | mm | 25 |
| MC28C63 | 63mm | 28 | 40 | C | 36mm | -- | 13mm | 8.2mm | 17mm | 20mm | 3mm | mm | 25 |
| MC28D63 | 63mm | 28 | 40 | D | 45mm | 4.5mm | 13mm | 8.2mm | 17mm | 20mm | 3mm | mm | 25 |
| MC28A80 | 80mm | 28 | 40 | A | 17mm | -- | 13mm | 8.2mm | 17mm | 20mm | 3mm | mm | 25 |
| MC28B80 | 80mm | 28 | 40 | B | 25mm | -- | 13mm | 8.2mm | 17mm | 20mm | 3mm | mm | 25 |
| MC28C80 | 80mm | 28 | 40 | C | 36mm | -- | 13mm | 8.2mm | 17mm | 20mm | 3mm | mm | 25 |
| MC28D80 | 80mm | 28 | 40 | D | 45mm | 4.5mm | 13mm | 8.2mm | 17mm | 20mm | 3mm | mm | 25 |
| MC28A100 | 100mm | 28 | 40 | A | 17mm | -- | 13mm | 8.2mm | 17mm | 20mm | 3mm | mm | 25 |
| MC28B100 | 100mm | 28 | 40 | B | 25mm | -- | 13mm | 8.2mm | 17mm | 20mm | 3mm | mm | 25 |
| MC28C100 | 100mm | 28 | 40 | C | 36mm | -- | 13mm | 8.2mm | 17mm | 20mm | 3mm | mm | 25 |
| MC28D100 | 100mm | 28 | 40 | D | 45mm | 4.5mm | 13mm | 8.2mm | 17mm | 20mm | 3mm | mm | 25 |
| MC28A125 | 125mm | 28 | 40 | A | 17mm | -- | 13mm | 8.2mm | 17mm | 20mm | 3mm | mm | 25 |
| MC28B125 | 125mm | 28 | 40 | B | 25mm | -- | 13mm | 8.2mm | 17mm | 20mm | 3mm | mm | 25 |
| MC28C125 | 125mm | 28 | 40 | C | 36mm | -- | 13mm | 8.2mm | 17mm | 20mm | 3mm | mm | 25 |
| MC28D125 | 125mm | 28 | 40 | D | 45mm | 4.5mm | 13mm | 8.2mm | 17mm | 20mm | 3mm | mm | 25 |
| MC56A63 | 63mm | 56 | 90 | A | 21mm | -- | 15.5mm | 10.2mm | 21mm | 24mm | 4mm | mm | 35 |
| MC56B63 | 63mm | 56 | 90 | B | 30mm | -- | 15.5mm | 10.2mm | 21mm | 24mm | 4mm | mm | 35 |
| MC56C63 | 63mm | 56 | 90 | C | 50mm | -- | 15.5mm | 10.2mm | 21mm | 24mm | 4mm | mm | 35 |
| MC56D63 | 63mm | 56 | 90 | D | 60mm | 7mm | 15.5mm | 10.2mm | 21mm | 24mm | 4mm | mm | 35 |
| MC56A80 | 80mm | 56 | 90 | A | 21mm | -- | 15.5mm | 10.2mm | 21mm | 24mm | 4mm | mm | 35 |
| MC56B80 | 80mm | 56 | 90 | B | 30mm | -- | 15.5mm | 10.2mm | 21mm | 24mm | 4mm | mm | 35 |
| MC56C80 | 80mm | 56 | 90 | C | 50mm | -- | 15.5mm | 10.2mm | 21mm | 24mm | 4mm | mm | 35 |
| MC56D80 | 80mm | 56 | 90 | D | 60mm | 7mm | 15.5mm | 10.2mm | 21mm | 24mm | 4mm | mm | 35 |
| MC56A100 | 100mm | 56 | 90 | A | 21mm | -- | 15.5mm | 10.2mm | 21mm | 24mm | 4mm | mm | 35 |
| MC56B100 | 100mm | 56 | 90 | B | 30mm | -- | 15.5mm | 10.2mm | 21mm | 24mm | 4mm | mm | 35 |
| MC56C100 | 100mm | 56 | 90 | C | 50mm | -- | 15.5mm | 10.2mm | 21mm | 24mm | 4mm | mm | 35 |
| MC56D100 | 100mm | 56 | 90 | D | 60mm | 7mm | 15.5mm | 10.2mm | 21mm | 24mm | 4mm | mm | 35 |
| MC56A125 | 125mm | 56 | 90 | A | 21mm | -- | 15.5mm | 10.2mm | 21mm | 24mm | 4mm | mm | 35 |
| MC56B125 | 125mm | 56 | 90 | B | 30mm | -- | 15.5mm | 10.2mm | 21mm | 24mm | 4mm | mm | 35 |
| MC56C125 | 125mm | 56 | 90 | C | 50mm | -- | 15.5mm | 10.2mm | 21mm | 24mm | 4mm | mm | 35 |
| MC56D125 | 125mm | 56 | 90 | D | 60mm | 7mm | 15.5mm | 10.2mm | 21mm | 24mm | 4mm | mm | 35 |
| MC56A160 | 160mm | 56 | 90 | A | 21mm | -- | 15.5mm | 10.2mm | 21mm | 24mm | 4mm | mm | 35 |
| MC56B160 | 160mm | 56 | 90 | B | 30mm | -- | 15.5mm | 10.2mm | 21mm | 24mm | 4mm | mm | 35 |
| MC56C160 | 160mm | 56 | 90 | C | 50mm | -- | 15.5mm | 10.2mm | 21mm | 24mm | 4mm | mm | 35 |
| MC56D160 | 160mm | 56 | 90 | D | 60mm | 7mm | 15.5mm | 10.2mm | 21mm | 24mm | 4mm | mm | 35 |
| MC112A80 | 80mm | 112 | 180 | A | 29mm | -- | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112B80 | 80mm | 112 | 180 | B | 42mm | -- | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112C80 | 80mm | 112 | 180 | C | 70mm | -- | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112D80 | 80mm | 112 | 180 | D | 85mm | 8.5mm | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112A100 | 100mm | 112 | 180 | A | 29mm | -- | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112B100 | 100mm | 112 | 180 | B | 42mm | -- | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112C100 | 100mm | 112 | 180 | C | 70mm | -- | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112D100 | 100mm | 112 | 180 | D | 85mm | 8.5mm | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112A125 | 125mm | 112 | 180 | A | 29mm | -- | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112B125 | 125mm | 112 | 180 | B | 42mm | -- | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112C125 | 125mm | 112 | 180 | C | 70mm | -- | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112D125 | 125mm | 112 | 180 | D | 85mm | 8.5mm | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112A160 | 160mm | 112 | 180 | A | 29mm | -- | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112B160 | 160mm | 112 | 180 | B | 42mm | -- | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112C160 | 160mm | 112 | 180 | C | 70mm | -- | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112D160 | 160mm | 112 | 180 | D | 85mm | 8.5mm | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112A200 | 200mm | 112 | 180 | A | 29mm | -- | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112B200 | 200mm | 112 | 180 | B | 42mm | -- | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112C200 | 200mm | 112 | 180 | C | 70mm | -- | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112D200 | 200mm | 112 | 180 | D | 85mm | 8.5mm | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112A250 | 250mm | 112 | 180 | A | 29mm | -- | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112B250 | 250mm | 112 | 180 | B | 42mm | -- | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112C250 | 250mm | 112 | 180 | C | 70mm | -- | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC112D250 | 250mm | 112 | 180 | D | 85mm | 8.5mm | 22mm | 14.3mm | 29mm | 32mm | 6mm | mm | 50 |
| MC224A125 | 125mm | 224 | 350 | A | 42mm | -- | 30mm | 20.5mm | 42mm | 43mm | 8mm | mm | 70 |
| MC224B125 | 125mm | 224 | 350 | B | 60mm | -- | 30mm | 20.5mm | 42mm | 43mm | 8mm | mm | 70 |
| MC224C125 | 125mm | 224 | 350 | C | 100mm | -- | 30mm | 20.5mm | 42mm | 43mm | 8mm | mm | 70 |
| MC224D125 | 125mm | 224 | 350 | D | 120mm | 10.5mm | 30mm | 20.5mm | 42mm | 43mm | 8mm | mm | 70 |
| MC224A160 | 160mm | 224 | 350 | A | 42mm | -- | 30mm | 20.5mm | 42mm | 43mm | 8mm | mm | 70 |
| MC224B160 | 160mm | 224 | 350 | B | 60mm | -- | 30mm | 20.5mm | 42mm | 43mm | 8mm | mm | 70 |
| MC224C160 | 160mm | 224 | 350 | C | 100mm | -- | 30mm | 20.5mm | 42mm | 43mm | 8mm | mm | 70 |
| MC224D160 | 160mm | 224 | 350 | D | 120mm | 10.5mm | 30mm | 20.5mm | 42mm | 43mm | 8mm | mm | 70 |
| MC224A200 | 200mm | 224 | 350 | A | 42mm | -- | 30mm | 20.5mm | 42mm | 43mm | 8mm | mm | 70 |
| MC224B200 | 200mm | 224 | 350 | B | 60mm | -- | 30mm | 20.5mm | 42mm | 43mm | 8mm | mm | 70 |
| MC224C200 | 200mm | 224 | 350 | C | 100mm | -- | 30mm | 20.5mm | 42mm | 43mm | 8mm | mm | 70 |
| MC224D200 | 200mm | 224 | 350 | D | 120mm | 10.5mm | 30mm | 20.5mm | 42mm | 43mm | 8mm | mm | 70 |
| MC224A250 | 250mm | 224 | 350 | A | 42mm | -- | 30mm | 20.5mm | 42mm | 43mm | 8mm | mm | 70 |
| MC224B250 | 250mm | 224 | 350 | B | 60mm | -- | 30mm | 20.5mm | 42mm | 43mm | 8mm | mm | 70 |
| MC224C250 | 250mm | 224 | 350 | C | 100mm | -- | 30mm | 20.5mm | 42mm | 43mm | 8mm | mm | 70 |
| MC224D250 | 250mm | 224 | 350 | D | 120mm | 10.5mm | 30mm | 20.5mm | 42mm | 43mm | 8mm | mm | 70 |
| MC224A300 | 300mm | 224 | 350 | A | 42mm | -- | 30mm | 20.5mm | 42mm | 43mm | 8mm | mm | 70 |
| MC224B300 | 300mm | 224 | 350 | B | 60mm | -- | 30mm | 20.5mm | 42mm | 43mm | 8mm | mm | 70 |
| MC224C300 | 300mm | 224 | 350 | C | 100mm | -- | 30mm | 20.5mm | 42mm | 43mm | 8mm | mm | 70 |
| MC224D300 | 300mm | 224 | 350 | D | 120mm | 10.5mm | 30mm | 20.5mm | 42mm | 43mm | 8mm | mm | 70 |
Hollow Pin Conveyor Chain Pricing
To get a quote on hollow pin conveyor chain fill out the request for quote form and someone from our customer service team will contact you.
