SBPF209-27 Stamped Steel 4-Bolt Flange Bearing | 1-9/16" Bearing

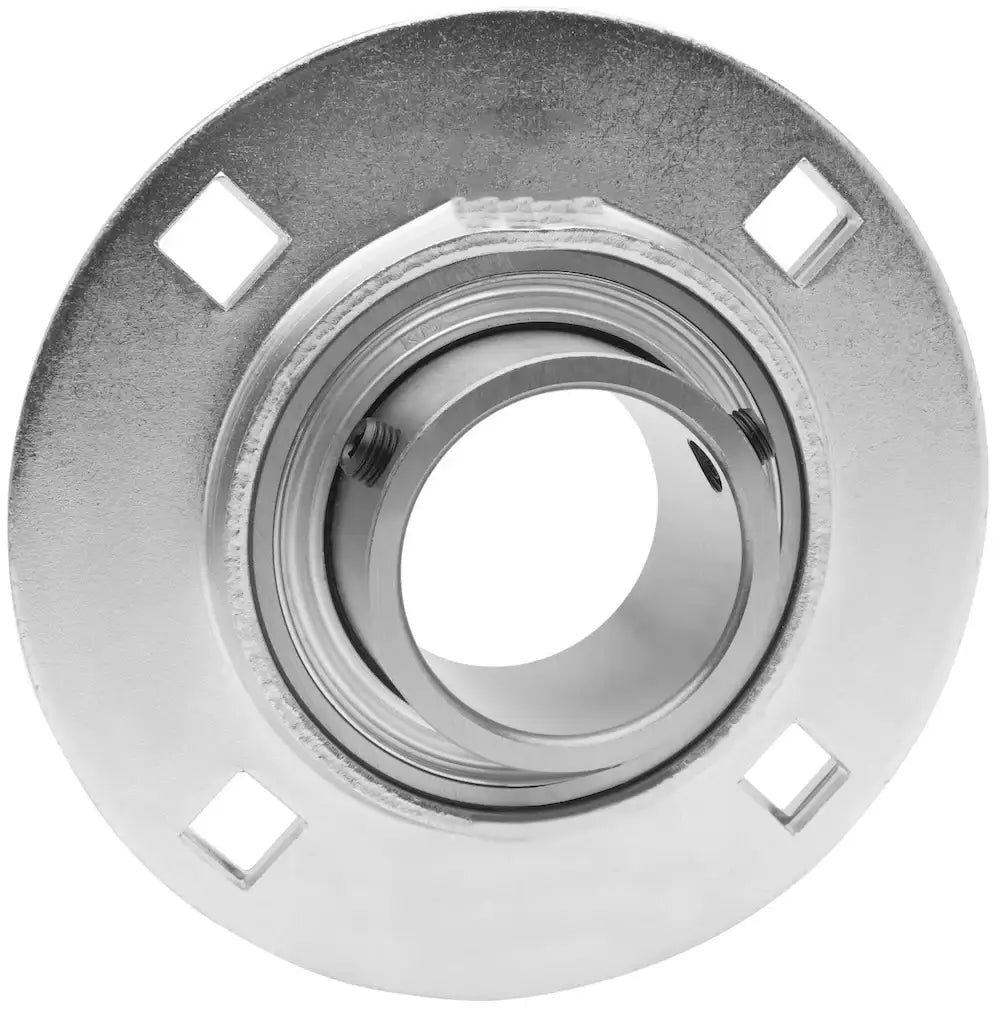

SBPF209-27 stamped steel bearing is a 4-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 1-9/16" insert bearing that utilizes set screws for securing onto a shaft. SBPF209-27 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the four-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing four mounting holes, the SBPF209-27 1-9/16" bearing has incredible holding power and stability. Additionally, our SBPF209-27 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SBPF209-27 bearing, contact our customer support team, and we will be happy to assist you!

SBPF209-27 Bearing Dimensions

• Part #: SBPF209-27
• Bearing ID: 1-9/16"
• Dimension (a): 5-55/64"
• Dimension (e): 4-49/64"
• Dimension (g): 9/64"
• Dimension (c): 7/8"
• Dimension (s): 1/2"
• Dimension (f): 3-13/16"
• Dimension (Bi): 1.625"
• Dimension (n): 0.375"
• Bolt Size: 1/2"
• Number of Bolt Holes: 4
• Insert Bearing #: SB209-27
• Housing #: PF209
• Weight: 3.00 LBS
