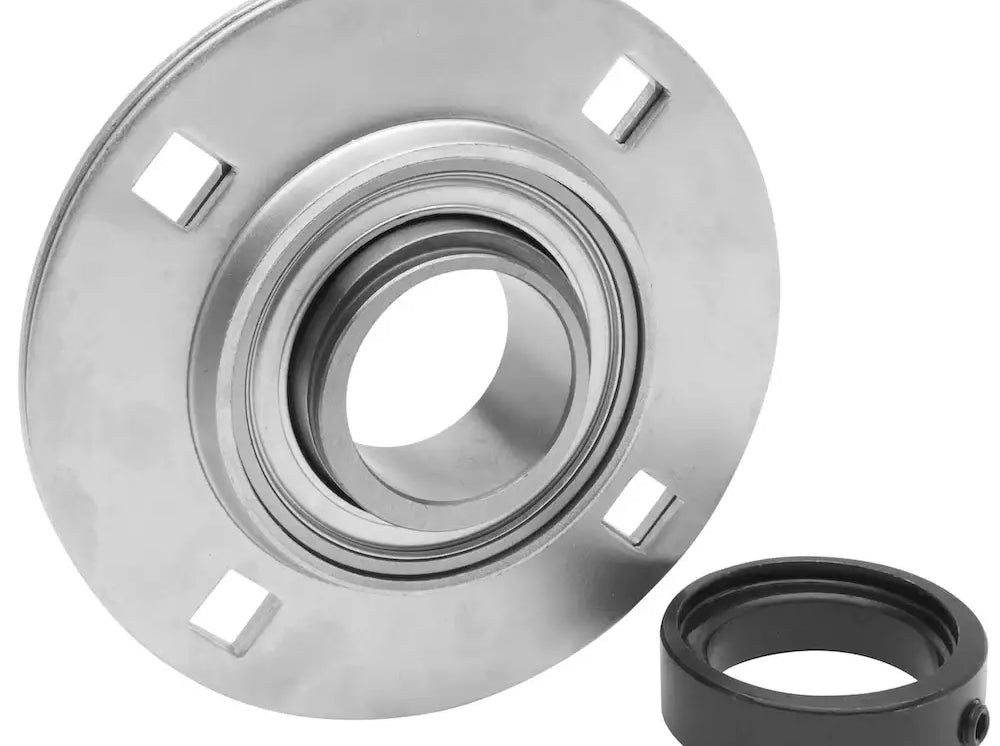

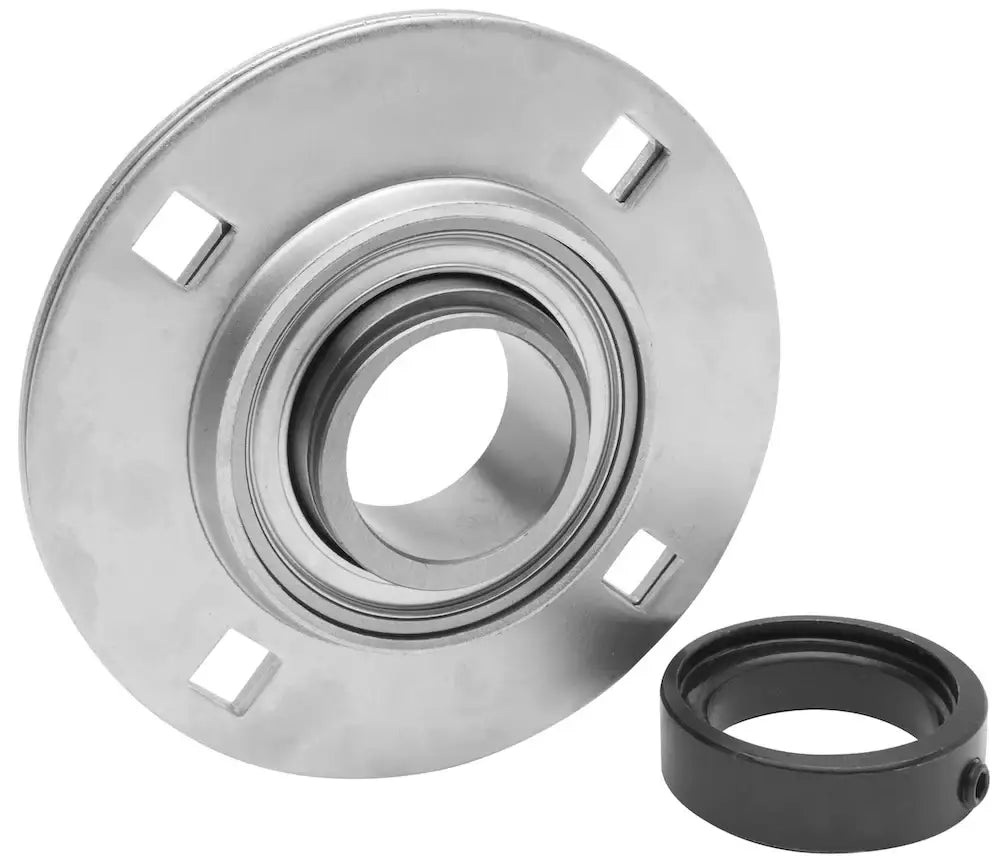

SAPF208-24 Stamped Steel 4-Bolt Flange Bearing | 1-1/2" Bearing

SAPF208-24 stamped steel bearing is a 4-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 1-1/2" insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPF208-24 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the four-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing four mounting holes, the SAPF208-24 1-1/2" bearing has incredible holding power and stability. Additionally, our SAPF208-24 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SAPF208-24 bearing, contact our customer support team, and we will be happy to assist you!

SAPF208-24 Bearing Dimensions

• Part #: SAPF208-24
• Bearing ID: 1-1/2"
• Dimension (a): 5-13/16"
• Dimension (e): 4-11/16"
• Dimension (g): 9/64"
• Dimension (c): 13/16"
• Dimension (s): 1/2"
• Dimension (f): 3-35/64"
• Dimension (L): 1.720"
• Dimension (n): 0.354"
• Dimension (W): 2-3/8"
• Bolt Size: 1/2"
• Number of Bolt Holes: 4
• Insert Bearing #: SA208-24
• Housing #: PF208
• Weight: 2.86 LBS
