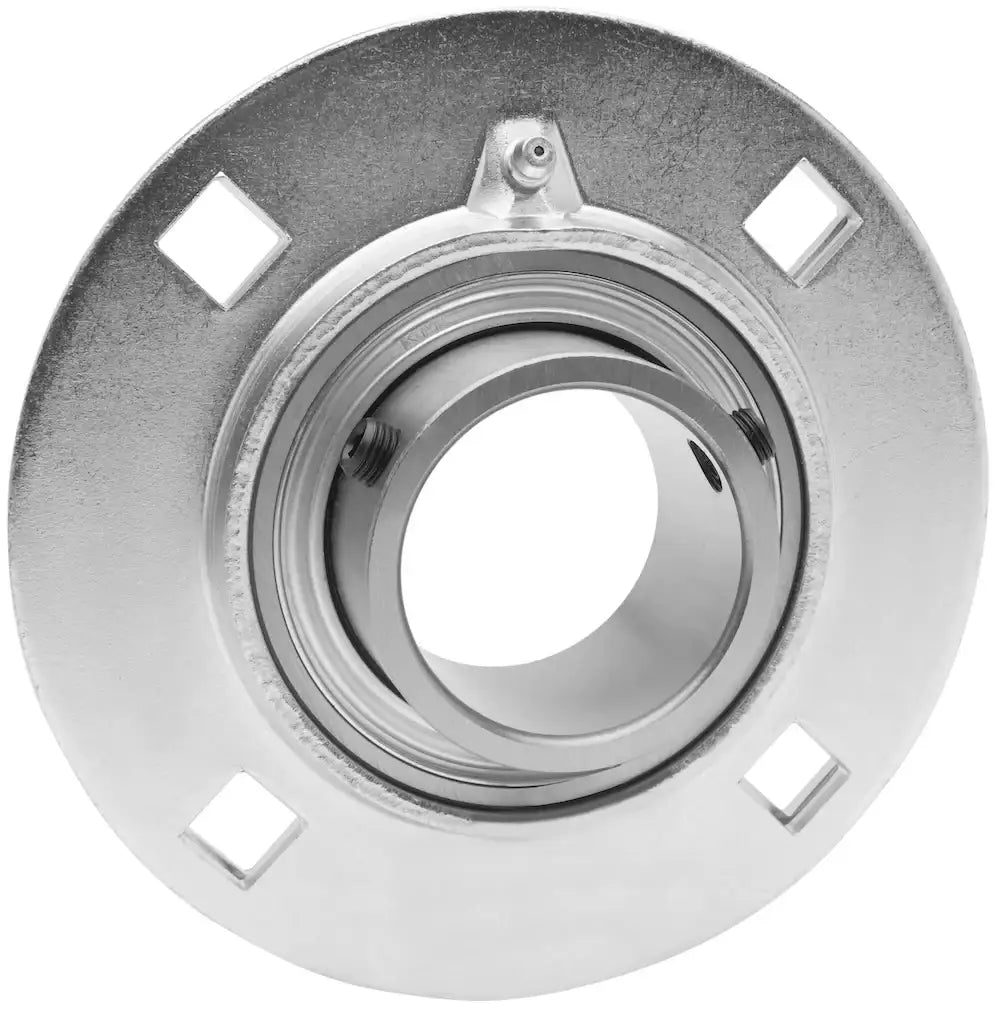

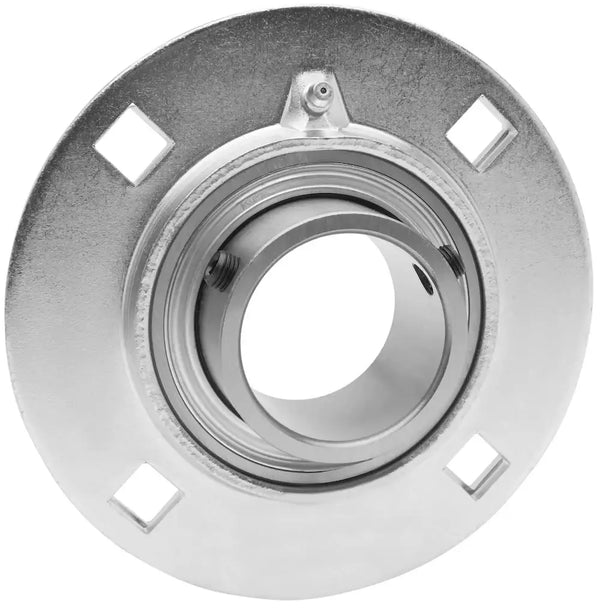

SBPF211G Stamped Steel 4-Bolt Flange Bearing | 55mm Bearing

SBPF211G stamped steel bearing is a 4-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality greasable stamped steel housing encases a performance C3 precision 55mm insert bearing that utilizes set screws for securing onto a shaft. SBPF211G bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the four-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing four mounting holes, the SBPF211G 55mm bearing has incredible holding power and stability. Additionally, our SBPF211G stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications, and is equipped with a grease zerk for re-lubing capabilities. For more information or to get a quote on our SBPF211G bearing, contact our customer support team, and we will be happy to assist you!

SBPF211G Bearing Dimensions

• Part #: SBPF211G
• Bearing ID: 55mm
• Dimension (a): 6-9/16"
• Dimension (e): 5-7/16"
• Dimension (g): 1-1/64"
• Dimension (c): 7/8"
• Dimension (s): 1/2"
• Dimension (f): 4-7/16"
• Dimension (Bi): 1.750"
• Dimension (n): 0.469"
• Bolt Size: 1/2"
• Number of Bolt Holes: 4
• Insert Bearing #: SB211
• Housing #: PF211G
• Weight: 4.40 LBS
