SBPF209 Stamped Steel 4-Bolt Flange Bearing | 45mm Bearing

SBPF209 Stamped Steel 4-Bolt Flange Bearing | 45mm Bearing

Note: Custom Cut to Length Chain Also Available
Regular price $57.00
$57.00
In Stock
On Sale Sold out
Product Code: 5652-SBPF209-BEARING
In Stock
Shipping calculated at checkout.

Login to Request a Quote

View full details

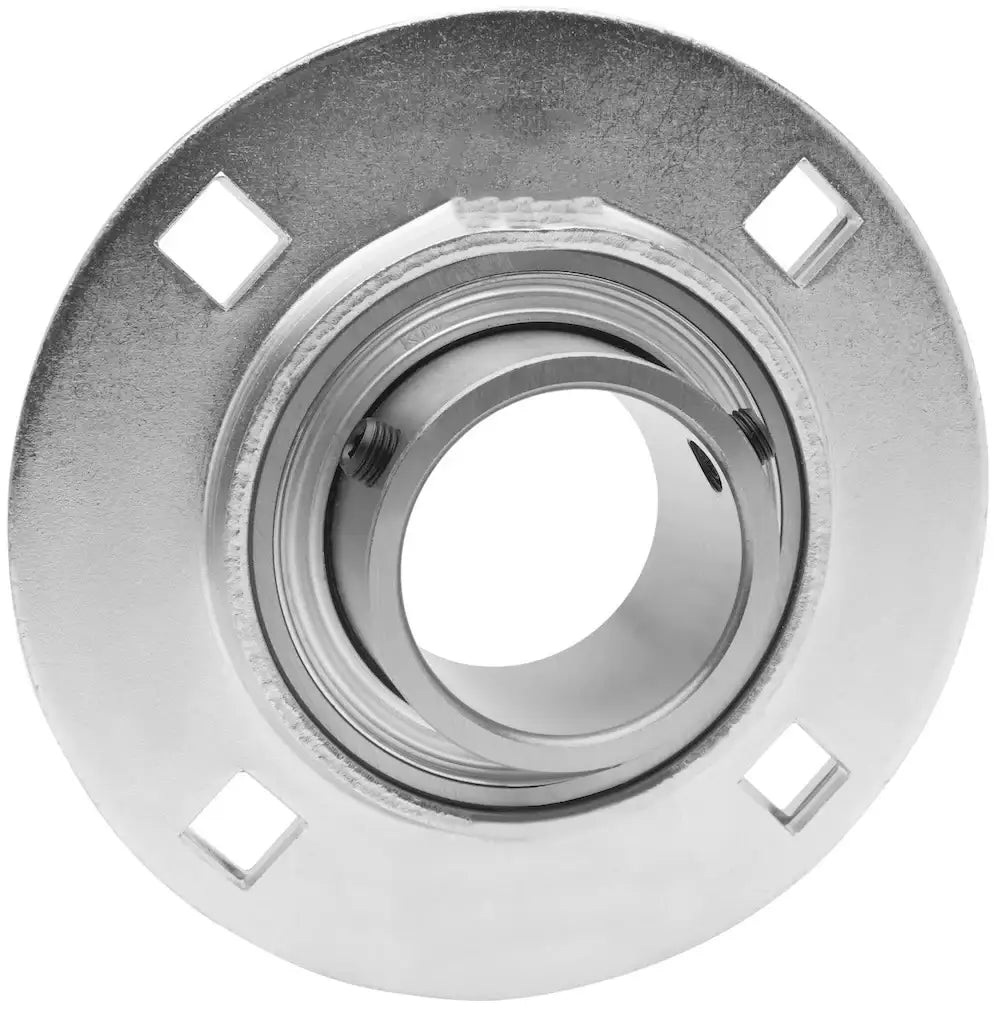

SBPF209 stamped steel bearing is a 4-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 45mm insert bearing that utilizes set screws for securing onto a shaft. SBPF209 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the four-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing four mounting holes, the SBPF209 45mm bearing has incredible holding power and stability. Additionally, our SBPF209 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SBPF209 bearing, contact our customer support team, and we will be happy to assist you!

SBPF209 Bearing Dimensions




  • Part #: SBPF209
  • Bearing ID: 45mm
  • Dimension (a): 5-55/64"
  • Dimension (e): 4-49/64"
  • Dimension (g): 9/64"
  • Dimension (c): 7/8"
  • Dimension (s): 1/2"
  • Dimension (f): 3-13/16"
  • Dimension (Bi): 1.625"
  • Dimension (n): 0.375"
  • Bolt Size: 1/2"
  • Number of Bolt Holes: 4
  • Insert Bearing #: SB209
  • Housing #: PF209
  • Weight: 3.00 LBS

Feature

  • Precision Stamped Steel
  • Performance C3 Insert Bearing
  • Zinc Plated Housing
  • Hassle-Free Assembly
  • Interchanges With Other Brands
Featured image
  • Part #: SBPF209
  • Bearing ID: 45mm
  • Dimension (a): 5-55/64"
  • Dimension (e): 4-49/64"
  • Dimension (g): 9/64"
  • Dimension (c): 7/8"
  • Dimension (s): 1/2"
  • Dimension (f): 3-13/16"
  • Dimension (Bi): 1.625"
  • Dimension (n): 0.375"
  • Bolt Size: 1/2"
  • Number of Bolt Holes: 4
  • Insert Bearing #: SB209
  • Housing #: PF209
  • Weight: 3.00 LBS
