SAPFT202-10 Stamped Steel 3-Bolt Flange Bearing | 5/8" Bearing

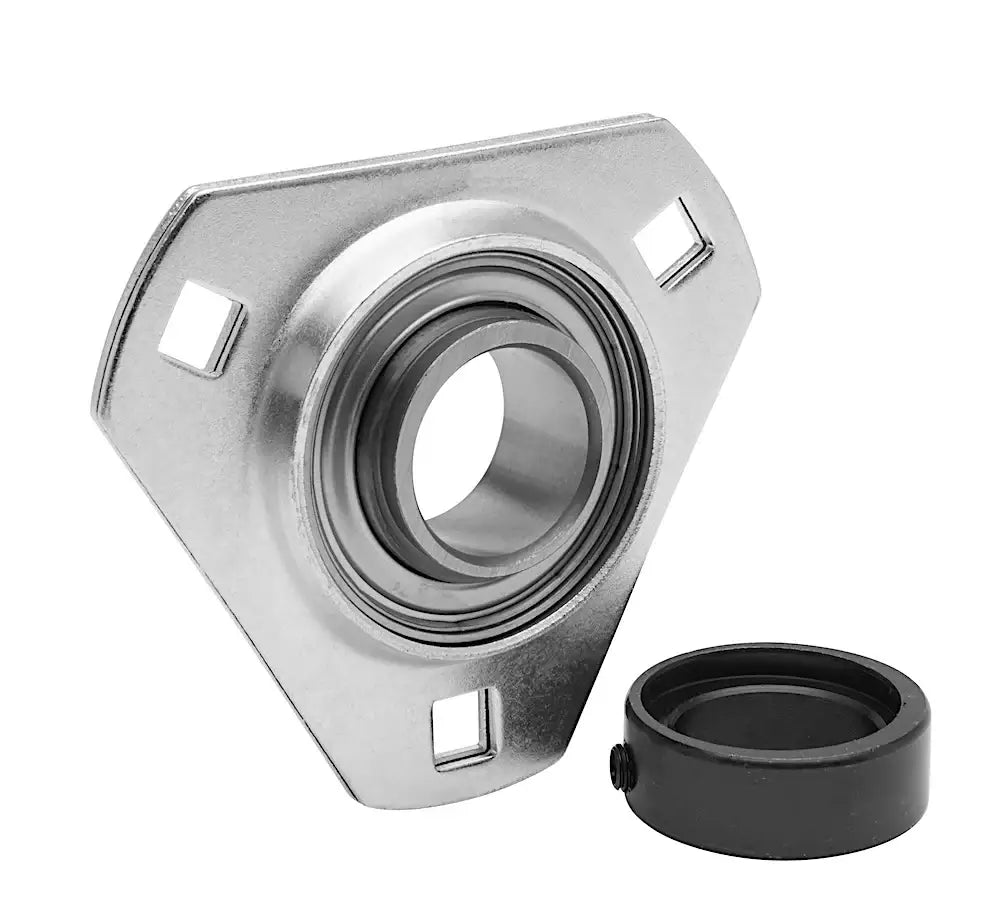

SAPFT202-10 stamped steel bearing is a 3-bolt triangle flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 5/8" insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPFT202-10 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SAPFT202-10 5/8" bearing has incredible holding power and stability. Additionally, our SAPFT202-10 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SAPFT202-10 bearing, contact our customer support team, and we will be happy to assist you!

SAPFT202-10 Bearing Dimensions

• Part #: SAPFT202-10
• Bearing I.D: 5/8"
• Dimension (a): 2-23/32"
• Dimension (e): 2-33/64"
• Dimension (h): 1-3/16"
• Dimension (s): 9/32"
• Dimension (c): 9/16"
• Dimension (g): 5/64"
• Dimension (b): 13/16"
• Dimension (f): 1-59/64"
• Dimension (L): 1.126"
• Dimension (n): 0.236"
• Dimension (W): 1-1/8"
• Bolt Size: 1/4"
• Insert Bearing #: SA202-10
• Housing #: PFT203
• Weight: 0.57 LBS
