303 Stainless Steel Shaft

USA Roller Chain and Sprockets is a premier supplier of high precision 303-grade stainless steel shafts. We stock plain stainless steel shafting and metric stainless steel shafting in both keyed full length and plain configurations in 3ft, 6ft, and 12ft lengths. We can also supply custom shafting thanks to our network of fast-reacting steel shaft suppliers! All of our stainless steel shafts are manufactured to precision tolerances, this reduces unwanted additional vibration as well as reduces friction on idlers or bearings. Besides stainless steel shafts, we also stock a full line of stainless steel roller chain, stainless steel sprockets, and a wide range of other corrosive and food application components. To get a quote, contact our sales team at sales@usarollerchain.com or call (407) 347-3519, and we will be happy to assist!

Stainless Steel Shaft Properties

303-grade stainless steel is used because it is non-magnetic, austenitic stainless steel that is not hard-enable by heat treatment. It also exhibits improved machinability while maintaining good mechanical and corrosion resistance due to the presence of sulfur in the steel composition. However 303s corrosion resistance is slightly lower than 304-grade stainless steel. We can supply 304, 316, 4103, and other grades of stainless steel shafts for specialty applications that require a different material.

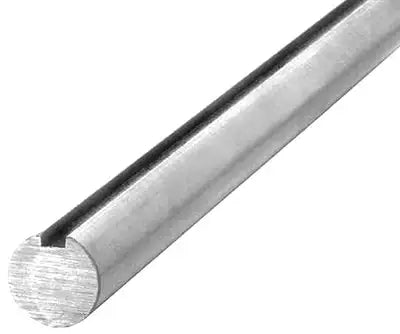

Keyed Stainless Steel Shafts

Checkout our in stock sizes for in stock 303 stainless steel keyed full length shafting on the chart below. Please note that each diameter size is a clickable link to the product page itself.

Stainless Steel Keyed Shaft Chart
Inch Shaft Size Keyway Width Keyway Depth Metric Shaft Size Keyway Width Keyway Depth Stock Lengths
5/8" 3/16" 3/32" 15mm 5mm 2.3mm 3ft, 6ft, 12ft
7/8" 3/16" 3/32" 16mm 5mm 2.3mm 3ft, 6ft, 12ft
1/2" 1/8" 1/16" 20mm 6mm 2.8mm 3ft, 6ft, 12ft
3/4" 3/16" 3/32" 25mm 8mm 3.3mm 3ft, 6ft, 12ft
15/16" 1/4" 1/8" 30mm 8mm 3.3mm 3ft, 6ft, 12ft
1" 1/4" 1/8" 35mm 10mm 3.3mm 3ft, 6ft, 12ft
1-1/8" 1/4" 1/8" 40mm 12mm 3.3mm 3ft, 6ft, 12ft
1-3/16" 1/4" 1/8" 45mm 14mm 3.8mm 3ft, 6ft, 12ft
1-1/4" 1/4" 1/8" 50mm 14mm 3.8mm 3ft, 6ft, 12ft
1-3/8" 5/16" 5/32" 60mm 18mm 4.4mm 3ft, 6ft, 12ft
1-7/16" 3/8" 3/16" -- -- -- 3ft, 6ft, 12ft
1-1/2" 3/8" 3/16" -- -- -- 3ft, 6ft, 12ft
1-5/8" 3/8" 3/16" -- -- -- 3ft, 6ft, 12ft
1-11/16'' 3/8" 3/16" -- -- -- 3ft, 6ft, 12ft
1-3/4" 3/8" 3/16" -- -- -- 3ft, 6ft, 12ft
1-15/16" 1/2" 1/4" -- -- -- 3ft, 6ft, 12ft
2" 1/2" 1/4" -- -- -- 3ft, 6ft, 12ft
2-3/16" 1/2" 1/4" -- -- -- 3ft, 6ft, 12ft
2-1/4" 1/2" 1/4" -- -- -- 3ft, 6ft, 12ft
2-7/16" 5/8" 5/16" -- -- -- 3ft, 6ft, 12ft
2-1/2" 5/8" 5/16" -- -- -- 3ft, 6ft, 12ft
2-11/16" 5/8" 5/16" -- -- -- 3ft, 6ft, 12ft
3" 3/4" 3/8" -- -- -- 3ft, 6ft, 12ft
3-7/16" 7/8" 7/16" -- -- -- 3ft, 6ft, 12ft


Plain Stainless Steel Shafts

Check out our commonly in-stock sizes for 303 stainless steel plain shafting on the chart below. Please note that each diameter size is a clickable link to the product page itself.

Stainless Steel Plain Shaft Chart
Inch Shaft Size Metric Shaft Size Stock Lengths
1/4" 6mm 3ft, 6ft, 12ft
5/16" 7mm 3ft, 6ft, 12ft
3/8" 8mm 3ft, 6ft, 12ft
7/16" 9mm 3ft, 6ft, 12ft
1/2" 10mm 3ft, 6ft, 12ft
5/8" 12mm 3ft, 6ft, 12ft
3/4" 14mm 3ft, 6ft, 12ft
7/8" 15mm 3ft, 6ft, 12ft
15/16" 16mm 3ft, 6ft, 12ft
1" 17mm 3ft, 6ft, 12ft
1-1/8" 18mm 3ft, 6ft, 12ft
1-3/16" 20mm 3ft, 6ft, 12ft
1-1/4" 25mm 3ft, 6ft, 12ft
1-3/8" 30mm 3ft, 6ft, 12ft
1-7/16" 35mm 3ft, 6ft, 12ft
1-1/2" 40mm 3ft, 6ft, 12ft
1-5/8" 45mm 3ft, 6ft, 12ft
1-11/16" 50mm 3ft, 6ft, 12ft
1-3/4" 60mm 3ft, 6ft, 12ft
1-15/16" -- 3ft, 6ft, 12ft
2" -- 3ft, 6ft, 12ft
2-3/16" -- 3ft, 6ft, 12ft
2-7/16" -- 3ft, 6ft, 12ft
2-1/2" -- 3ft, 6ft, 12ft
2-11/16" -- 3ft, 6ft, 12ft
2-15/16" -- 3ft, 6ft, 12ft
3" -- 3ft, 6ft, 12ft
3-7/16" -- 3ft, 6ft, 12ft
