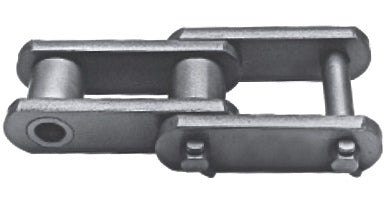

Steel Bushed Chains
Steel bushed chains are manufactured using high-strength steel components and are typically used in asphalt, lumber, sugar mill, and elevating applications. Our line of steel bushed chains is manufactured to American Standards and offer superior strength and durability versus other suppliers. Each component within these steel bushed chains undergoes specific manufacturing processes and heat treatments to ensure the individual part operates optimally for the specific task at hand for the components within the chain.Steel Bushed Chain Sizes
|
Chain Size
|
Pitch (P)
|
Pin Diameter (E)
|
Riveted Overall Width (C1)
|
Cottered Overall Width
|
Sidebar Height (H)
|
Bushing Diameter (D)
|
Dimension (J)
|
Sidebar Thickness (T)
|
Width Between Inner Sidebars (W)
|
Bushing Length (X)
|
Ultimate Strength (LBS)
|
Working Load (LBS)
|
Weight (LBS/ FT)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SS188 | 2.609" | 0.500" | 2.50" | 2.69" | 1.12" | 0.88" | 1.25" | 0.25" | 1.06" | 1.56" | 25,000 | 2,750 | 3.8 |
| SS131 | 3.075" | 0.625" | 3.50" | 3.75" | 1.50" | 1.25" | 1.62" | 0.38" | 1.31" | 2.06" | 40,000 | 4,500 | 7.4 |
| SS102B | 4.000" | 0.625" | 4.38" | 4.53" | 1.50" | 1.00" | 2.05" | 0.38" | 2.12" | 2.88" | 40,000 | 6,300 | 6.9 |
| SS111 | 4.760" | 0.750" | 5.00" | 5.44" | 2.00" | 1.44" | 2.38" | 0.38" | 2.62" | 3.38" | 50,000 | 8,850 | 10.2 |
| SS110 | 6.000" | 0.625" | 4.38" | 4.53" | 1.50" | 1.25" | 2.05" | 0.38" | 2.12" | 2.88" | 40,000 | 6,300 | 6.3 |
| SS833 | 6.000" | 0.750" | - | 5.10" | 2.00" | 1.44" | 2.38" | 0.38" | 2.62" | 3.38" | 50,000 | 8,850 | 20.2 |
| SS856 | 6.000" | 1.000" | 6.00" | 6.31" | 2.50" | 1.75" | 2.91" | 0.50" | 3.00" | 4.00" | 100,000 | 14,000 | 16.5 |
| SS857 | 6.000" | 1.000" | - | 5.94" | 3.25" | 1.75" | 2.81" | 0.50" | 3.00" | 4.00" | 130,000 | 14,000 | 21.0 |
| SS859 | 6.000" | 1.250" | - | 7.25" | 4.00" | 2.38" | 3.44" | 0.62" | 3.75" | 5.00" | 200,000 | 21,800 | 34.0 |
| SS956 | 6.000" | 1.000" | - | 5.94" | 3.00" | 1.75" | 2.78" | 0.50" | 3.00" | 4.00" | 100,000 | 14,000 | 23.0 |
| SS958 | 6.000" | 1.120" | - | 6.33" | 3.25" | 2.00" | 3.09" | 0.56" | 3.00" | 4.12" | 151,000 | 18,210 | 40.0 |
| SS958SJ | 6.000" | 1.120" | - | 6.83" | 3.25" | 2.00" | 3.34" | 0.56" | 3.00" | 4.12" | 151,000 | 18,210 | 40.0 |
| SS150+ | 6.050" | 1.000" | 6.50" | 6.62" | 2.50" | 1.75" | 3.06" | 0.50" | 3.31" | 4.31" | 100,000 | 15,100 | 16.6 |
| SS864 | 7.000" | 1.250" | - | 7.25" | 4.00" | 2.38" | 3.44" | 0.62" | 3.75" | 5.00" | 200,000 | 21,000 | 31.0 |
| SS864SJ | 7.000" | 1.250" | - | 7.75" | 4.00" | 2.38" | 3.64" | 0.62" | 3.75" | 5.00" | 200,000 | 21,000 | 55.2 |
| SS984 | 7.000" | 1.38" | - | 7.25" | 4.00" | 2.50" | 3.41" | 0.62" | 3.75" | 5.00" | 200,000 | 24,000 | 58.0 |
| SS984SJ | 7.000" | 1.38" | - | 7.75" | 4.00" | 2.50" | 3.66" | 0.62" | 3.75" | 5.00" | 200,000 | 24,000 | 58.0 |
| SS994 | 7.000" | 1.58" | - | 7.25" | 4.00" | 2.50" | 3.41" | 0.62" | 3.75" | 5.00" | 200,000 | 27,500 | 58.0 |
| SS944SJ | 7.000" | 1.58" | - | 7.75" | 4.00" | 2.50" | 3.66" | 0.62" | 3.75" | 5.00" | 200,000 | 27,500 | 58.0 |
