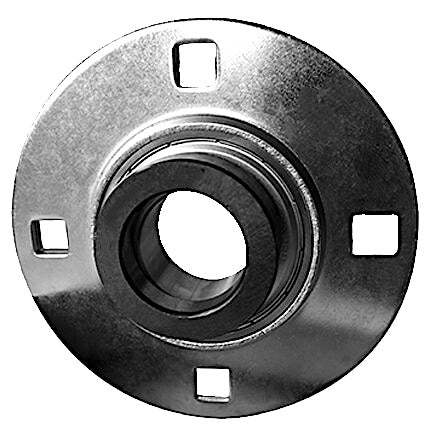

SAPF211-32G Stamped Steel 4-Bolt Flange Bearing | 2" Bearing
SAPF211-32G stamped steel bearing is a 4-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality greaseable stamped steel housing encases a performance C3 precision 2" insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPF211-32G bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the four-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing four mounting holes, the SAPF211-32G 2" bearing has incredible holding power and stability. Additionally, our SAPF211-32G stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications and is equipped with a grease zerk for re-lubing capabilities. For more information or to get a quote on our SAPF211-32G bearing, contact our customer support team, and we will be happy to assist you!
SAPF211-32G Bearing Dimensions

- Part #: SAPF211-32G
- Bearing ID: 2"
- Dimension (a): 6-9/16"
- Dimension (e): 5-7/16"
- Dimension (g): 11/64"
- Dimension (c): 7/8"
- Dimension (s): 1/2"
- Dimension (f): 4-7/16"
- Dimension (L): 1.720"
- Dimension (n): 0.469"
- Dimension (W): 3"
- Bolt Size: 1/2"
- Number of Bolt Holes: 4
- Insert Bearing #: SA211-32
- Housing #: PF211G
- Weight: 4.70 LBS
- Part #: SAPF211-32G
- Bearing ID: 2"
- Dimension (a): 6-9/16"
- Dimension (e): 5-7/16"
- Dimension (g): 11/64"
- Dimension (c): 7/8"
- Dimension (s): 1/2"
- Dimension (f): 4-7/16"
- Dimension (L): 1.720"
- Dimension (n): 0.469"
- Dimension (W): 3"
- Bolt Size: 1/2"
- Number of Bolt Holes: 4
- Insert Bearing #: SA211-32
- Housing #: PF211G
- Weight: 4.70 LBS
