CSA52MFM205-14 Stamped Steel 2-Bolt Flange Bearing | 7/8" Bearing

CSA52MFM205-14 Stamped Steel 2-Bolt Flange Bearing | 7/8" Bearing

Note: Custom Cut to Length Chain Also Available
Product Code: 5652-CSA40MFM205-14
Shipping calculated at checkout.
View full details
CSA52MFM205-14 stamped steel bearing is a 2-bolt flush mount flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 7/8" insert bearing that utilizes set screws for securing onto a shaft. CSA52MFM205-14 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the two-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing two mounting holes, the CSA52MFM205-14 7/8" bearing has incredible holding power, stability, and mounting position flexibility. Additionally, our CSA52MFM205-14 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our flush mount CSA52MFM205-14 bearing, contact our customer support team, and we will be happy to assist you!

CSA52MFM205-14 Bearing Dimensions


  • Bearing Unit Part #: CSA52MFM205-14
  • Bearing I.D.: 7/8"
  • Dimension (a): 3-3/4"
  • Dimension (e): 3"
  • Dimension (s): 11/32"
  • Dimension (b): 2-51/64"
  • Dimension (L): 1.220"
  • Dimension (W): 1-1/2"
  • Bolt Size: 5/16"
  • Insert Bearing #: CSA205-14

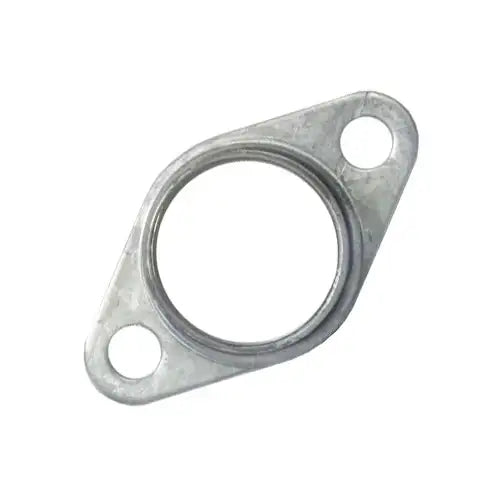

  • Housing #: 52-2-MFM
  • Weight: 0.66 LBS


Feature

  • Precision Stamped Steel
  • Performance C3 Insert Bearing
  • Zinc Plated Housing
  • Hassle-Free Assembly
  • Interchanges With Other Brands
Featured image
  • Bearing Unit Part #: CSA52MFM205-14
  • Bearing I.D.: 7/8"
  • Dimension (a): 3-3/4"
  • Dimension (e): 3"
  • Dimension (s): 11/32"
  • Dimension (b): 2-51/64"
  • Dimension (L): 1.220"
  • Dimension (W): 1-1/2"
  • Bolt Size: 5/16"
  • Insert Bearing #: CSA205-14
  • Housing #: 52-2-MFM
  • Weight: 0.66 LBS
