Tram Chain
Tram chains are a unique roller chain style designed similarly to standard transmission roller chains but more specifically to feeder applications in continuous mining machinery. Mining tram chains are often used in a parallel two-strand configuration with flight bars (slats) placed between and connecting the chains. This configuration allows mined materials to be conveyed highly effectively with the slats. Our genuine tier-one tram chains directly interchange with other brands and utilize specific features and material grades to maximize strength, durability, and performance. For additional information or to get a quote on the tram chain, contact our customer service team; we will be happy to assist you!
Tram Chain Sizes
The chart below shows the standard sizes of tram chains; if you don't see the specific size you are using, don't hesitate to contact us.
| Part # | Style | Pitch (A) | Overall Width (J+K) | Inside Width (W) | Pin Dia. (L) | Pin Material | Bushing Dia. (B) | Bushing Material | Roller Dia. (T) | Roller Material | Sidebar Thickness (C) | Sidebar Height (H) | Sidebar Material | Weight (LBS/ Ft) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

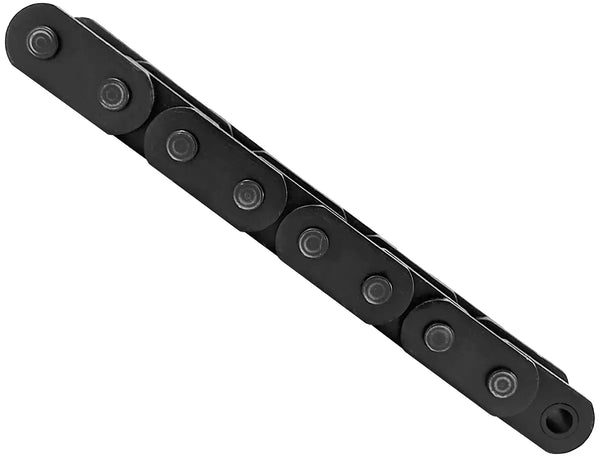

| JB2R | B | 2.00" | 3.125" | 1.250" | 0.725" | AHT | 1.250" | ACH | -- | -- | 0.313" | 1.875" | AHT | 8.9 |
| JKM2 | A | 2.00" | 3.380" | 1.250" | 0.720" | AHT | 1.130" | ACH | -- | -- | 0.310" | 1.880" | AHT | 8.3 |
| JKM645 | B | 2.50" | 3.720" | 1.500" | 0.880" | AHT | 1.130" | ACH | 1.560" | AHT | 0.380" | 2.130" | AHT | 13.5 |
| JKM6414 | B | 2.50" | 4.130" | 1.500" | 0.880" | AHT | 1.130" | ACH | 1.560" | AHT | 0.440" | 2.130" | AHT | 14.5 |
| 64S | A | 2.50" | 3.690" | 1.500" | 0.875" | AHT | 1.125" | ACH | 1.250" | AHT | 0.375" | 2.125" | AHT | 13.5 |
| 64SM | A | 2.50" | 4.130" | 1.500" | 0.875" | AHT | 1.125" | ACH | 1.250" | AHT | 0.438"* X 0.500" | 2.125" | AHT | 14.5 |
| JB2 | B | 2.00" | 3.160" | 1.125" | 0.718" | AHT | 1.125" | ACH | -- | -- | 0.313" | 1.875" | AHT | 8.3 |
| JB2-2 | B (Duplex) | 2.00" | -- | 1.125" | 0.718" | AHT | 1.125" | ACH | -- | -- | 0.313" | 1.875" | AHT | 16.5 |
- Material AHT= Alloy Heat-Treated
- Material ACH= Alloy Case Hardened
- Inside Link Side Bar Thickness is Dimension 0.438"* on 64SM

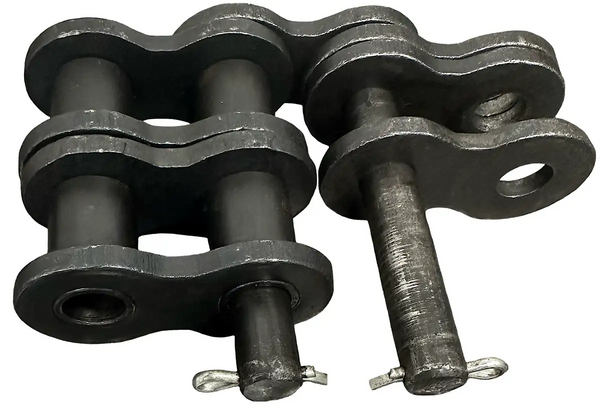

- JB2-2 Chain is a double-strand (Duplex) version of JB2
