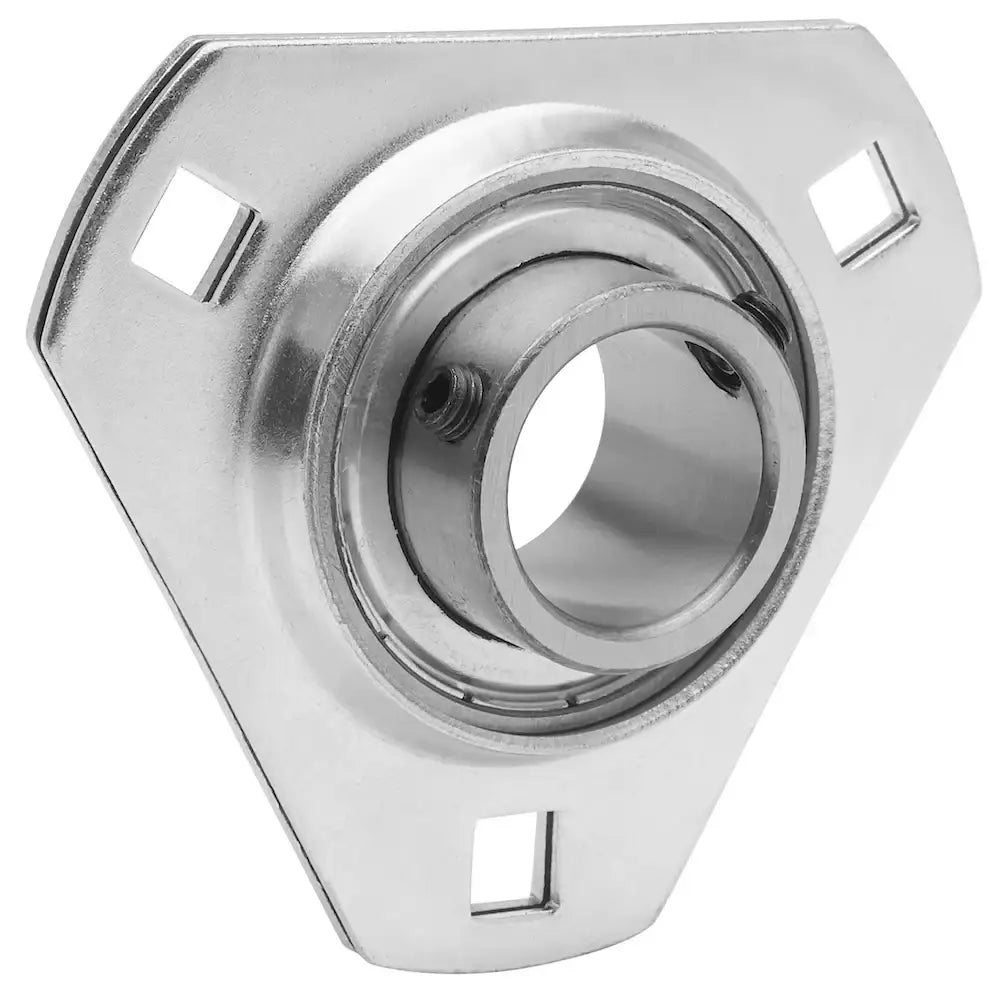

SBPFT206 Stamped Steel 3-Bolt Flange Bearing | 30mm Bearing

SBPFT206 stamped steel bearing is a 3-bolt triangle flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 30mm insert bearing that utilizes set screws for securing onto a shaft. SBPFT206 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SBPFT206 30mm bearing has incredible holding power and stability. Additionally, our SBPFT206 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SBPFT206 bearing, contact our customer support team, and we will be happy to assist you!

SBPFT206 Bearing Dimensions

• Part #: SBPFT206
• Bearing I.D: 30mm
• Dimension (a): 3-11/16"
• Dimension (e): 3-35/64"
• Dimension (h): 1-1/2"
• Dimension (s): 13/32"
• Dimension (c): 21/32"
• Dimension (g): 7/64"
• Dimension (b): 1-1/8"
• Dimension (f): 2-51/64"
• Dimension (Bi): 1.181"
• Dimension (n): 0.315"
• Bolt Size: 3/8"
• Insert Bearing #: SB206
• Housing #: PFT206
• Weight: 0.88 LBS
