Additional Agricultural Chains

Additional Agricultural Chains

Besides the "standard" agricultural chains USA Roller Chain and Sprockets can also supply the odd sizes as well. Most of these sizes are non-stock but some sizes are in-stock. If you are needing one and it happens to be not in stock we can manufacture it within a fast lead-time and at a competitive price.

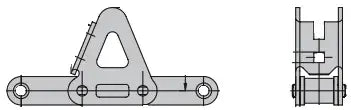

S55H Agricultural Chain
Chain Size
Pitch (P)
Roller Diameter (D1)
Dimension (B1)
Pin Diameter (D2)
Pin Length (L)
Pin Length (LC)
Dimension (H2)
Plate Thickness (T)
Tensile Strength
Weight Per Meter
41.40mm 17.78mm 22.23mm 9.10mm 40.00mm 44.50mm 23.10mm 3.00mm 9,441 LBS 5.84 LBS

D-Type Agricultural Chains
Chain Size
Pitch (P)
Roller Diameter (D1)
Dimension (B1)
Pin Diameter (D2)
Pin Length (L)
Pin Length (LC)
Dimension (H2)
Plate Thickness (T)
Tensile Strength
Weight Per Meter
41.40mm 16.87mm 19.81mm 7.19mm 35.0mm 38.0mm 19.3mm 2.8mm 11,240 LBS 4.28 LBS
41.40mm 16.87mm 12.70mm 7.19mm 29.1mm 32.0mm 19.3mm 3.1mm 11,240 LBS 3.79 LBS
41.40mm 17.78mm 20.24mm 8.00mm 37.4mm 40.6mm 23.1mm 3.1mm 16,186 LBS 5.73 LBS
42.0mm 17.91mm 24.51mm 7.19mm 41.8mm 45.2mm 20.2mm 3.3mm 11,240 LBS 5.18 LBS

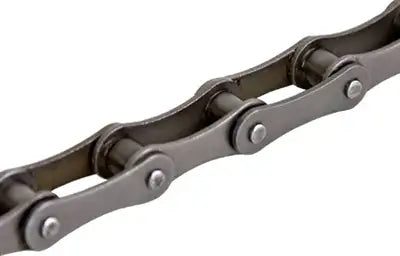

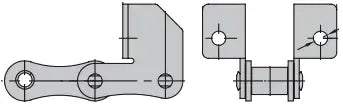

P41.3 Agricultural Chain
Chain Size
Pitch (P)
Roller Diameter (D1)
Dimension (B1)
Pin Diameter (D2)
Pin Length (L)
Pin Length (LC)
Dimension (H2)
Plate Thickness (T)
Tensile Strength
Weight Per Meter
41.3mm 16.0mm 21.4mm 8.28mm 39.0mm 42.0mm 23.5mm 3.1mm 11,363 LBS 5.00 LBS

LV40 Agricultural Chain
Chain Size
Pitch (P)
Roller Diameter (D1)
Dimension (B1)
Pin Diameter (D2)
Pin Length (L)
Pin Length (LC)
Dimension (H2)
Plate Thickness (T)
Tensile Strength
Weight Per Meter
40.0mm 12.0mm 22.0mm 6.0mm 38.2mm 41.0mm 17.5mm 3.0mm 7,136 LBS 3.37 LBS
