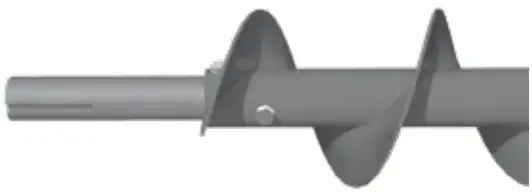

Screw Conveyor Drive Shafts
The purpose of a screw conveyor drive shaft is to transmit the rotary motion from the drive unit to the conveyor screw. To make sure this action is achieved, our screw conveyor driveshafts are manufactured from a select grade of high-quality cold-rolled steel and precision manufactured to tight tolerances to ensure proper fitment of bearings. The keyways (keys) that are placed in drive shafts are cut to transmission standards and the coupling bolt holes are precision jig-drilled to the proper placement and dimensions to accommodate the also jig-drilled pipe. All of these things add up to a screw conveyor drive shaft that is ready for a long working life! We supply these screw conveyor driveshafts with or without end seals depending on the application's needs.
Screw Conveyor Drive Shaft Sizes
|
Shaft Diameter
|
#100, #101 Trough End Without Seal Part #
|
#102, #103 Trough End Without Seal Part #
|
#100, #101 Trough End With Seal Part #
|
#102, #103 Trough End With Seal Part #
|
|---|---|---|---|---|
| 1" | 152-0352 | 152-0212 | - | - |
| 1-1/2" | 152-0709 | 152-0568 | 152-0774 | 152-0709 |
| 2" | 152-1053 | 152-0915 | 152-1129 | 152-1053 |
| 2-7/16" | 152-1475 | 152-1269 | 152-1541 | 152-1400 |
| 3" | 152-1897 | 152-1681 | 152-1962 | 152-1822 |
| 3-7/16" | 152-2176 | 152-2036 | 152-2242 | 152-2101 |
Screw Conveyor Drive Shaft Dimensions
|
Shaft Size
|
Part #
|
Dimension (B)
|
Dimension (C)
|
Dimension (D)
|
Dimension (E)
|
Dimension (F)
|
Key Dimension
|
Weight (LBS)
|
|---|---|---|---|---|---|---|---|---|
| 1" | 152-0212 | 7-7/8" | 4-7/8" | 3-15/16" | 15/16" | 2-1/4" | 1/4" x 1/8" | 1.8 |
| 1" | 152-0352 | 8-3/8" | 5-3/8" | 4-7/16" | 15/16" | 2-1/4" | 1/4" x 1/8" | 1.9 |
| 1-1/2" | 152-0568 | 11-1/2" | 6-3/4" | 5-1/2" | 1-1/4" | 3-1/4" | 3/8" x 3/16" | 5.8 |
| 1-1/2" | 152-0709 | 13-1/4" | 8-1/2" | 7-1/4" | 1-1/4" | 3-1/4" | 3/8" x 3/16" | 6.7 |
| 1-1/2" | 152-0774 | 14-1/4" | 9-1/2" | 8-1/4" | 1-1/4" | 3-1/4" | 3/8" x 3/16" | 7.2 |
| 2" | 152-0915 | 13-1/8" | 8-3/8" | 7-1/8" | 1-1/4" | 4-1/2" | 1/2" x 1/4" | 11.7 |
| 2" | 152-1053 | 14-7/8" | 10-1/8" | 8-7/8" | 1-1/4" | 4-1/2" | 1/2" x 1/4" | 13.3 |
| 2" | 152-1129 | 16-1/2" | 11-3/4" | 10-1/2" | 1-1/4" | 4-1/2" | 1/2" x 1/4" | 14.7 |
| 2-7/16" | 152-1269 | 15-1/8" | 10-1/4" | 8-7/16" | 1-13/16" | 5-1/2" | 5/8" x 5/16" | 20 |
| 2-7/16" | 152-1400 | 16-7/8" | 12" | 10-3/16" | 1-13/16" | 5-1/2" | 5/8" x 5/16" | 22 |
| 2-7/16" | 152-1475 | 17-3/8" | 12-1/2" | 10-11/16" | 1-13/16" | 5-1/2" | 5/8" x 5/16" | 23 |
| 2-7/16" | 152-1541 | 19-1/8" | 14-1/4" | 12-7/16" | 1-13/16" | 5-1/2" | 5/8" x 5/16" | 25.4 |
| 3" | 152-1681 | 16-5/8" | 11-5/8" | 9-3/4" | 1-7/8" | 6" | 3/4" x 3/8" | 33.3 |
| 3" | 152-1822 | 18-3/8" | 13-3/8" | 11-1/2" | 1-7/8" | 6" | 3/4" x 3/8" | 37 |
| 3" | 152-1897 | 19-1/8" | 14-1/8" | 12-1/4" | 1-7/8" | 6" | 3/4" x 3/8" | 38.3 |
| 3" | 152-1962 | 20-7/8" | 15-7/8" | 14" | 1-7/8" | 6" | 3/4" x 3/8" | 41.8 |
| 3-7/16" | 152-2036 | 20-5/8" | 13-7/8" | 11-1/2" | 2-3/8" | 7-1/4" | 7/8" x 7/16" | 60 |
| 3-7/16" | 152-2101 | 22-7/8" | 16-1/8" | 13-3/4" | 2-3/8" | 7-1/4" | 7/8" x 7/16" | 66 |
| 3-7/16" | 152-2176 | 23-5/8" | 16-7/8" | 14-1/2" | 2-3/8" | 7-1/4" | 7/8" x 7/16" | 68 |
| 3-7/16" | 152-2242 | 25-7/8" | 19-1/8" | 16-3/4" | 2-3/8" | 7-1/4" | 7/8" x 7/16" | 75 |
