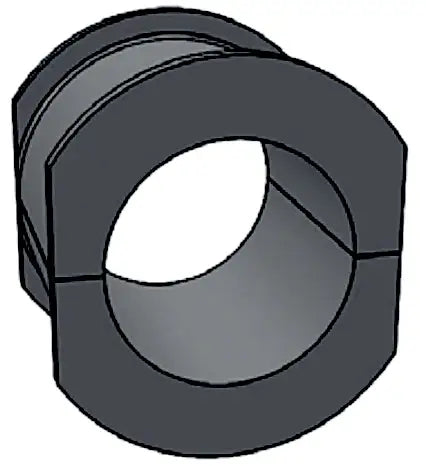

Screw Conveyor Hanger Bearings
Hanger bearings for screw conveyors are an essential part that increases the efficiency of the system. Our hanger bearing assemblies are available in a wide range of bearing materials such as; hard iron, manganese, ceramic, wood, bronze, Babbitt, white nylon, nylatron, UHMW, and Gatke. The bearing material is important depending on the material being conveyed and the speed and service life needed.
Screw Conveyor Hanger Bearing Sizes
The below sizes are made for 220 and 226 hanger frames.|
Shaft Size/ Bearing Bore
|
Hard Iron
|
Manganese
|
Ceramic
|
Wood
|
Bronze
|
Babbitt
|
White Nylon
|
Nylatron
|
UHMW
|
Gatke
|
|---|---|---|---|---|---|---|---|---|---|---|
| 1" | 190-0141 | - | - | 192-0149 | 195-0146 | 191-0140 | 193-0148 | - | - | 196-0145 |
| 1-1/2" | 190-0216 | 190-0240 | 194-0501 | 192-0214 | 195-0211 | 191-0215 | 193-0213 | 194-0147 | 194-4099 | 196-0210 |
| 2" | 190-0281 | 190-0315 | 194-0527 | 192-0289 | 195-0286 | 191-0280 | 193-0288 | 194-0212 | 194-4552 | 196-0285 |
| 2-7/16" | 190-0356 | 190-0349 | 194-0543 | 192-0354 | 195-0351 | 191-0355 | 193-0353 | 194-0287 | 194-4701 | 196-0350 |
| 3" | 190-0422 | 190-0414 | 194-0568 | 192-0420 | 195-0427 | 191-0421 | 193-0429 | 194-0352 | 194-4925 | 196-0426 |
| 3-7/16" | 190-0497 | 190-0596 | 194-0584 | 192-0495 | 195-0492 | 191-0496 | 193-0494 | 194-0402 | 194-4974 | 196-0491 |
| 3-15/16" | 190-0554 | 190-0471 | 194-0600 | - | 195-0500 | - | - | - | 194-4990 | 196-0492 |
|
Shaft Size/ Bearing Bore
|
Hard Iron
|
Ceramic
|
Wood
|
Bronze
|
Babbitt
|
Gatke
|
|---|---|---|---|---|---|---|
| 1-1/2" | 180-0143 | 194-0502 | 182-0141 | 183-0140 | 181-0142 | 184-0149 |
| 2" | 180-0283 | 194-0528 | 182-0216 | 183-2015 | 181-0217 | 184-0214 |
| 2-7/16" | 180-0358 | 194-0544 | 182-0281 | 183-0280 | 181-0282 | 184-0289 |
| 3" | 180-0499 | 194-0569 | 182-0356 | 183-0355 | 181-0357 | 184-0354 |
| 3-7/16" | 180-0689 | 194-0585 | 182-0422 | 183-0421 | 181-0423 | 184-0420 |

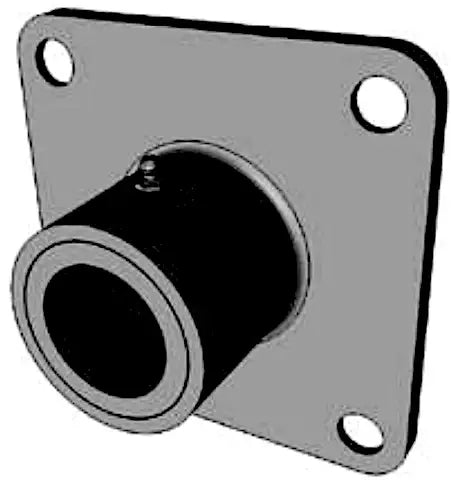

Transmission Flange Bearings
Transmission flange bearings are manufactured of high-grade fabricated steel and feature machine-finished facings and backing for precise installation and operation. Available in either bronze or Babbitt bearing styles, these bearings are made for heavy-duty applications and also have a grease fitting that dispurses greases accurately through the bearing.
Screw Conveyor Flange Bearing Sizes
|
Shaft Size/ Bearing Bore
|
Babbitt Part #
|
Bronze Part #
|
(A)
|
(B)
|
(C)
|
(D)
|
(E)
|
(F)
|
(H)
|
(J)
|
Weight (LBS)
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1" | 205-0284 | 205-1126 | 4" | 3-5/16" | 3/16" | 1-7/16" | 1-5/8" | 2" | 3/8" | - | 3.0 |
| 1-7/16" | 205-0359 | 205-1191 | 5-1/8" | 4" | 5/16" | 2-11/16" | 3" | 2-3/8" | 7/16" | 1-1/16" | 6.5 |
| 1-1/2" | 205-0425 | 205-1266 | 5-1/8" | 4" | 5/16" | 2-11/16" | 3" | 2-3/8" | 7/16" | 1-1/16" | 6.5 |
| 1-15/16" | 205-0490 | 205-1332 | 6-3/8" | 5-1/8" | 3/8" | 3-5/8" | 4" | 2-7/8" | 9/16" | 1-7/8" | 13.0 |
| 2" | 205-0565 | 205-1407 | 6-3/8" | 5-1/8" | 3/8" | 3-5/8" | 4" | 2-7/8" | 9/16" | 1-7/8" | 13.0 |
| 2-7/16" | 205-0631 | 205-1472 | 6-7/8" | 5-5/8" | 3/8" | 4-5/8" | 5" | 3-1/2" | 9/16" | 2-3/8" | 20.0 |
| 2-11/16" | 205-0706 | 205-1548 | 7-3/4" | 6" | 1/2" | 5" | 5-1/2" | 4" | 3/4" | 2-3/4" | 28.0 |
| 2-15/16" | 205-0771 | 205-1613 | 7-3/4" | 6" | 1/2" | 5-1/2" | 6" | 4" | 3/4" | 3" | 32.0 |
| 3" | 205-0847 | 205-1688 | 7-3/4" | 6" | 1/2" | 5-1/2" | 6" | 4" | 3/4" | 3" | 32.0 |
| 3-7/16" | 205-0912 | 205-1753 | 8-7/16" | 6-3/4" | 1/2" | 6" | 6-1/2" | 41/2" | 3/4" | 3-7/16" | 39.0 |
