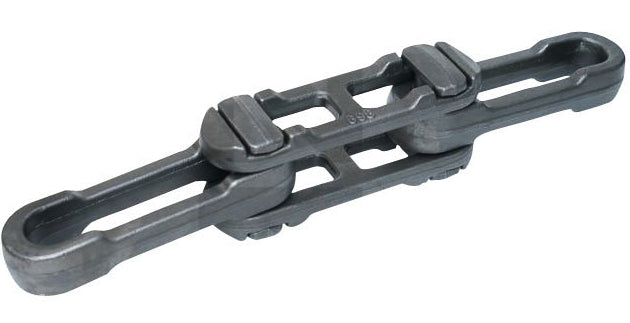

Drop-Forged Rivetless Chain
A chain's quality is only as good as its design and construction. Make a solid purchase with drop-forged chain links from USA Roller Chain & Sprockets. Choose from a variety of sizes and weight limits. An X-348 drop-forged rivetless chain keeps any automated machine working well into the day or night.
USA Roller Chain is different than any other supplier you'll encounter in the industry. Are you wondering about which overhead conveyor chain to select? We'll go over your application and specifications. There's no drop-forged rivetless chain that cannot solve a mechanical dilemma. Your system benefits from pitch control that's built into the X458 rivetless chain. The chain remains flexible as it moves around your mechanical parts, but it has hardened sections where it counts. Select between alloy and carbon steel as you upgrade your system. USA Roller Chain improves your production line, service center and conveyor setups with chain links that last.

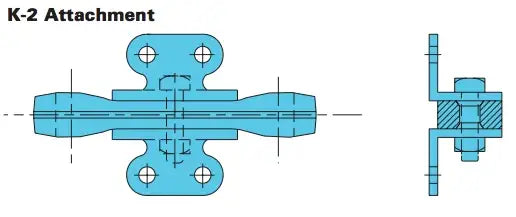

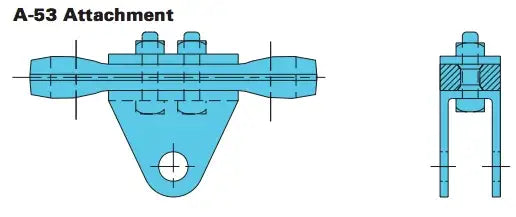

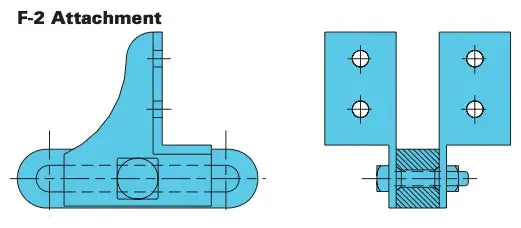

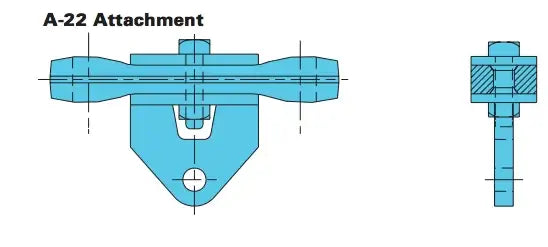

Rivetless drop-forged chain is manufactured with cast steel inner and outer links and heat-treated steel pins. This makes a chain that is high-strength, corrosion resistant, and extremely functional! This chain can be found in car washes, automotive manufacturing, trolley systems, as well as general and overhead conveying systems. We also stock standard attachments for these chains and sprockets, to get a quote please contact us and we will be happy to assist you!
| Size | (P) | (D) | (E) | (F) | (T) | (T1) | (X) | (B) | Ultimate Strength | Weight (Per Ft) |
|---|---|---|---|---|---|---|---|---|---|---|
| X348 | 3.031" | 0.500" | 1.75" | 1.06" | 0.41" | 0.50" | 0.75" | 0.53" | 24,000 LBS | 2.2 LBS |
| X458 | 4.031" | 0.625" | 2.19" | 1.44" | 0.48" | 0.66" | 1.02" | 0.69" | 48,000 LBS | 3.2 LBS |
| 468 | 4.031" | 0.750" | 3.31" | 1.88" | 0.45" | 1.16" | 1.62" | 0.88" | 70,000 LBS | 7.5 LBS |
| X658 | 6.031" | 0.620" | 2.19" | 1.41" | 0.33" | 0.66" | 1.02" | 0.69" | 48,000 LBS | 2.6 LBS |
| X678 | 6.031" | 0.880" | 3.03" | 2.00" | 0.72" | 0.84" | 1.31" | 1.00" | 85,000 LBS | 6.7 LBS |
| 698 | 6.031" | 1.120" | 3.75" | 2.69" | 0.59" | 1.03" | 1.56" | 1.25" | 130,000 LBS | 11.4 LBS |
| 998 | 9.031" | 1.120" | 3.88" | 2.52" | 0.62" | 1.00" | 1.56" | 1.12" | 130,000 LBS | 9.0 LBS |
| 9118 | 9.031" | 1.380" | 4.88" | 3.12" | 0.75" | 1.38" | 2.00" | 1.50" | 220,000 LBS | 16.0 LBS |
| 9148 | 9.031" | 1.750" | 5.84" | 3.78" | 0.81" | 1.62" | 2.50" | 1.50" | 300,000 LBS | 27.0 LBS |
To get a quote on Rivetless Drop Forged Chains fill out the request for quote form and someone from our customer service team will contact you.
