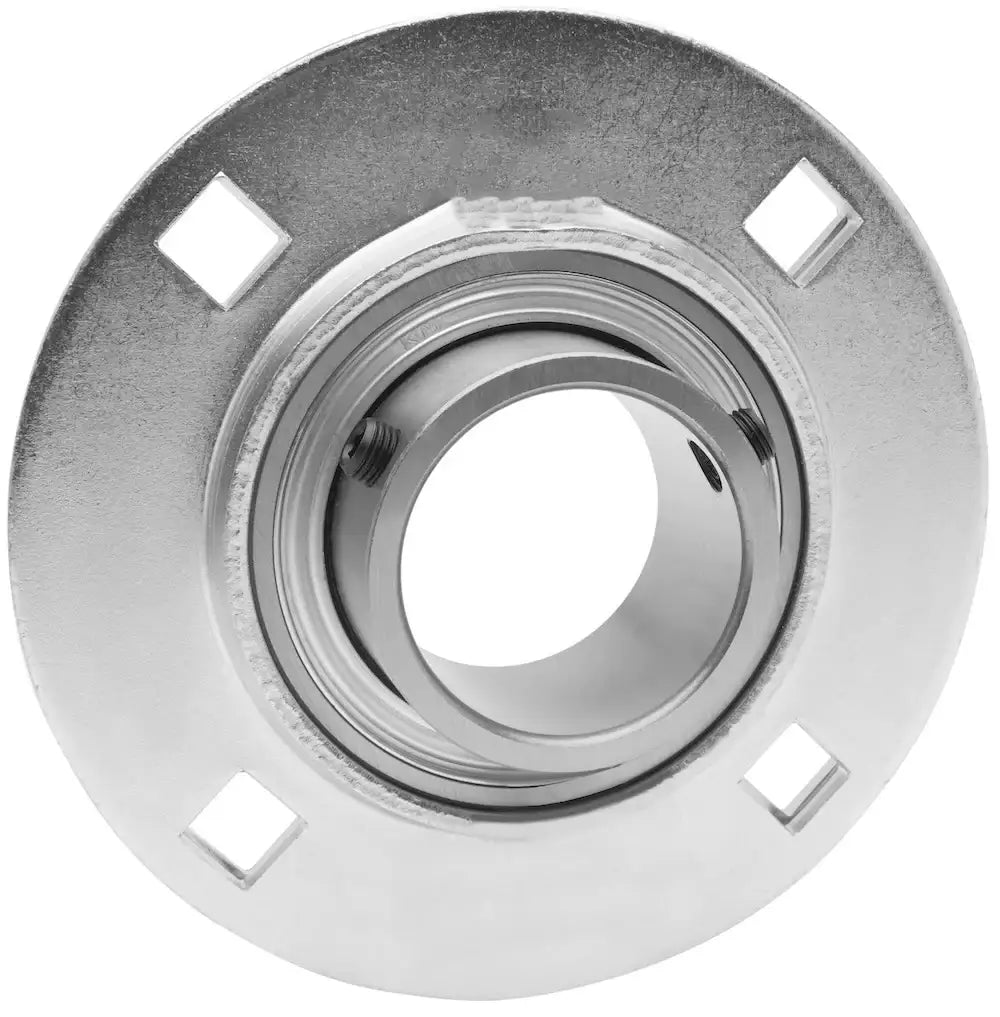

SBPF210 Stamped Steel 4-Bolt Flange Bearing | 50mm Bearing

SBPF210 stamped steel bearing is a 4-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 50mm insert bearing that utilizes set screws for securing onto a shaft. SBPF210 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the four-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing four mounting holes, the SBPF210 50mm bearing has incredible holding power and stability. Additionally, our SBPF210 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SBPF210 bearing, contact our customer support team, and we will be happy to assist you!

SBPF210 Bearing Dimensions

• Part #: SBPF210
• Bearing ID: 50mm
• Dimension (a): 6-3/16"
• Dimension (e): 5"
• Dimension (g): 5/32"
• Dimension (c): 7/8"
• Dimension (s): 1/2"
• Dimension (f): 4-1/64"
• Dimension (Bi): 1.688"
• Dimension (n): 0.391"
• Bolt Size: 1/2"
• Number of Bolt Holes: 4
• Insert Bearing #: SB210
• Housing #: PF210
• Weight: 3.25 LBS
