Power Transmission > Bearings > Stamped Steel Bearings > Stamped Steel Flange Bearings

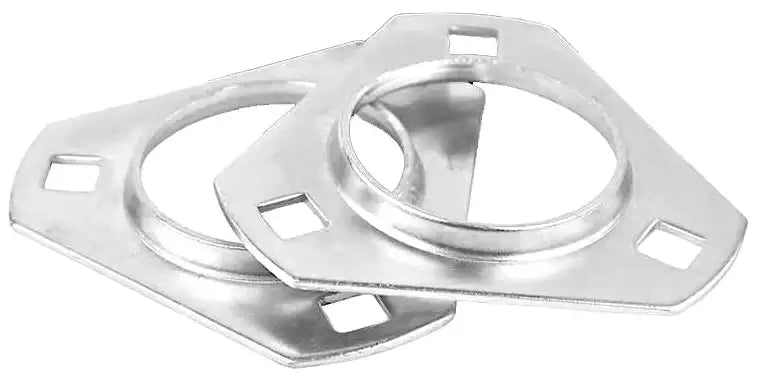

PFT203 Stamped Steel 3-Bolt Flange Bearing Housing
Note:
Custom Cut to Length Chain Also Available
$6.12
SKU: 5652-PFT203-HOUSING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
PFT203 Stamped Steel 3-Bolt Flange Bearing Housing Features
PFT203 Stamped Steel 3-Bolt Flange Bearing Housing Specifications
PFT203 bearing housing is designed to encase a ball bearing insert bearing and is a stamped steel 3-bolt triangle flange bearing housing. Our PFT203 housing is precision stamped from high-quality steel for easy fitment along with installation; the housing is also zinc plated for protection against corrosion. The combination of precision stamping and high-quality steel material creates a PFT203 flange bearing housing that will impress. Three-bolt stamped steel flange bearings are utilized in a wide range of light-duty agricultural and industrial applications and are more economical than their cast steel counterparts. For additional information or to get a quote on our PFT203 housings, contact our customer support team, and we will be happy to assist you!
PFT203 Housing Dimensions
- Housing Part #: PFT203
- For Bearing IDs: 1/2", 5/8"
- Dimension (A): 2-23/32"
- Dimension (B): 1-1/8"
- Dimension (C): 13/16"
- Dimension (D): 9/32" (+/-0.005")
- Dimension (E): 2-1/2"
- Dimension (F): 9/32"
- Dimension (G): 0.075"
- Dimension (H): 40mm
- Min. Frame Opening: 1-15/16"
- Housing Part #: PFT203
- For Bearing IDs: 1/2", 5/8"
- Dimension (A): 2-23/32"
- Dimension (B): 1-1/8"
- Dimension (C): 13/16"
- Dimension (D): 9/32" (+/-0.005")
- Dimension (E): 2-1/2"
- Dimension (F): 9/32"
- Dimension (G): 0.075"
- Dimension (H): 40mm
- Min. Frame Opening: 1-15/16"
