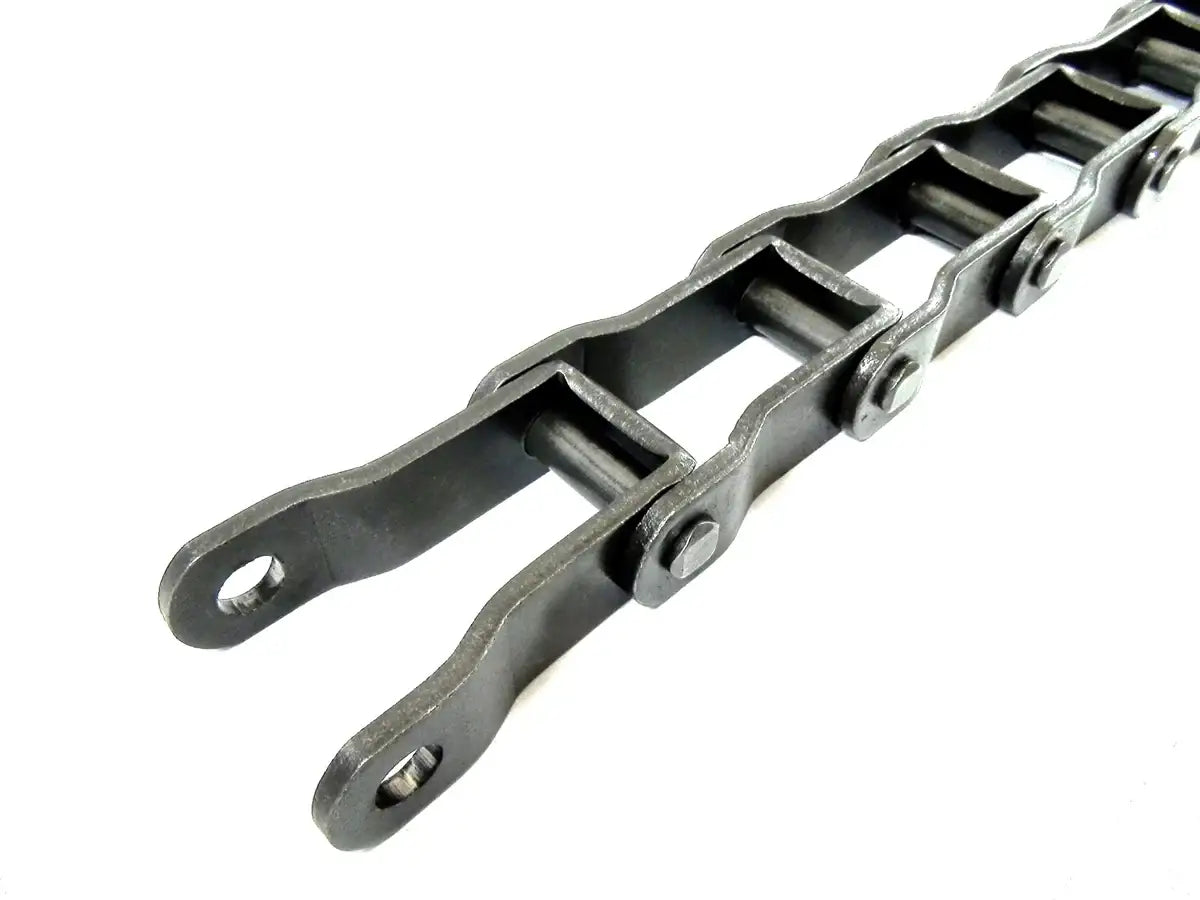

600 Class Pintle Chain
Our 600-class pintle chains offer superior performance, strength, and durability compared to other 600-class steel pintle chains. These are the most commonly used type of pintle chains because they offer such high strengths and long operation. These chains are typically found in agricultural applications, sand spreaders, manure spreaders, salt spreaders, conveyors, forage harvesters, baggers, live bottom trailers, and many more applications. If you need a complete trailer assembly with welded attachments or slats, we can provide those; we also stock 600 class pintle chain sprockets, attachments, and chain breakers.Our 600-Class Pintle Chain Benefits:
- Fully heat-treated parts
- Quad-staked pins
- Open barrel design
- Smooth operation
| Chain Size | Pitch | Ultimate Strength | Sidebar Height (B) | Sidebar Thickness (C) | Pin Diameter (D) | Weight |
|---|---|---|---|---|---|---|
| 1.664" | 12,500 LBS | 0.720" | 0.125" | 0.281" | 1.05 LBS/ FT | |
| 2.313" | 14,000 LBS | 0.875" | 0.125" | 0.312" | 1.17 LBS/ FT | |
| 2.250" | 23,000 LBS | 0.938" | 0.170" | 0.437" | 1.86 LBS/ FT | |
| 2.250" | 28,000 LBS | 1.050" | 0.225" | 0.465" | 2.8 LBS/ FT | |
| 2.250" | 20,600 LBS | 0.937" | 0.170" | 0.375" | 1.81 LBS/ FT | |
| 2.609" | 29,000 LBS | 1.063" | 0.200" | 0.437" | 2.3 LBS/ FT | |
| 2.609" | 38,000 LBS | 1.138" | 0.252" | 0.500" | 3.32 LBS/ FT | |
| 2.609" | 38,000 LBS | 1.138" | 0.252" | 0.500" | 3.32 LBS/ FT | |
| 3.075" | 52,000 LBS | 1.500" | 0.315" | 0.625" | 5.65 LBS/ FT | |
| 4.000" | 50,000 LBS | 1.500" | 0.310" | 0.625" | 5.5 LBS/ FT |
Pintle Chain Cross-Reference
| Part# | Manufacture 1 | Manufacture 2 | Manufacture 3 |
|---|---|---|---|
| 662 | D662 Pintle Chain | AL662 Pintle Chain | P662 Pintle Chain |
| 667H | D667H Pintle Chain | AL667H Pintle Chain | P667H Pintle Chain |
| 667X | D667X Pintle Chain | AL667X Pintle Chain | P667X Pintle Chain |
| 667XH | D667XH Pintle Chain | AL667XH Pintle Chain | P667XH Pintle Chain |
| 88K | D88K Pintle Chain | AL88K Pintle Chain | P88K Pintle Chain |
| 88C | D88C Pintle Chain | AL88C Pintle Chain | P88C Pintle Chain |
| 88XH | D88XH Pintle Chain | AL88XH Pintle Chain | P88XH Pintle Chain |
We offer an extensive range of attachments for 600-class pintle chains. Our standard attachments include AE, AES, AK1, AS, SEF, G30S, G38, G50, K1, KG30S, KS and more. We stock pre-assembled standard attachment pintle chains and can supply a complete custom attachment chain with the specific attachment and specific spacing within a few days.
600-Class Steel Pintle Chain Sprockets
Our 600 class pintle chain sprocket inventory ranges in tooth count, hub type (A-plate, B-Hub, Chub), bore size, and sprocket material (cast or steel). Also if we don't have the exact sprocket you need in stock or if the sprocket is a custom part we can manufacture it!
