Wastewater Chain

Chain has been used in wastewater treatment facilities on various conveying and drives applications since the 1960s. The earliest types of wastewater chain used was cast material 400-class and 700-class series pintle chains. Since then, there have updates and improvements to the chains that are used in wastewater facilities. Stainless steel was later introduced and is the longest-lasting wastewater chain available. Being manufactured from a combination of 300-series and 400-series stainless steel materials the chain offers excellent strength and outstanding anti-corrosive properties. Typically there will be an SS, HB, MSS, or SAV in front of the chain size if it is made from stainless material. Another update introduced in the 1980s was the use of welded steel chain in wastewater applications; currently, the only wastewater welded steel chain in use today is WH720S collector chain. Most recently, in 1990 the implementation of non-metallic Engineered plastic wastewater chain is used. This chain has the benefits of being light-weight, energy-saving, extremely anti-corrosive, and high-strength. All materials are available in the conveying, collecting, and drive chain application sizes.

Rectangular Clarifier Wastewater Chain

Rectangular clarifiers are used in many water treatment facilities today due to their high-capacity, less short-circuiting, and smaller land imprint versus the center-feed/ peripheral overflow circular clarifiers (estimated 21% less). These systems use a drive chain and conveying chain with flights (scrapers) installed at a fixed spacing (typically 10ft/ 3 meters), this accomplishes both scum and sludge removal. We supply all associated components for a complete chain replacement (including sprockets, bearings, pumps, motors, and reducers).

Parts List:
Flights (specify dimensions)

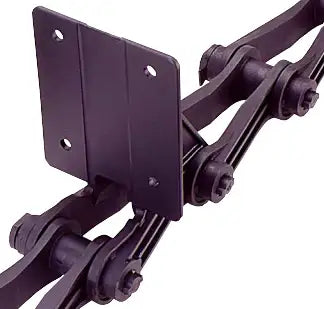

Flight Attachments
Filler Blocks
Hardware
Return Wear Shoe
Carry Wear Shoe

The flights (scrapers) scrape the bottom of the tank and present consistent sludge which flows into the hoppers, we recommend using self-dumping hoppers for safety and improved productivity. When the flights travel to the surface of the rectangular tank along the collector chain, the scum and foam are pulled by the flights to the scum trough also known as a scum skimmer pipe. Generally, the chain and flights will move across the collector at a consistent 2ft (600mm) per minute.

Collector Wastewater Chain

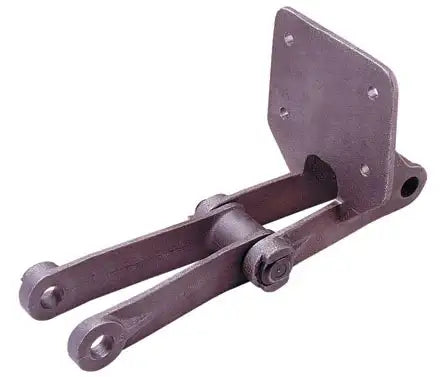

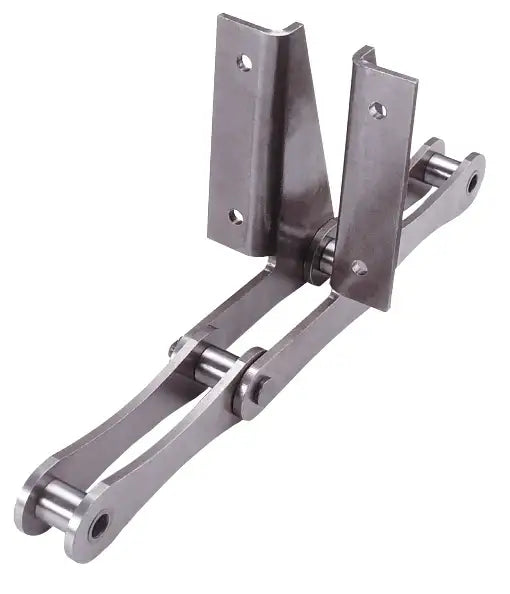

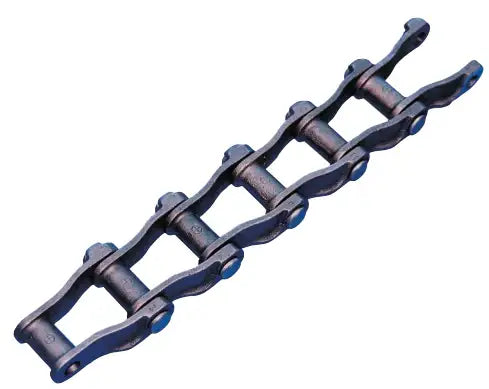

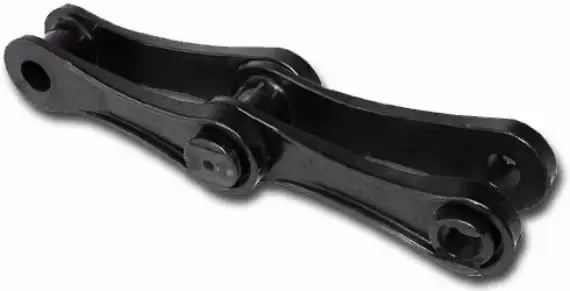

700-Class Pintle Chains

Chain Size	Pitch	Ultimate Strength	Pin Diameter (E)	Sidebar Height (H)	Barrel Diameter (D)	Weight
720	6.00"	28,600 LBS	0.690"	1.500"	1.380"	4.2 LBS/ FT
NM720	6.00"	6,000 LBS	0.875"	2.220"	1.465"	1.5 LBS/ FT
720S	6.00"	40,000 LBS	0.750"	1.560"	1.440"	5.2 LBS/ FT
MS720S	6.00"	42,000 LBS	0.750"	1.560"	1.440"	6.2 LBS/ FT
SS715	6.00"	33,000 LBS	0.562"	1.620"	1.880"	3.9 LBS/ FT
SS700	6.00"	33,000 LBS	0.569"	1.891"	1.578"	3.9 LBS/ FT
SS701	5.844"	19,000 LBS	0.453"	1.453"	1.219"	2.2 LBS/ FT
730	6.00"	40,000 LBS	0.750"	1.750"	1.500"	6.0 LBS/ FT
MS730	6.00"	40,000 LBS	0.750"	1.750"	1.500"	6.3 LBS/ FT
788	2.609"	22,750 LBS	0.560"	1.190"	0.880"	4.6 LBS/ FT
NCS720S	6.00"	6,000 LBS	0.93"	2.03"	1.440"	1.5 LBS/ FT
NM720S	6.00"	6,500 LBS	0.932"	2.250"	1.438"	1.6 LBS/ FT
SAV715	6.00"	33,000 LBS	0.569"	1-37/64"	1.024"	3.9 LBS/ FT
SAV709	5.844"	19,000 LBS	0.453"	1-7/32"	0.882"	2.2 LBS/ FT
720SC	6.000"	37,500 LBS	0.750"	1.590"	1.440"	6 LBS/ FT
730SC	6.000"	37,500 LBS	0.750"	1.750"	1.500"	6 LBS/ FT
WH720S	6.000"	42,500 LBS	0.750"	1.560"	1.440"	5.7 LBS/ FT
SS720	6.000"	22,000 LBS	0.690"	1.500"	1.380"	4.2 LBS/ FT
PM720S	6.000"	6,000 LBS	0.750"	1.560"	1.440"	1.4 LBS/ FT

S810 Collector Chain

Chain Size	Ultimate Strength	(P)	(D6)	(L)	(H)	(S)	(F1)	Weight (LBS/FT)
S810	10.00 kG	152.4mm	22.2mm	22.0mm	33.0mm	4.5mm	11.3mm	3.2

S810 Chain With F4 Attachment

Size	(F2)	(F3)	(F5)	(X)	(F)	(F4)	(F1)	(O)	(S)	Additional Weight
S810-SF4	100mm	140mm	76mm	155mm	65mm	70mm	22mm	14mm	4.5mm	3.2 kG/ Ea

B6729 Chain

400-Class Pintle Chain

Chain Size	Pitch	Ultimate Strength	Pin Diameter (E)	Sidebar Height (F)	Barrel Diameter (H)	Weight
442	1.375"	7,800 LBS	0.31"	0.75"	0.56"	1.4 LBS/ FT
445	1.603"	7,800 LBS	0.31"	0.75"	0.62"	1.5 LBS/ FT
452	1.506"	9,100 LBS	0.38"	0.84"	0.69"	2.0 LBS/ FT
455	1.630"	9,490 LBS	0.38"	0.84"	0.62"	1.9 LBS/ FT
462	1.634"	11,700 LBS	0.44"	0.94"	0.72"	2.5 LBS/ FT
477	2.308"	12,480 LBS	0.44"	1.00"	0.72"	2.0 LBS/ FT
488	2.609"	14,300 LBS	0.44"	0.94"	0.88"	2.9 LBS/ FT
4103	3.075"	28,600 LBS	0.75"	1.50"	1.25"	5.7 LBS/ FT
4124	4.060"	33,000 LBS	0.81"	1.75"	1.72"	8.5 LBS/ FT

Note: Additional information and dimensions available on product pages.

Wastewater Drive Chain

Drive chains are offset-designed and are what drives the whole system in rectangular clarifiers. These chains are made from non-metallic engineered plastic with stainless steel pins (PM, NH, or NM abbreviation) cast steel (H abbreviation) or stainless steel (SS, HB, or MSS abbreviation) depending on the strength requirements of the facility.

Chain Size	Pitch	Overall Width (A)	(E)	(F)	(B)	(C)	(D)	Ultimate Strength (LBS)	Weight (LBS/ FT)
SS78	2.609"	2.700"	1.190"	1.140"	1.620"	0.500"	0.880"	24,000	3.90
PM78	2.609"	2.970"	1.110"	1.140"	1.630"	0.425"	0.875"	4,000	1.40
H78	2.609"	3.310"	1.120"	1.120"	1.880"	0.500"	0.880"	22,220	4.2
PM82	3.075"	3.240"	1.125"	1.500"	2.000"	0.250"	1.250"	5,000	2.20
H82	3.075"	3.880"	1.250"	1.250"	2.120"	0.562"	1.220"	27,000	5.5

Note: Additional information and dimensions available on product pages.

Traveling Water Screen Wastewater Chain

Traveling water screen chains are manufactured in a way that allows for attachments to be closely spaced together and are a conveyor style chain. Typically these chains are available in zinc-coated, stainless steel, engineered plastic, or a mixture of the three depending on the specific needs of the applications.

Hollow Pin Chains for Traveling Screens
Hollow pin style chains offer a ready facility for placing attachments onto the outer plates through the hollow pin. The attachments can be bolted up tight against the hollow pin rivet or left in a free manner to pivot.

Chain Size	Pitch (P)	Breaking Load	Heat-Treated Breaking Load	Weight (kG/ M)	(D2)	(D4)	Flange Thickness	(D5)	(F1)	(L)	(S1)	(S2)	(H)	(D6)	(D7)
HP27/0508/P	50.8mm	27 kN	54 kN	3.50	31.75mm	40mm	5mm	17mm	37mm	15mm	4mm	4mm	25mm	14mm	10.2mm
HP27/0635/P	63.5mm	27 kN	54 kN	3.13	31.75mm	40mm	5mm	17mm	37mm	15mm	4mm	4mm	25mm	14mm	10.2mm
HP27/0762/P	76.2mm	27 kN	54 kN	2.88	31.75mm	40mm	5mm	17mm	37mm	15mm	4mm	4mm	25mm	14mm	10.2mm
HP27/0889/P	88.9mm	27 kN	54 kN	2.71	31.75mm	40mm	5mm	17mm	37mm	15mm	4mm	4mm	25mm	14mm	10.2mm
HP27/1016/P	101.6mm	27 kN	54 kN	2.58	31.75mm	40mm	5mm	17mm	37mm	15mm	4mm	4mm	25mm	14mm	10.2mm
HP27/1270/P	127.0mm	27 kN	54 kN	2.39	31.75mm	40mm	5mm	17mm	37mm	15mm	4mm	4mm	25mm	14mm	10.2mm
HP27/1524/P	152.4mm	27 kN	54 kN	2.27	31.75mm	40mm	5mm	17mm	37mm	15mm	4mm	4mm	25mm	14mm	10.2mm
HP55/0762/P	76.2mm	55 kN	110 kN	6.93	47.5mm	60mm	6mm	23mm	45mm	19mm	5mm	4mm	40mm	19mm	13.2mm
HP55/0889/P	88.9mm	55 kN	110 kN	6.35	47.5mm	60mm	6mm	23mm	45mm	19mm	5mm	4mm	40mm	19mm	13.2mm
HP55/1016/P	101.6mm	55 kN	110 kN	5.91	47.5mm	60mm	6mm	23mm	45mm	19mm	5mm	4mm	40mm	19mm	13.2mm
HP55/1270/P	127.0mm	55 kN	110 kN	5.30	47.5mm	60mm	6mm	23mm	45mm	19mm	5mm	4mm	40mm	19mm	13.2mm
HP55/1524/P	152.4mm	55 kN	110 kN	4.89	47.5mm	60mm	6mm	23mm	45mm	19mm	5mm	4mm	40mm	19mm	13.2mm
HP55/1778/P	177.8mm	55 kN	110 kN	4.60	47.5mm	60mm	6mm	23mm	45mm	19mm	5mm	4mm	40mm	19mm	13.2mm
HP55/2032/P	203.2mm	55 kN	110 kN	4.39	47.5mm	60mm	6mm	23mm	45mm	19mm	5mm	4mm	40mm	19mm	13.2mm
HP110/1016/P	101.6mm	110 kN	200 kN	12.14	66.7mm	82mm	9mm	33mm	58mm	26mm	7mm	5mm	50mm	26.9mm	20.2mm
HP110/1270/P	127.0mm	110 kN	200 kN	11.21	66.7mm	82mm	9mm	33mm	58mm	26mm	7mm	5mm	50mm	26.9mm	20.2mm
HP110/1524/P	152.4mm	110 kN	200 kN	10.91	66.7mm	82mm	9mm	33mm	58mm	26mm	7mm	5mm	50mm	26.9mm	20.2mm
HP110/1778/P	177.8mm	110 kN	200 kN	9.46	66.7mm	82mm	9mm	33mm	58mm	26mm	7mm	5mm	50mm	26.9mm	20.2mm
HP110/2032/P	203.2mm	110 kN	200 kN	8.92	66.7mm	82mm	9mm	33mm	58mm	26mm	7mm	5mm	50mm	26.9mm	20.2mm
HP110/2286/P	228.6mm	110 kN	200 kN	8.50	66.7mm	82mm	9mm	33mm	58mm	26mm	7mm	5mm	50mm	26.9mm	20.2mm
HP110/2540/P	254.0mm	110 kN	200 kN	8.10	66.7mm	82mm	9mm	33mm	58mm	26mm	7mm	5mm	50mm	26.9mm	20.2mm
HP160/1524/P	152.4mm	160 kN	320 kN	22.18	88.9mm	114mm	10.5mm	38mm	78mm	38mm	8mm	8mm	60mm	32mm	22.5mm
HP160/1778/P	177.8mm	160 kN	320 kN	22.18	88.9mm	114mm	10.5mm	38mm	78mm	38mm	8mm	8mm	60mm	32mm	22.5mm
HP160/2032/P	203.2mm	160 kN	320 kN	18.68	88.9mm	114mm	10.5mm	38mm	78mm	38mm	8mm	8mm	60mm	32mm	22.5mm
HP160/2540/P	254.0mm	160 kN	320 kN	16.60	88.9mm	114mm	10.5mm	38mm	78mm	38mm	8mm	8mm	60mm	32mm	22.5mm
HP160/3048/P	304.8mm	160 kN	320 kN	15.19	88.9mm	114mm	10.5mm	38mm	78mm	38mm	8mm	8mm	60mm	32mm	22.5mm

Type A Traveling Water Screen Chains

Chain Size	Style	(P)	(D2)	(E)	(D5)	(S1)	(D6)	(L)	(H)	(S)	(F1)	Tensile Strength (LBS)	Weight (LBS/FT)
R2929	A	24.00"	3.75"	1.63"	1.75"	2.00"	1.25"	1.69"	2.75"	0.38"	4.25"	66,000	12.3
R2929H	A	24.00"	3.75"	1.63"	1.75"	1.94"	1.25"	1.69"	2.75"	0.50"	4.75"	88,000	15.1

Type B Traveling Water Screen Chains

Chain Size	Style	(P)	(D2)	(E)	(D5)	(S1)	(D6)	(L)	(H)	(S)	(F1)	(P1)	Tensile Strength (LBS)	Weight (LBS/FT)
R1960	B	24.00"	4.00"	1.50"	1.75"	1.31"	1.21"	1.56"	3.00"	0.38"	3.63"	11.50"	75,000	12.3
R1960H	B	24.00"	4.00"	1.50"	1.75"	1.31"	1.21"	1.56"	3.00"	0.50"	4.13"	11.50"	100,000	15.4

Type C Traveling Water Screen Chains

Chain Size	Style	(P)	(D2)	(E)	(D5)	(D6)	(L)	(H)	(S)	(F1)	Tensile Strength (LBS)	Weight (LBS/FT)
R3260	C	24.00"	3.75"	1.63"	1.75"	1.25"	1.69"	2.75"	0.38"	4.19"	57,000	15.8
R3260H	C	24.00"	3.75"	1.63"	1.75"	1.25"	1.69"	2.75"	0.50"	4.75"	75,000	18.6
3232	C	24.00"	3.75"	--	--	1.25"	1.656"	2.75"	0.375"	4.11"	56,000	15.0

B5879, B5883 Traveling Water Screen Chains

Chain Size	(P)	(D5)	(D6)	(L)	(H)	(S)	(F1)	(K)	(T)	(P1)	(W)	Tensile Strength (LBS)	Weight (LBS/FT)
B5879	200.00mm	16.00mm	17.80mm	35.00mm	45.00mm	6.00mm	80.00mm	12.00mm	75.00mm	85.00mm	40.00mm	40,000	4.05
B5883	200.00mm	18.00mm	11.80mm	28.00mm	35.00mm	5.00mm	66.00mm	12.00mm	75.00mm	85.00mm	40.00mm	24,000	2.80

Forged Link Wastewater Chains

This type of chain has one of the most reliable conveying mediums in the industry, offering a combination of versatility, strength, and abrasion resistance. These chains. originally of europian origin, are now established here in the USA and the rest of the world because of their highly-effective design and operation. With a wide variety of materials, heat treatments, and flight formats the chain is proven in both drag an en masse handling applications.
Standard Series
Material Options:
TN - Manganese Chrome Alloy Steel (20MnCr5) Case hardened
CN - Chrome Nickel Alloy Steel (18NiCoMo5) Case Hardened
CD- Chrome Molly Alloy Steel (42CrMo4) Hardened & Tempered

Chain Size	(P)	(T)	(C)	(S)	(F)	(R)	(D)	Breaking Load (TN)	Breaking Load (CN)	Breaking Load (CD)	Weight (kG/ M)
F10160	101.6mm	24mm	36mm	8mm	10mm	6mm	14mm	110 kN	120 kN	210 kN	3.50
F10160R	101.6mm	30mm	36mm	13mm	14mm	9mm	14mm	180 kN	195 kN	330 kN	4.80
F12514	125mm	30mm	36mm	13mm	14mm	10mm	16mm	163 kN	175 kN	290 kN	4.40
F12414	142mm	30mm	40mm	13mm	14mm	9mm	18mm	180 kN	195 kN	330 kN	4.90
F14218	142mm	42mm	50mm	19mm	20mm	11mm	25mm	290 kN	320 kN	550 kN	9.40
F14222	142mm	54mm	50mm	25mm	27mm	16mm	25mm	370 kN	400 kN	655 kN	12.20
F14226	142mm	62mm	50mm	28mm	30mm	15mm	25mm	440 kN	470 kN	790 kN	13.60
F16018	160mm	46mm	46mm	22mm	24mm	15mm	22mm	320 kN	342 kN	560 kN	9.30
F16025	160mm	50mm	53mm	23mm	25mm	13mm	25mm	370 kN	400 kN	655 kN	10.80
F20025	200mm	60mm	50mm	25mm	27mm	18mm	25mm	380 kN	410 kN	670 kN	11.30
F20028	200mm	66mm	60mm	30mm	32mm	20mm	30mm	500 kN	540 kN	900 kN	16.70
F21640	216mm	64mm	72mm	26mm	28mm	20mm	35mm	585 kN	630 kN	1,035 kN	20.10
F22040	220mm	64mm	72mm	26mm	28mm	20mm	35mm	585 kN	630 kN	1,035 kN	20.30
F22050	220mm	58mm	75mm	28mm	30mm	25mm	32mm	710 kN	760 kN	1,260 kN	19.10
F22060	220mm	71mm	75mm	31mm	33mm	21mm	35mm	735 kN	790 kN	1,300 kN	22.90
F25040	250mm	70mm	75mm	32mm	34mm	18mm	32mm	735 kN	860 kN	1,430 kN	18.80
F26035	260mm	65mm	75mm	31mm	33mm	20mm	32mm	840 kN	900 kN	1,480 kN	19.80
F26040	260mm	70mm	75mm	31mm	33mm	20mm	32mm	840 kN	900 kN	1,480 kN	21.00
F26045	260mm	78mm	75mm	35mm	37mm	20mm	32mm	930 kN	1000 kN	1,650 kN	21.80

Double Series
This series has a forged double clevis in which a scraper can be mounted to and retained by a U-bolt or standard fasteners. This allows for some built-in clearance between strands which eliminates any potential problems that may be associated with a mismatch. Double series chains also allow an improved discharge when conveying sticky materials.
Material Options:
TN - Manganese Chrome Alloy Steel (20MnCr5) Case hardened
CN - Chrome Nickel Alloy Steel (18NiCoMo5) Case Hardened
CD- Chrome Molly Alloy Steel (42CrMo4) Hardened & Tempered

Chain Size	(P)	(T)	(C)	(S)	(Z)	(G)	(D)	Breaking Load (TN)	Breaking Load (CN)	Breaking Load (CD)	Weight (kg/ M)
F142182	142mm	42mm	50mm	19mm	70mm	13mm	25mm	290 kN	320 kN	550 kN	11.80
F142262	142mm	62mm	50mm	28mm	87mm	13mm	25mm	440 kN	470 kN	790 kN	16.70
F160252	160mm	50mm	53mm	23mm	82mm	13mm	25mm	370 kN	400 kN	655 kN	13.60
F175402	175mm	72mm	60mm	30mm	95mm	16mm	30mm	540 kN	580 kN	955 kN	20.30
F200252	200mm	60mm	50mm	25mm	81mm	12mm	25mm	380 kN	410 kN	670 kN	13.00
F200402	200mm	70mm	60mm	30mm	95mm	13mm	30mm	540 kN	580 kN	955 kN	19.30
F250252	250mm	60mm	50mm	25mm	81mm	12mm	25mm	380 kN	410 kN	670 kN	12.00
F250402	250mm	70mm	60mm	30mm	95mm	13mm	30mm	540 kN	580 kN	955 kN	17.70
F250602	250mm	100mm	70mm	45mm	140mm	21mm	35mm	975 kN	1,050 kN	1,720 kN	35.20
