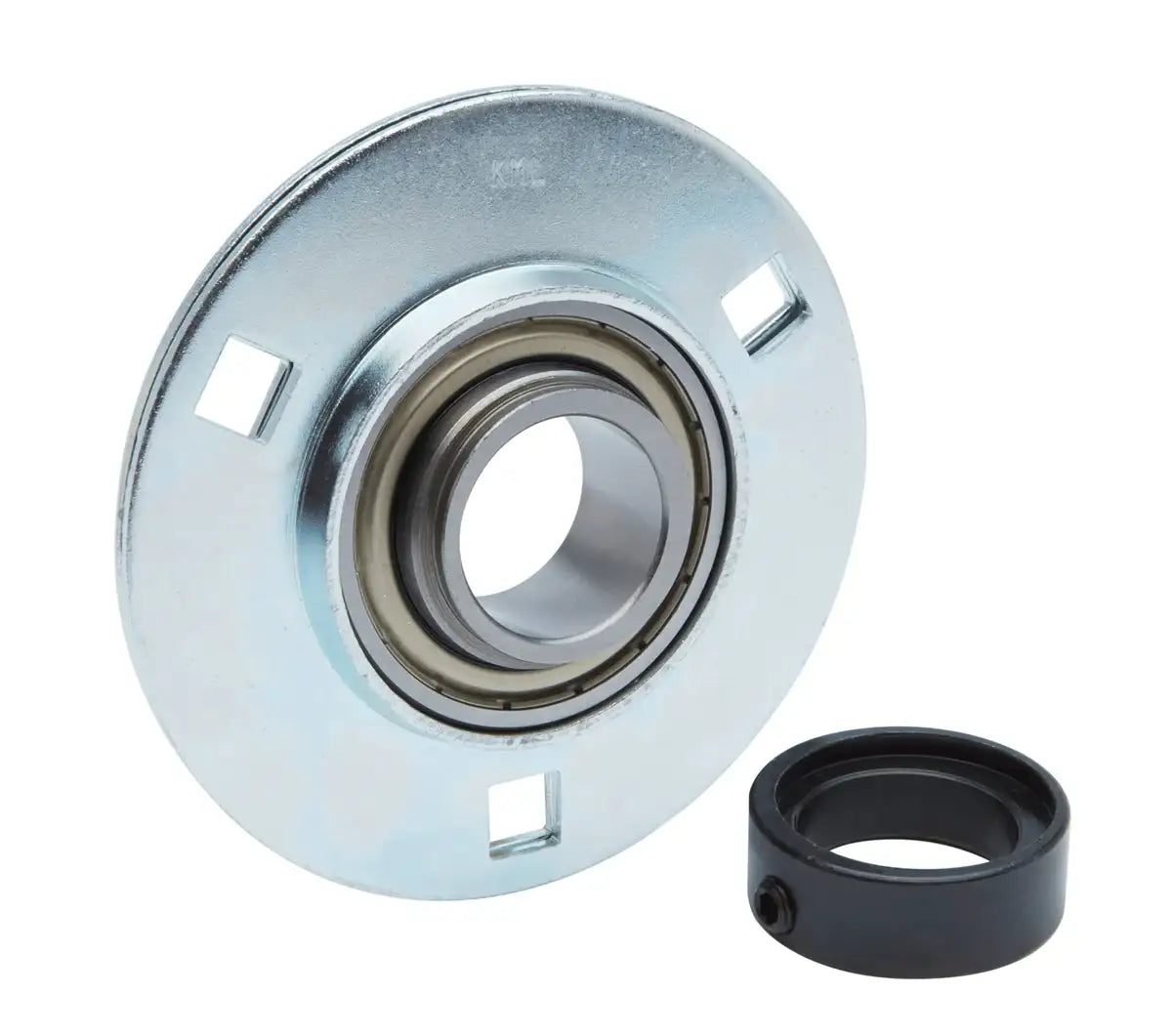

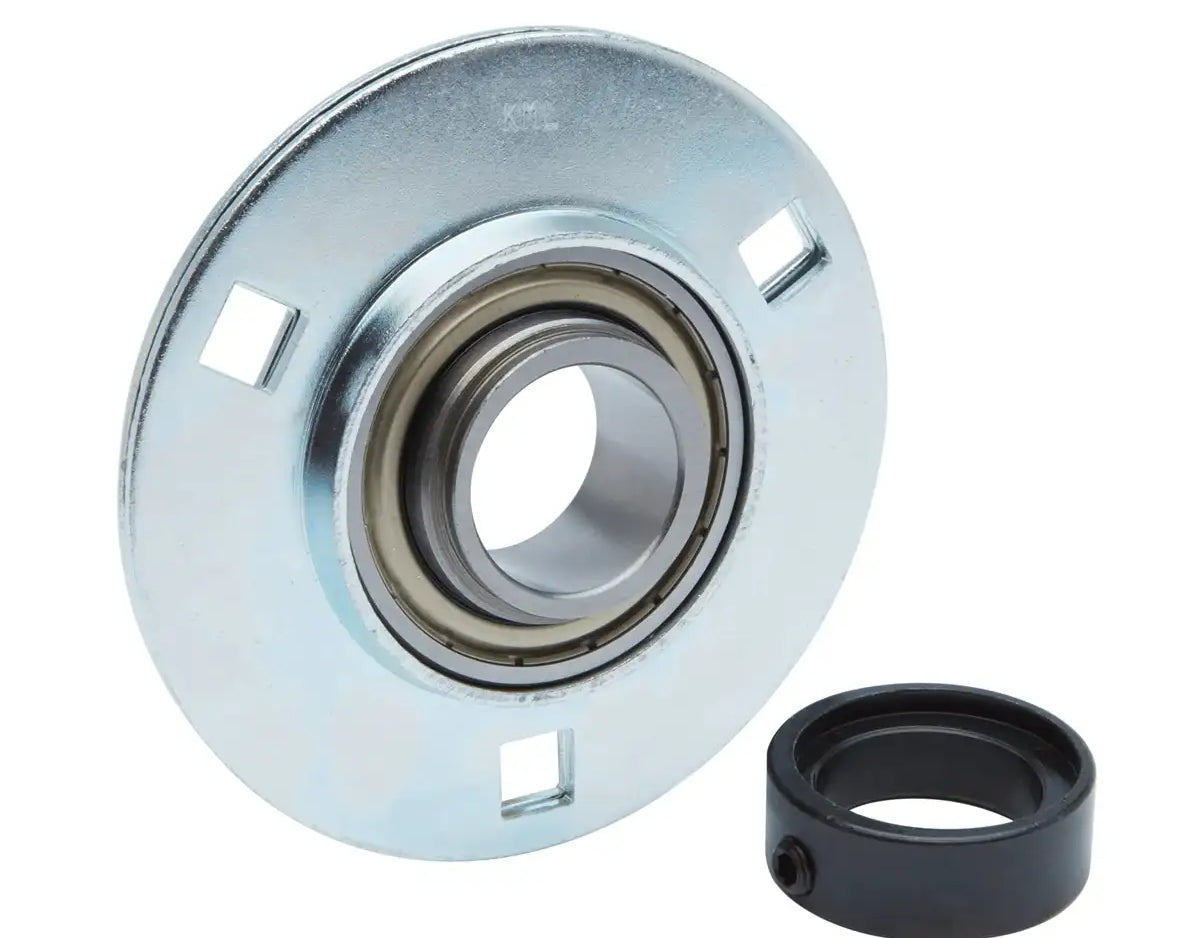

SAPF202-10 Stamped Steel 3-Bolt Flange Bearing | 5/8" Bearing
SAPF202-10 stamped steel bearing is a 3-bolt flange bearing designed for light-duty industrial and agricultural applications. The superior quality stamped steel housing encases a performance C3 precision 5/8" insert bearing that utilizes an eccentric locking collar for securing onto a shaft. SAPF202-10 bearings are more economical than their cast counterparts but offer excellent performance in bearing applications; the three-bolt flange stamped steel housing allows for great mounting when the shaft is positioned perpendicular to the bearing. Utilizing three mounting holes, the SAPF202-10 5/8" bearing has incredible holding power and stability. Additionally, our SAPF202-10 stamped steel bearing features a zinc plated housing for added protection against the elements in corrosive or outdoor applications. For more information or to get a quote on our SAPF202-10 bearing, contact our customer support team, and we will be happy to assist you!
SAPF202-10 Bearing Dimensions

- Part #: SAPF202-10
- Bearing ID: 5/8"
- Dimension (a): 3-3/16"
- Dimension (e): 2-33/64"
- Dimension (g): 5/64"
- Dimension (c): 9/16"
- Dimension (s): 9/32"
- Dimension (f): 1-59/64"
- Dimension (L): 1.126"
- Dimension (n): 0.236"
- Dimension (W): 1-1/8"
- Bolt Size: 1/4"
- Number of Bolt Holes: 3
- Insert Bearing #: SA202-810
- Housing #: PF203
- Weight: 0.68 LBS
- Part #: SAPF202-10
- Bearing ID: 5/8"
- Dimension (a): 3-3/16"
- Dimension (e): 2-33/64"
- Dimension (g): 5/64"
- Dimension (c): 9/16"
- Dimension (s): 9/32"
- Dimension (f): 1-59/64"
- Dimension (L): 1.126"
- Dimension (n): 0.236"
- Dimension (W): 1-1/8"
- Bolt Size: 1/4"
- Number of Bolt Holes: 3
- Insert Bearing #: SA202-810
- Housing #: PF203
- Weight: 0.68 LBS
