Multiple Strand Roller Chain
Multiple strand roller chains are designed to be the multiple stand count stronger than the ANSI or Metric equivalent. An example would be #80-2 double roller chain is "double" the strength as ANSI 80-1 single chain. Our multiple strand roller chains are sure to impress with industry-leading tensile strengths and performance factors. Supplying up to twelve (-12) strand roller chains we are sure to have the multiple strand roller chain for your application. Additionally, we supply corrosion resistant multiple strand roller chains such as stainless, nickel, and coated as well as multiple strand chain sprockets.

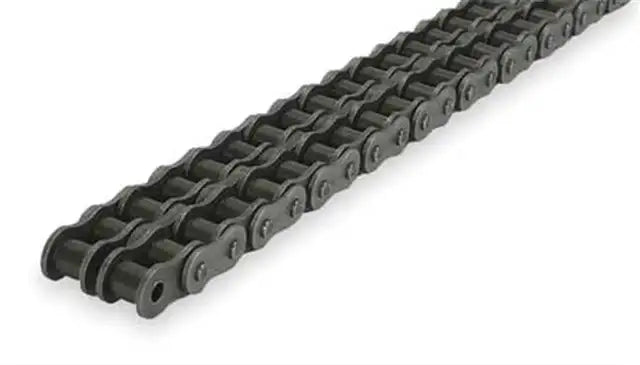

Double Multiple Strand Roller Chain
ANSI Sizes:
| Size | Pitch (P) | (d1) | (b1) | (d2) | (LR) | (Lc) | (h2) | (T) | (Pt) | Min. Tensile Strength | Average Tensile Strength | Max Working Load | Weight (LBS/ FT) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25-2 | 0.250" | 0.130" | 0.125" | 0.091" | 0.61" | 0.71" | 0.24" | 0.030" | 0.25" | 1595LBS | 1933LBS | 245LBS | 0.2 |
| 35-2 | 0.375" | 0.200" | 0.188" | 0.141" | 0.92" | 1.04" | 0.35" | 0.050" | 0.40" | 3591LBS | 4429LBS | 826LBS | 0.4 |
| 40-2 | 0.500" | 0.312" | 0.312" | 0.156" | 1.27" | 1.40" | 0.47" | 0.060" | 0.57" | 6409LBS | 8070LBS | 1405LBS | 0.8 |
| 50-2 | 0.625" | 0.400" | 0.375" | 0.200" | 1.57" | 1.72" | 0.59" | 0.080" | 0.71" | 10091LBS | 13061LBS | 2512LBS | 1.3 |
| 60-2 | 0.750" | 0.469" | 0.500" | 0.234" | 1.95" | 2.12" | 0.71" | 0.094" | 0.90" | 14455LBS | 18456LBS | 3454LBS | 2.0 |
| 80-2 | 1.000" | 0.625" | 0.625" | 0.312" | 2.49" | 2.69" | 0.94" | 0.125" | 1.15" | 25773LBS | 31876LBS | 5783LBS | 3.5 |
| 100-2 | 1.250" | 0.750" | 0.750" | 0.375" | 3.03" | 3.26" | 1.18" | 0.156" | 1.41" | 40227LBS | 49321LBS | 8867LBS | 5.2 |
| 120-2 | 1.500" | 0.875" | 1.000" | 0.437" | 3.82" | 4.09" | 1.41" | 0.187" | 1.79" | 57727LBS | 70790LBS | 11740LBS | 7.9 |
| 140-2 | 1.750" | 1.000" | 1.000" | 0.500" | 4.11" | 4.41" | 1.61" | 0.219" | 1.92" | 78364LBS | 96102LBS | 15721LBS | 10.2 |
| 160-2 | 2.000" | 1.125" | 1.250" | 0.562" | 4.90" | 5.24" | 1.88" | 0.250" | 2.31" | 103091LBS | 126428LBS | 20855LBS | 13.5 |
| 180-2 | 2.250" | 1.406" | 1.406" | 0.687" | 5.50" | 5.87" | 2.11" | 0.281" | 2.59" | 127386LBS | 156236LBS | 23381LBS | 19.6 |
| 200-2 | 2.500" | 1.562" | 1.500" | 0.781" | 5.98" | 6.38" | 2.36" | 0.312" | 2.82" | 160818LBS | 197240LBS | 28159LBS | 21.7 |
| 240-2 | 3.000" | 1.875" | 1.875" | 0.937" | 7.31" | 7.78" | 2.85 | 0.375" | 3.46" | 213955LBS | 282191LBS | 35992LBS | 30.4 |
Metric Sizes:
| Size | Pitch (P) | (K) | (W) | (R) | (D) | (F) | (T1) | (T2) | (H) | Weight (LBS/FT) |
|---|---|---|---|---|---|---|---|---|---|---|
| 04B-2 | 0.236" | 0.217" | 0.110" | 0.158" | 0.073" | 0.524" | -- | -- | 0.197" | 0.154 |
| 05B-2 | 0.315" | 0.222" | 0.118" | 0.197" | 0.091" | 0.571" | -- | -- | 0.280" | |
| 06B-2 | 0.375" | 0.403" | 0.225" | 0.250" | 0.129" | 0.941" | 0.039" | 0.051" | 0.323" | 0.496 |
| 08B-2 | 0.500" | 0.548" | 0.305" | 0.335" | 0.175" | 1.260" | 0.059" | 0.059" | 0.469" | 0.872 |
| 10B-2 | 0.625" | 0.653" | 0.380" | 0.400" | 0.200" | 1.457" | 0.059" | 0.059" | 0.579" | 1.127 |
| 12B-2 | 0.750" | 0.766" | 0.460" | 0.475" | 0.225" | 1.697" | 0.071" | 0.071" | 0.634" | 1.529 |
| 16B-2 | 1.000" | 1.255" | 0.670" | 0.625" | 0.326" | 2.756" | 0.126" | 0.157" | 0.819" | 3.433 |
| 20B-2 | 1.250" | 1.435" | 0.770" | 0.750" | 0.401" | 3.169" | 0.138" | 0.177" | 1.024" | 5.076 |
| 24B-2 | 1.500" | 1.904" | 1.000" | 1.000" | 0.576" | 4.217" | 0.197" | 0.236" | 1.224" | 9.321 |
| 28B-2 | 1.750" | 2.345" | 1.220" | 1.100" | 0.626" | 5.083" | -- | -- | 1.457" | 11.090 |
| 32B-2 | 2.000" | 2.305" | 1.220" | 1.150" | 0.701" | 5.102" | -- | -- | 1.662" | 14.029 |
| 40B-2 | 2.500" | 2.846" | 1.500" | 1.550" | 0.901" | 6.358" | -- | -- | 2.083" | 21.378 |
| 48B-2 | 3.000" | 3.599" | 1.800" | 1.900" | 1.151" | 7.803" | -- | -- | 2.512" | 33.40 |
| 56B-2 | 3.500" | 4.197" | 2.100" | 2.125" | 1.351" | 9.039" | -- | -- | 3.063" | 46.765 |
Heavy Sizes:
| Size | Pitch (P) | (d1) | (b1) | (d2) | (LR) | (Lc) | (h2) | (T) | (Pt) | Min. Tensile Strength | Average Tensile Strength | Max Working Load | Weight (LBS/ FT) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60H-2 | 0.750 | 0.469 | 0.500 | 0.234 | 2.22 | 2.39 | 0.71 | 0.125 | 1.03 | 14455 | 18996 | 3803 | 2.5 |
| 80H-2 | 1.000 | 0.625 | 0.625 | 0.312 | 2.75 | 2.95 | 0.94 | 0.156 | 1.28 | 25773 | 32665 | 6288 | 4.1 |
| 100H-2 | 1.250 | 0.750 | 0.750 | 0.375 | 3.29 | 3.52 | 1.18 | 0.187 | 1.54 | 40227 | 50784 | 9578 | 6.1 |
| 120H-2 | 1.500 | 0.875 | 1.000 | 0.437 | 4.09 | 4.36 | 1.41 | 0.219 | 1.92 | 57727 | 72546 | 12623 | 8.8 |
| 140H-2 | 1.750 | 1.000 | 1.000 | 0.500 | 4.38 | 4.68 | 1.61 | 0.250 | 2.06 | 78364 | 98398 | 16684 | 11.2 |
| 160H-2 | 2.000 | 1.250 | 1.250 | 0.562 | 5.17 | 5.51 | 1.88 | 0.281 | 2.44 | 103091 | 128501 | 21855 | 13.6 |
| 200H-2 | 2.500 | 1.562 | 1.500 | 0.781 | 6.51 | 6.91 | 2.36 | 0.375 | 3.08 | 160818 | 201181 | 30774 | 25.6 |

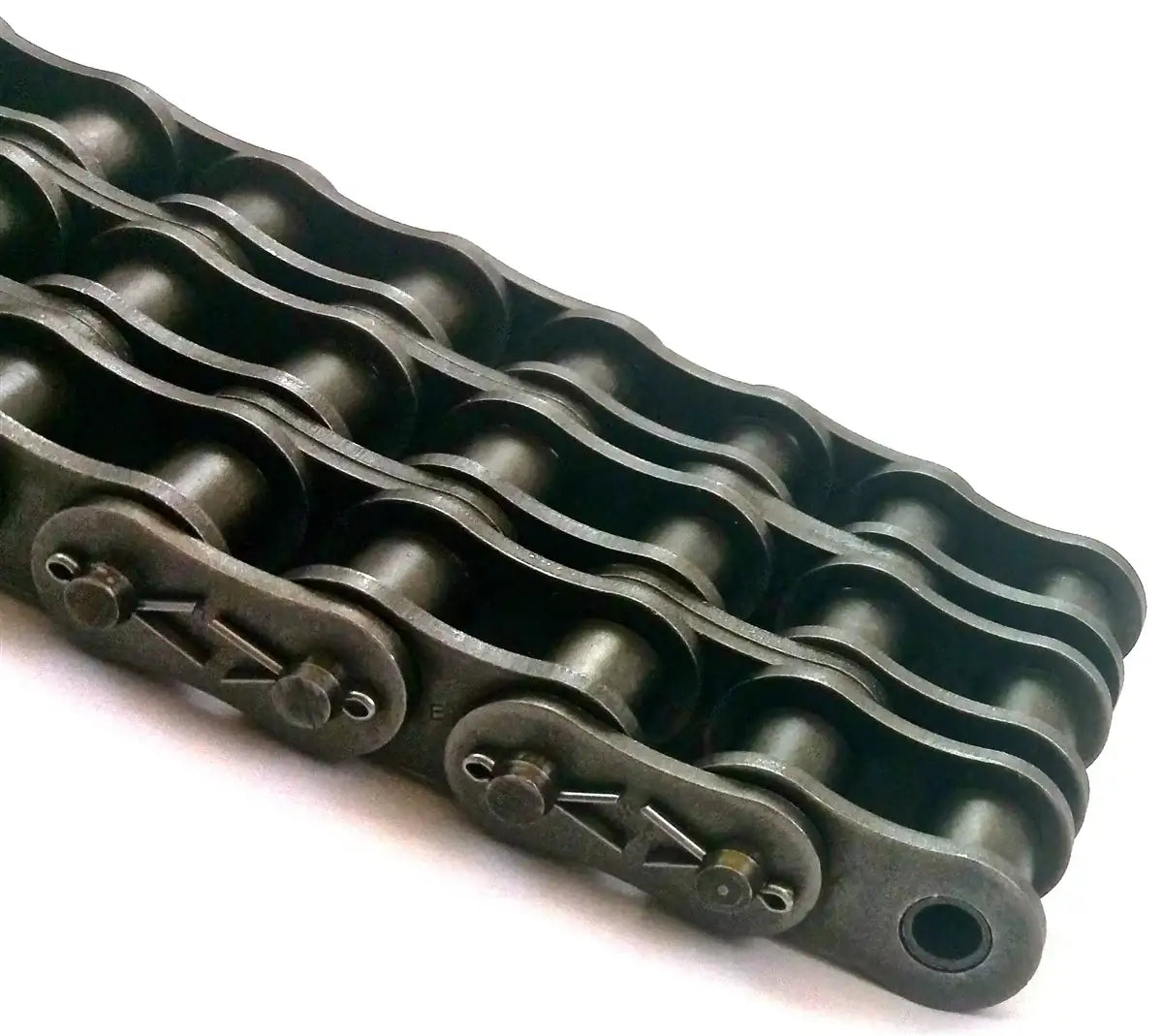

Triple Strand Roller Chain

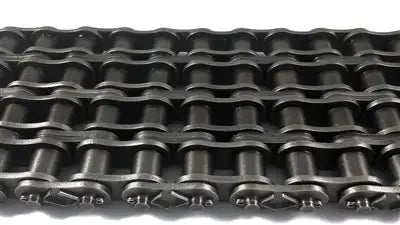

Quadruple Strand Roller Chain
