Premium Metric 04B-2 Roller Chain - 10ft Box
$114.99
SKU: 04B-2-ROLLER-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Premium Metric 04B-2 Roller Chain - 10ft Box Description/Features
Premium Metric 04B-2 Roller Chain - 10ft Box Specifications

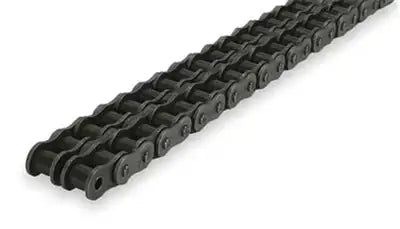

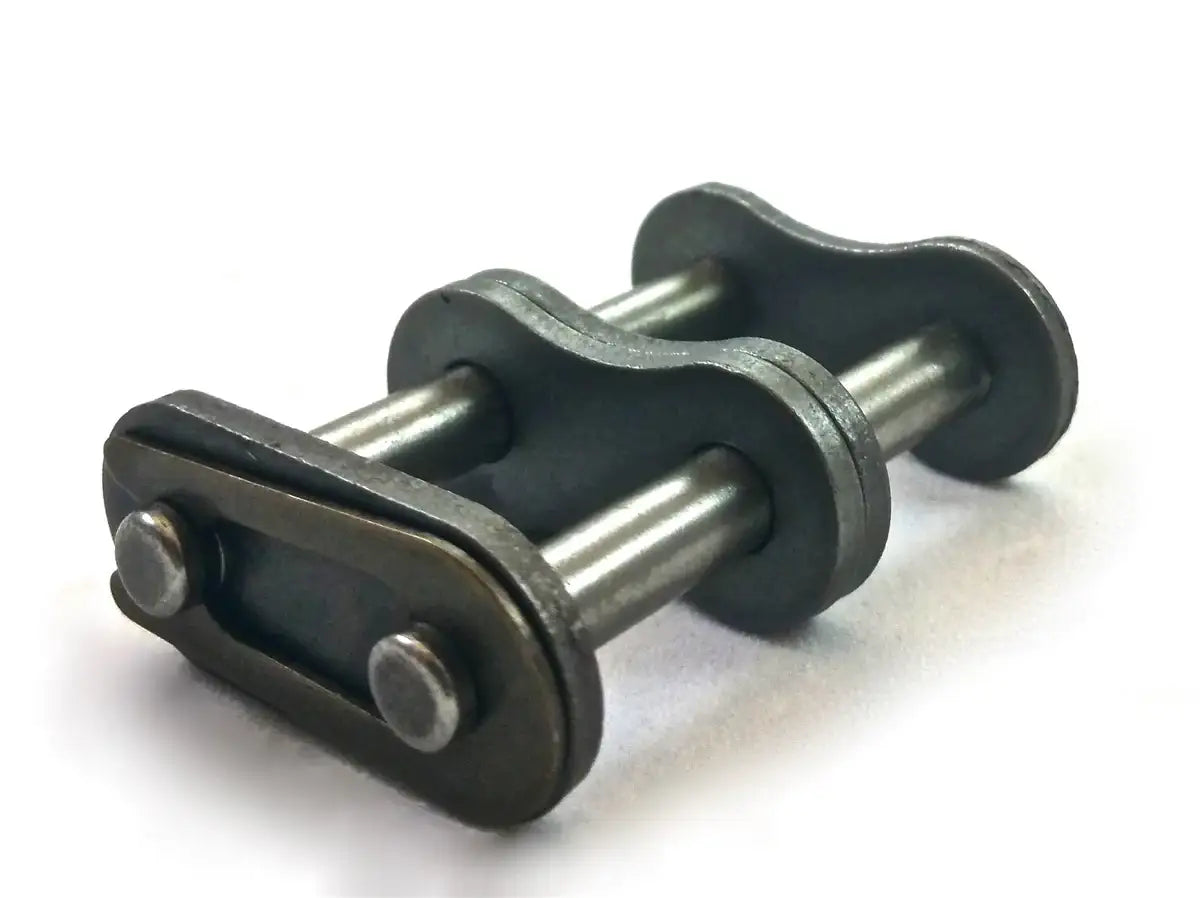

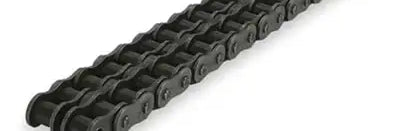

The duplex 04B-2 roller chain is a metric ISO chain made for space-restrictive applications. With a pitch of 6mm (0.23622"), this chain is considered a miniature roller chain. Our premium 04B-2 chain showcases high-precision parts that have been heat-treated and shot-peened for best-in-class performance and chain life. This chain has also been factory-loaded to reduce or eliminate elongation initially and over time. We supply 04B-2 roller chain in lengths of 10ft, each of which will include a connecting link for assembly. Additionally, we provide 04B-2 chain sprockets and tools. For additional information or a quote on our high-quality 04B-2 roller chain, contact our customer support team; we will be happy to assist you!
04B-2 Heavy Chain Dimensions
- Part #: 04B-2
- Pitch (P): 6.00mm
- Roller Width (R): 2.80mm
- Roller Diameter (D): 4.00mm
- Overall Width (W): 12.85mm
- Connecting Link Overall Width (X): 15.35mm
- Plate Height (H): 4.95mm
- Plate Thickness (T): 0.60mm
- Pin Diameter (L): 1.84mm
- Minimum Breaking Load: 610 KGS
- Weight: 0.24 kG/ m
- Part #: 04B-2
- Pitch (P): 6.00mm
- Roller Width (R): 2.80mm
- Roller Diameter (D): 4.00mm
- Overall Width (W): 12.85mm
- Connecting Link Overall Width (X): 15.35mm
- Plate Height (H): 4.95mm
- Plate Thickness (T): 0.60mm
- Pin Diameter (L): 1.84mm
- Minimum Breaking Load: 610 KGS
- Weight: 0.24 kG/ m
