Premium Metric 08B-2 Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
$189.99
SKU: P-08B-2-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

[{"variant_id":"51715297411439" , "metafield_value":""}]

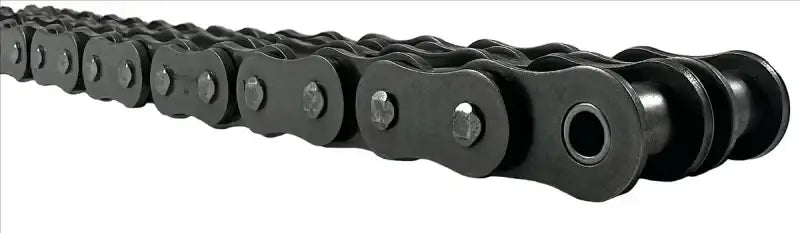

Premium Metric 08B-2 Roller Chain - 10ft Box Features
Premium Metric 08B-2 Roller Chain - 10ft Box Specifications
Our premium 08B-2 roller chain is manufactured from top-grade steel alloys and conforms to ISO and British Standards (BS). 08B-2 chain has a 12.7mm pitch, is a duplex (double-strand) chain, and combines versatility with performance, making it the perfect fit for a broad range of applications. Our precision 08B-2 roller chain combines industry-leading features like solid bushings and rollers, factory pre-loading, heat-treated and shot-peened components, and exceptionally hardened pins. The result is a best-in-class transmission roller chain that is more capable and provides an extended working life compared to others. Typical applications for the 08B-2 chain include drives, conveyors, agriculture, plant machinery, and more. For additional information or a quote on our premium 08B-2 roller chain, contact our customer service team, and we will gladly assist you!

08B-2 Roller Chain Dimensions

Premium Metric 08B-2 Roller Chain - 10ft Box
  • Part #: 08B-2
  • Pitch (P): 12.70mm
  • Roller Width (R): 7.75mm
  • Roller Diameter (D): 8.51mm
  • Overall Width (W): 31.00mm
  • Connecting Link Overall Width (X): 34.90mm
  • Plate Height (H): 11.56mm
  • Plate Thickness (T): 1.58mm
  • Pin Diameter (L): 4.44mm
  • Minimum Breaking Load: 3,270 KGS
  • Weight: 1.0 kG/ m


  • Part #: 08B-2
  • Pitch (P): 12.70mm
  • Roller Width (R): 7.75mm
  • Roller Diameter (D): 8.51mm
  • Overall Width (W): 31.00mm
  • Connecting Link Overall Width (X): 34.90mm
  • Plate Height (H): 11.56mm
  • Plate Thickness (T): 1.58mm
  • Pin Diameter (L): 4.44mm
  • Minimum Breaking Load: 3,270 KGS
  • Weight: 1.0 kG/ m
