Roller Chain > Roller Chain by Size > #60 Roller Chain
General Duty Plus #60-2 Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
$169.99
SKU: GDP-60-2-10FT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
General Duty Plus #60-2 Roller Chain - 10ft Box Features
General Duty Plus #60-2 Roller Chain - 10ft Box Specifications

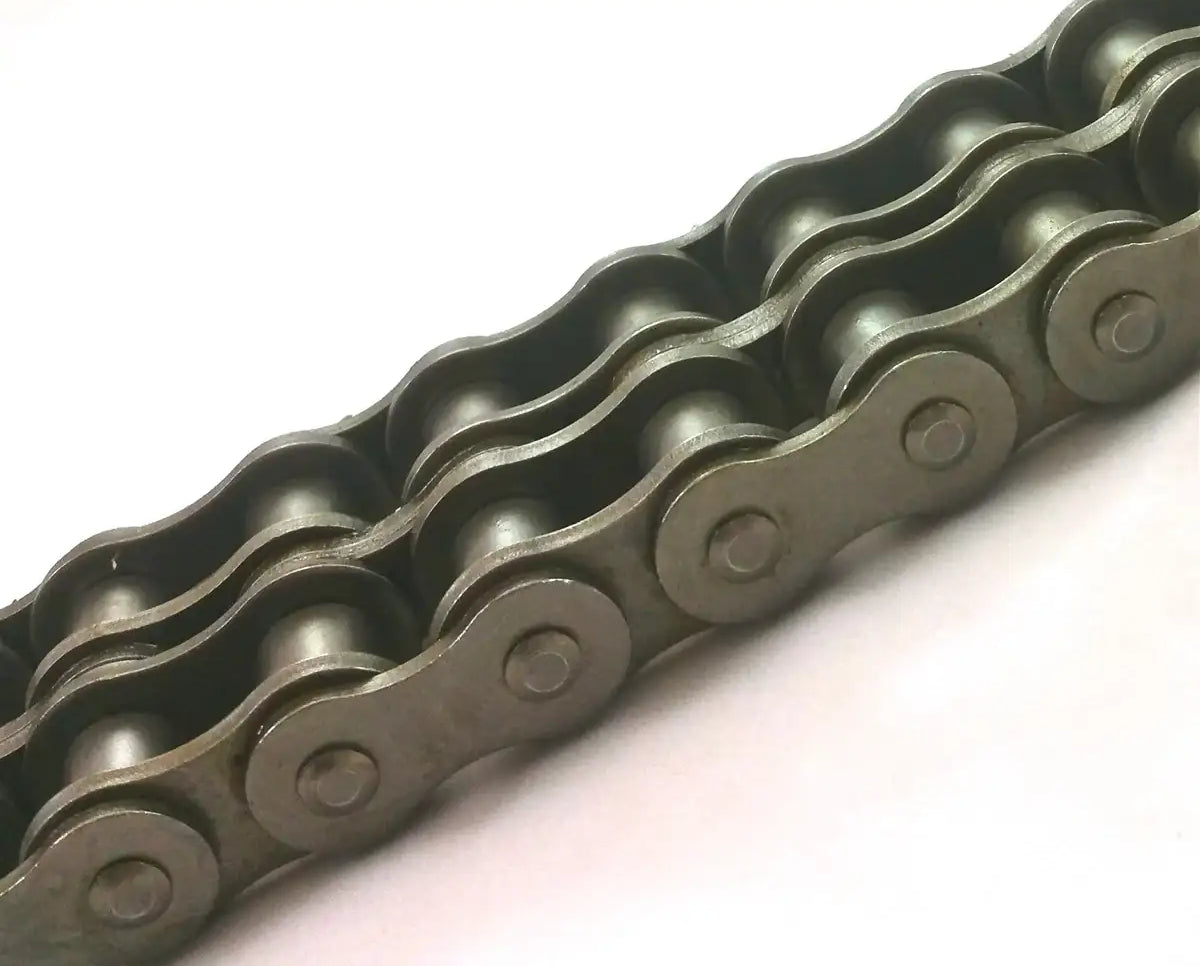

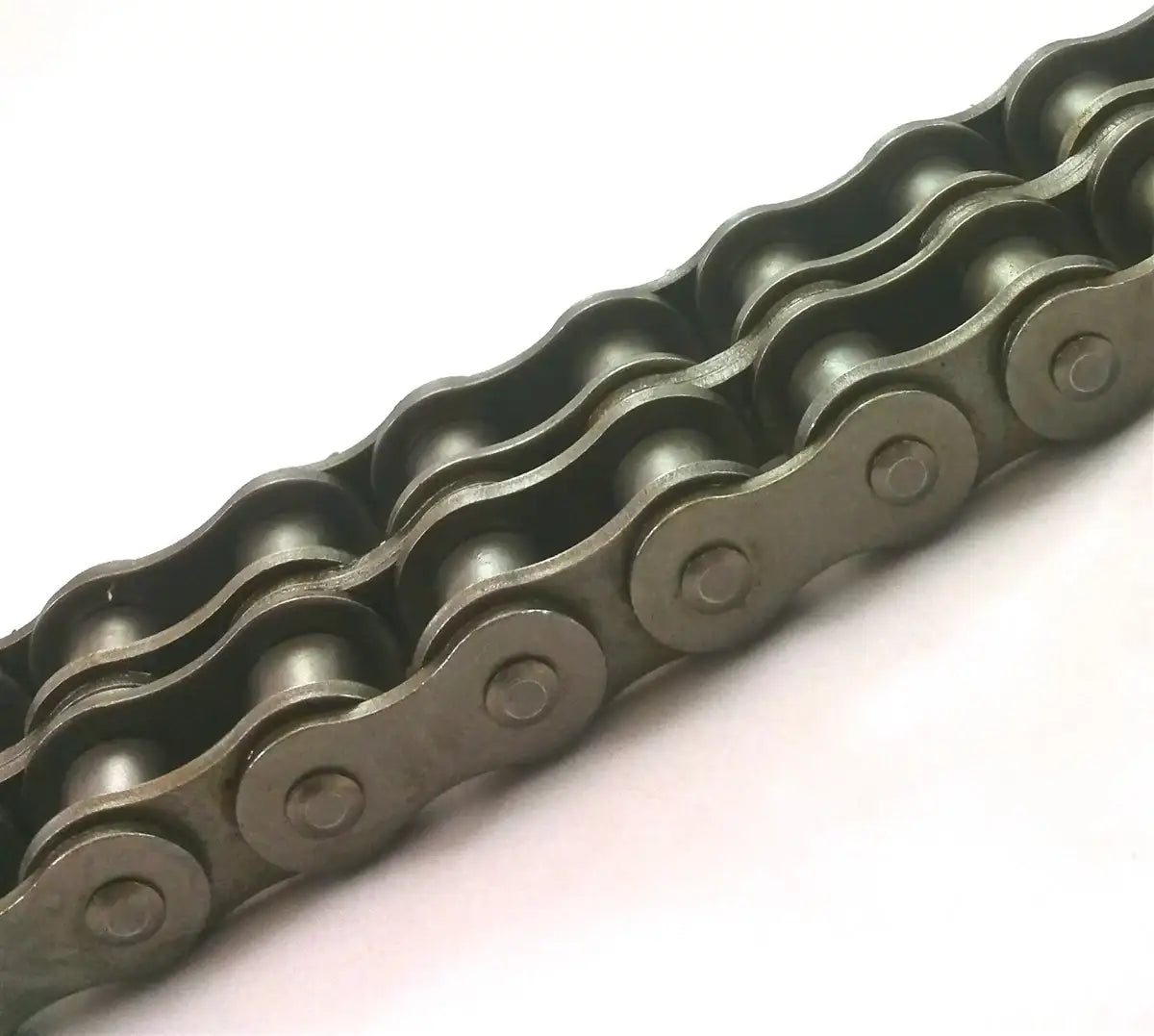

This #60-2 double strand roller chain offers high strength, a long working life, and durability. General Duty Plus Series roller chains have shot peened and heat-treated components that drastically increase the chains strength, working life, and overall performance. This #60-2 double strand roller chain has a tensile strength of 18,500lbs and is commonly supplied as 10ft boxes including one connecting link per box. But we also offer #60-2 double strand roller chain at alternate lengths per request. We offer additional connecting links and offset links for this chain as well, which having a few of these on-hand can keep you out of a down situation. We also offer a full line of high quality sprockets for this chain ranging in teeth count and bore sizes. For more information on the General Duty Plus Series #60-2 Double Strand Roller chain or any of its accessories, please contact us and we will be happy to assist you.

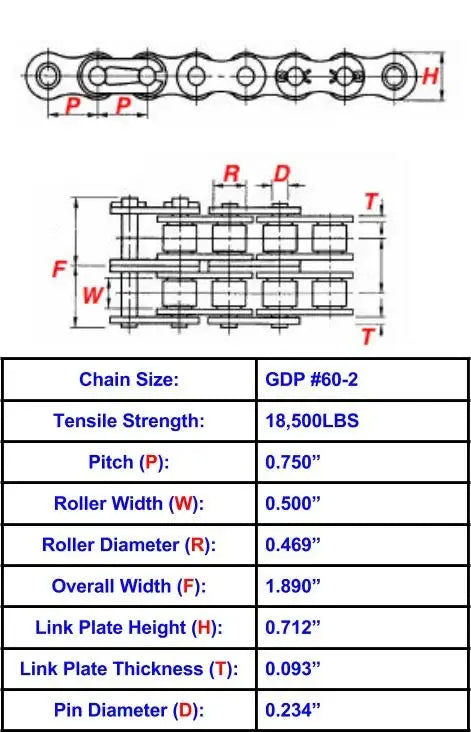

#60-2 Roller Chain Dimensions
- Chain Size: #60-2
- Tensile Strength: 18,500lbs
- Pitch (P): 0.750"
- Roller Width (W): 0.500"
- Roller Diameter (R): 0.469"
- Overall Chain Width (F): 1.890"
- Link Plate Height (H): 0.712"
- Link Plate Thickness (T): 0.093"
- Pin Diameter (D): 0.234"
- Specifications Met: ANSI Standards
- Chain Size: #60-2
- Tensile Strength: 18,500lbs
- Pitch (P): 0.750"
- Roller Width (W): 0.500"
- Roller Diameter (R): 0.469"
- Overall Chain Width (F): 1.890"
- Link Plate Height (H): 0.712"
- Link Plate Thickness (T): 0.093"
- Pin Diameter (D): 0.234"
- Specifications Met: ANSI Standards
