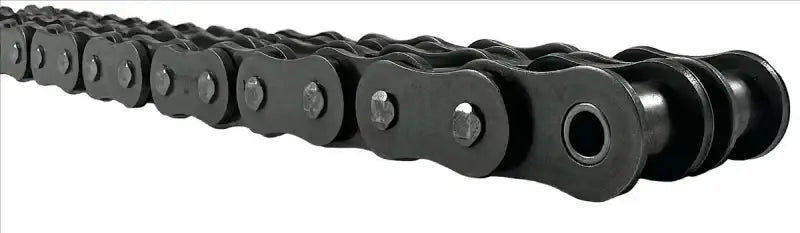

Premium Metric 06B-2 Roller Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Our premium 06B-2 roller chain is manufactured from top-grade steel alloys and conforms to ISO and British Standards (BS). 06B-2 chain has a 9.525mm pitch, is a duplex (double-strand) chain, and combines versatility with performance, making it the perfect fit for a broad range of applications. Our precision 06B-2 roller chain combines industry-leading features like solid bushings and rollers, factory pre-loading, heat-treated and shot-peened components, and exceptionally hardened pins. The result is a best-in-class transmission roller chain that is more capable and provides an extended working life compared to others. Typical applications for the 06B-2 chain include drives, conveyors, agriculture, plant machinery, and more. For additional information or a quote on our premium 06B-2 roller chain, contact our customer service team, and we will gladly assist you!
06B-2 Roller Chain Dimensions
- Part #: 06B-2
- Pitch (P): 9.525mm
- Roller Width (R): 5.72mm
- Roller Diameter (D): 6.35mm
- Overall Width (W): 23.80mm
- Connecting Link Overall Width (X): 21.70mm
- Plate Height (H): 8.20mm
- Plate Thickness (T): 1.30mm
- Pin Diameter (L): 3.28mm
- Minimum Breaking Load: 1,724 KGS
- Weight: 0.8 kG/ m
- Part #: 06B-2
- Pitch (P): 9.525mm
- Roller Width (R): 5.72mm
- Roller Diameter (D): 6.35mm
- Overall Width (W): 23.80mm
- Connecting Link Overall Width (X): 21.70mm
- Plate Height (H): 8.20mm
- Plate Thickness (T): 1.30mm
- Pin Diameter (L): 3.28mm
- Minimum Breaking Load: 1,724 KGS
- Weight: 0.8 kG/ m
