Premium Metric 16B-2 Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
$584.99
SKU: P-16B-2-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Premium Metric 16B-2 Roller Chain - 10ft Box Features
Premium Metric 16B-2 Roller Chain - 10ft Box Specifications

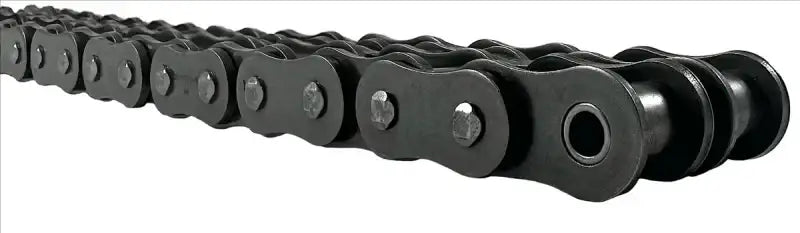

The premium duplex 16B-2 roller chain is a 25.4mm pitch metric roller chain that dimensionally conforms to ISO and British (BS) standards. What sets our 16B-2 chain apart is top-grade steel alloys, precision components, heat-treated & shot-peened components, factory preloading, and exceptionally hardened pins. Our tier-one 16B-2 roller chain provides extended service life and excellent performance and can operate within the most demanding 16B-2 applications! We also offer 16B-2 chain sprockets, guides, chain breakers, pullers, and spare links. For additional information or a quote, contact our customer service team; we will gladly assist you!
16B-2 Roller Chain Dimensions
- Part #: 16B-2
- Pitch (P): 25.40mm
- Roller Width (R): 17.02mm
- Roller Diameter (D): 15.88mm
- Overall Width (W): 68.00mm
- Connecting Link Overall Width (X): 73.40mm
- Plate Height (H): 21.00mm
- Plate Thickness (T): 3.99mm
- Pin Diameter (L): 8.28mm
- Minimum Breaking Load: 15,000 KGS
- Weight: 5.4 kG/ m
- Part #: 16B-2
- Pitch (P): 25.40mm
- Roller Width (R): 17.02mm
- Roller Diameter (D): 15.88mm
- Overall Width (W): 68.00mm
- Connecting Link Overall Width (X): 73.40mm
- Plate Height (H): 21.00mm
- Plate Thickness (T): 3.99mm
- Pin Diameter (L): 8.28mm
- Minimum Breaking Load: 15,000 KGS
- Weight: 5.4 kG/ m
