25-4 Chain - 10ft Box
Note:
Se Habla Espanol
SKU: 25-4-ROLLER-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

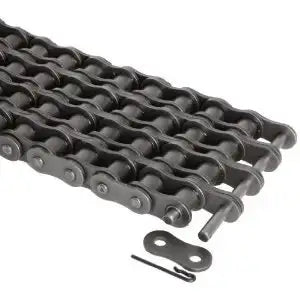

25-4 Chain - 10ft Box Description/Features
This 25-4 chain is premium quality, high strength, and fully meets all ANSI standards. What sets this roller chain apart from others is the fully heat-treated and shot peened components. This drastically increases strength, performance, and overall durability. 25-4 quad strand roller chain typically is supplied as 10ft boxes, but other length are available upon request.
Besides 25-4 quad strand roller chain we also offer a full line of premium sprockets, bearings, motors, reducers, and more! For additional information or to get a formal quote please contact us and we will be happy to assist you.
25-4 roller chain dimensions
- Pitch: 0.250"
- Roller Link Width (W): 0.125"
- Bushing Diameter (D): 0.130"
- Pin Diameter (d): 0.091"
- Pin Length (E): 1.071"
- Pin Length (F): 1.094"
- Dimension (e): 0.154"
- Dimension (L): 0.185"
- Transvers Pitch (C): 0.252"
- Plate Thickness (T): 0.028"
- Plate Height (H): 0.232"
- Dimension (h): 0.205"
- Average Tensile Strength: 3,960 LBS
- Maximum Allowable Load: 528 LBS
- Chain Weight: 0.35 LBS/ FT
Besides 25-4 quad strand roller chain we also offer a full line of premium sprockets, bearings, motors, reducers, and more! For additional information or to get a formal quote please contact us and we will be happy to assist you.
