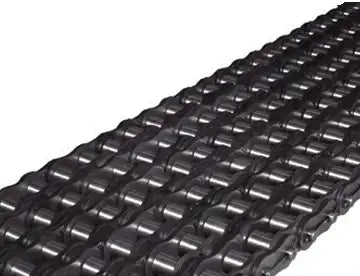

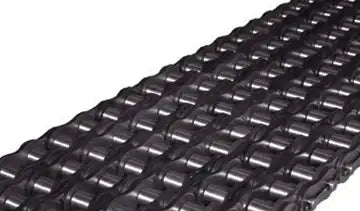

240-6 Roller Chain - 240-6 Six Strand Chain
Note:
This Chain Typically Takes 12-14 Weeks to Manufacture But Expediting Options Available
SKU: 240-6-ROLLER-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
240-6 Roller Chain - 240-6 Six Strand Chain Description/Features
240-6 Roller Chain - 240-6 Six Strand Chain Specifications
ANSI 240-6 roller chain is manufactured to ANSI B29.1 dimensional standards and is utilized in heavy-duty drive applications around the world, it's also commonly referred to as a sextuple roller chain. What separates our roller chain versus others is the high-strength steel alloys used, the precision shot-peened and heat-treated parts, and the factory pre-stressing then premium lubrication application at the time of chain making. These processes and features produce a roller chain that is made to last and will keep equipment running, even in the harshest of applications. We also supply a wide range of accessories including sprockets, chain breakers, chain pullers, and roller chain lubricants. For more information or to get pricing and availability on this 240-6 roller chain please contact us and we will be happy to assist you.
240-6 Roller Chain Dimensions
| Chain Size | Pitch (P) | Roller Width (W) | Roller Diameter (D) | Overall Width (A) | Plate Height (H) | Plate Thickness (T) | Pin Diameter (E) | Avg. Ultimate Strength | Weight (Per Ft) |
|---|---|---|---|---|---|---|---|---|---|
| 240-6 | 3.000" | 1.875" | 1.875" | 21.38" | 2.768" | 0.374" | 0.936" | 910,000 LBS | 94.6 LBS |
| Chain Size | Pitch (P) | Roller Width (W) | Roller Diameter (D) | Overall Width (A) | Plate Height (H) | Plate Thickness (T) | Pin Diameter (E) | Avg. Ultimate Strength | Weight (Per Ft) |
|---|---|---|---|---|---|---|---|---|---|
| 240-6 | 3.000" | 1.875" | 1.875" | 21.38" | 2.768" | 0.374" | 0.936" | 910,000 LBS | 94.6 LBS |
