MS730 Chain
MS730 Chain
Note:
Custom Cut to Length Chain Also Available
Product Code: MS-730-CHAIN
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed

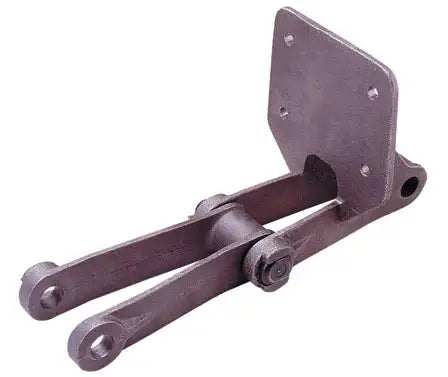

MS 730 Chain is manufactured with a full cast link and hardened carbon-steel pins for ultimate strength while maintaining a lightweight, and features an average ultimate strength of 40,000 LBS and a maximum recommended working load of 4,500 LBS. It is apart of the heavy duty 700-Class series pintle chain and is a common in-stock item. USA Roller Chain has a premium 730 chain in either riveted or cottered construction. Something special about this chain is the T-Head pins that eliminate pin rotation while at the same time prevent the entrance of dirt and or grit. As a drive chain, MS 730 chain is designed to travel in just one direction (the direction of their barrel ends). This chain is primarily used in wastewater applications such as rectangular clarifiers, as well as other conveying applications. Attachments available for MS 730 pintle chain are: F2, F226, F228, M1, as well as custom attachments upon request. We can supply the chain with attachments already assembled onto the chain in any configuration needed, and within a fast assembly time.

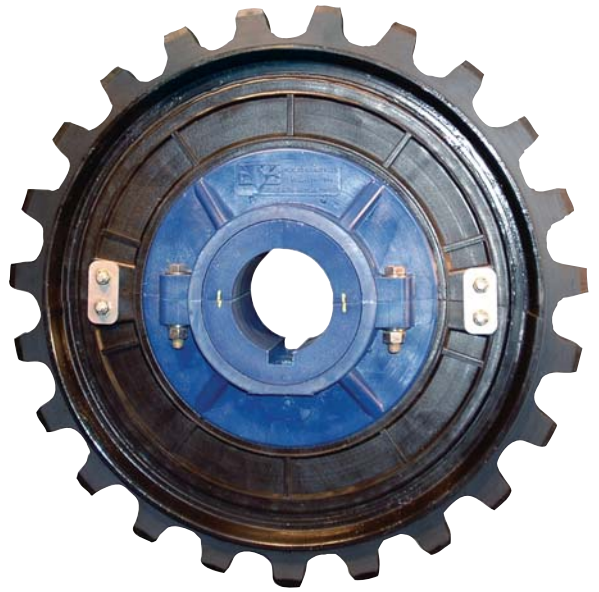

Besides the premium MS 730 Chain we also offer a full line of sprockets, flights, wear materials, drive systems, and more. USA Roller Chain and sprockets sets its self apart from the competition by having over 100+ years of industry knowledge, competitive pricing, extensive inventory, and we have an A+ BBB rating. To get a quotation on MS 730 chain or for more information please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Besides the premium MS 730 Chain we also offer a full line of sprockets, flights, wear materials, drive systems, and more. USA Roller Chain and sprockets sets its self apart from the competition by having over 100+ years of industry knowledge, competitive pricing, extensive inventory, and we have an A+ BBB rating. To get a quotation on MS 730 chain or for more information please contact us and we will be happy to assist you.
Dimensions:
- Chain Size: MS 730
- Pitch: 6.00"
- Links Per 10ft: 20
- Weight: 6.3 LBS/ FT
- Average Ultimate Strength: 40,000 LBS
- Maximum Recommended Working Load: 4,500 LBS
- Maximum Allowable Sprocket Face (A): 1.12"
- Overall Width Cottered (C2): 3.81"
- Overall Width Riveted (C1): 3.69"
- Pin diameter (E): 0.750"
- Sidebar Height (H): 1.75"
- Barrel Diameter (D): 1.50"
- Head of Pin To Center Line (J): 1.81"
- End of Pin to Center Line Cottered (K): 2.00"
- End of Pin to Center Line Riveted (L): 1.88"
- Bearing Length (X): 2.00"
Email:
Feature
- Premium MS 730 Pintle Chain
- Typically In-Stock
- Wide Range of Attachments and Sprockets Available
- Commonly Found in Wastewater Applications
- Chain Size: MS 730
- Pitch: 6.00"
- Links Per 10ft: 20
- Weight: 6.3 LBS/ FT
- Average Ultimate Strength: 40,000 LBS
- Maximum Recommended Working Load: 4,500 LBS
- Maximum Allowable Sprocket Face (A): 1.12"
- Overall Width Cottered (C2): 3.81"
- Overall Width Riveted (C1): 3.69"
- Pin diameter (E): 0.750"
- Sidebar Height (H): 1.75"
- Barrel Diameter (D): 1.50"
- Head of Pin To Center Line (J): 1.81"
- End of Pin to Center Line Cottered (K): 2.00"
- End of Pin to Center Line Riveted (L): 1.88"
- Bearing Length (X): 2.00"
