477 Pintle Chain
477 Pintle Chain
Note:
Custom Cut to Length Chain Also Available
Product Code: 477-PINTLE-CHAIN
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed

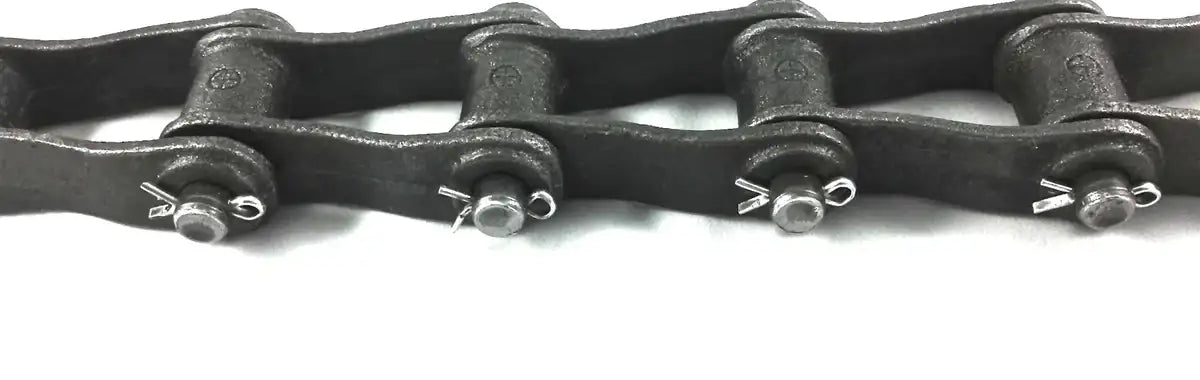

477 Pintle Chain

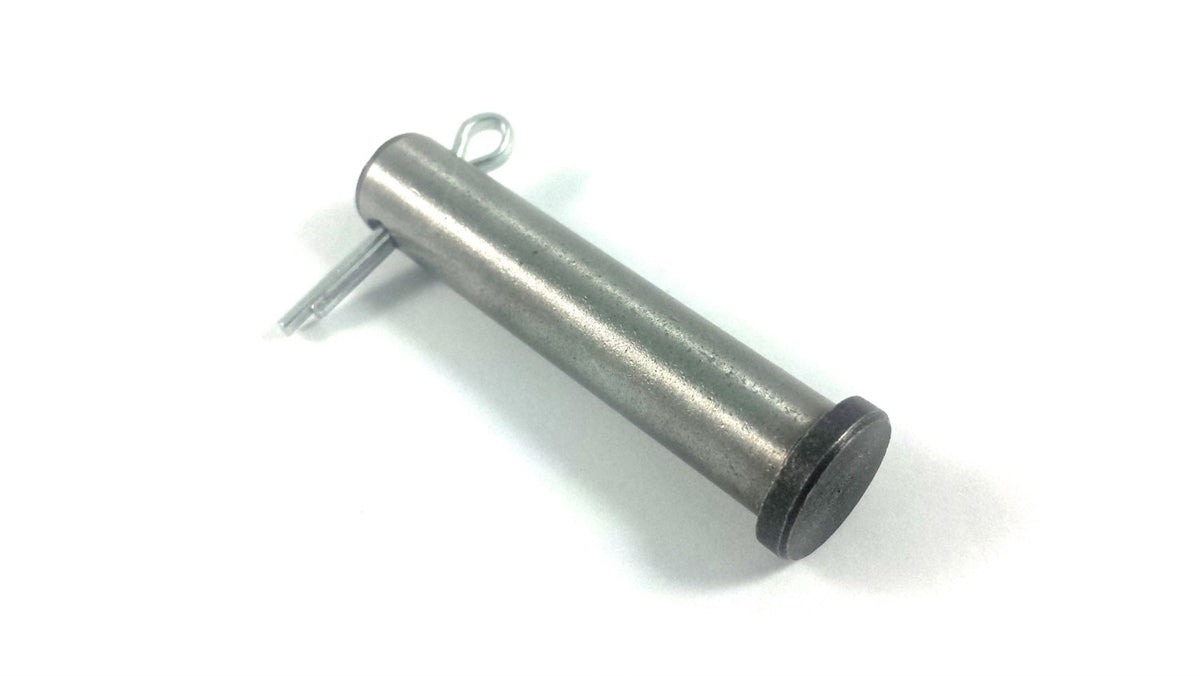

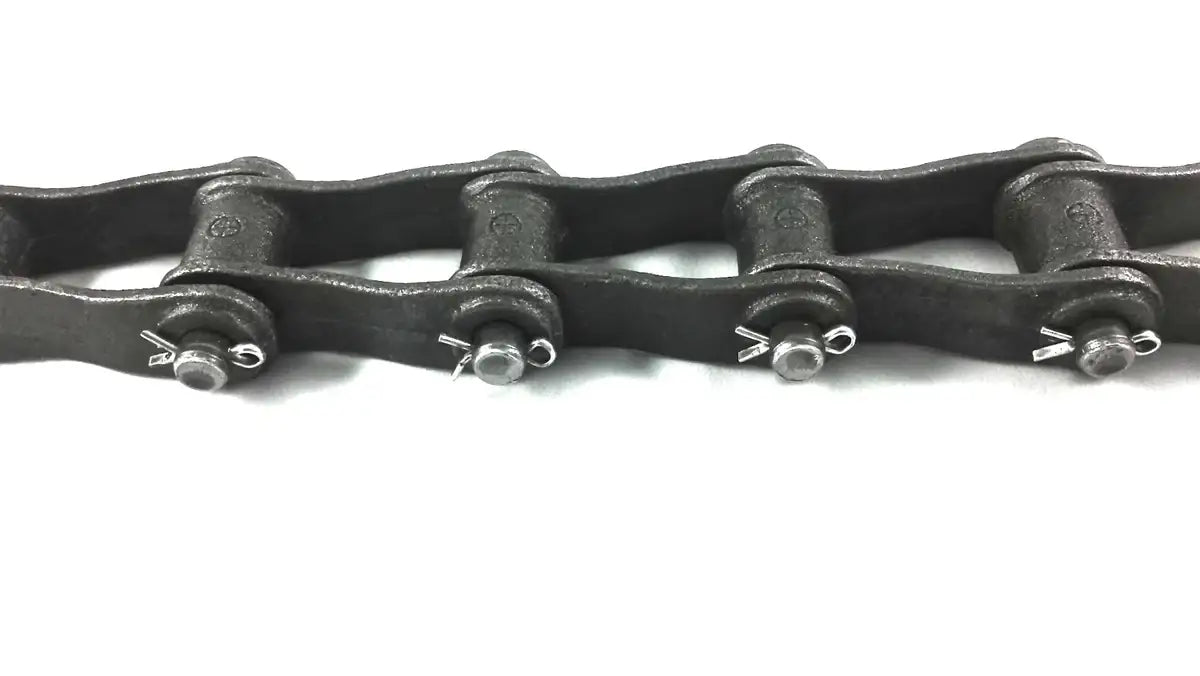

477 pintle chain is a light weight, economical, and durable pintle chain that is capable of handling average loads at slow or intermediate speeds. This 477 pintle chain is manufactured using high-quality precision components and has heat-treated carbon steel pins to improve the operation, working life, and strength of the chain. 477 pintle chain is available in riveted or cottered construction and is found in a wide range of material handling and elevator applications, along with some environmental and waste water applications. Additionally, we offer a full line of 442 pintle chain attachments and 477 sprockets. To get a quote please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email:sales@usarollerchain.com
477 pintle chain is a light weight, economical, and durable pintle chain that is capable of handling average loads at slow or intermediate speeds. This 477 pintle chain is manufactured using high-quality precision components and has heat-treated carbon steel pins to improve the operation, working life, and strength of the chain. 477 pintle chain is available in riveted or cottered construction and is found in a wide range of material handling and elevator applications, along with some environmental and waste water applications. Additionally, we offer a full line of 442 pintle chain attachments and 477 sprockets. To get a quote please contact us and we will be happy to assist you.
Dimensions:
- Chain Size: 477 Pintle Chain
- Pitch: 2.308"
- Links Per 10ft: 52
- Weight Per Foot: 2.0 LBS
- Average Ultimate Strength: 12,480 LBS
- Maximum Recommended Working Load: 1,640 LBS
- Maximum Allowable Sprocket Face (A): 0.69"
- Overall Width Cottered (C): 2.38"
- Overall Width Riveted: 2.25"
- Pin Diameter (E): 0.44"
- Sidebar Height (F): 1.00"
- Barrel Diameter (H): 0.72"
- Head of Pin to Center Line (J): 1.16"
- End of Pin To Center Line Cottered (K): 1.22"
- End of Pin To Center Line Riveted (L): 1.09"
- Length of Bearing (X): 1.25"
Phone: (407) 347-3519
Email:
Feature
- High Quality Pintle Chain
- Supplied As Cottered Construction
- Riveted Construction Available
- Features Carbon Steel Pins
- Heat-Treated Components
- Stainless Steel Cotters Available
- Chain Size: 477 Pintle Chain
- Pitch: 2.308"
- Links Per 10ft: 52
- Weight Per Foot: 2.0 LBS
- Average Ultimate Strength: 12,480 LBS
- Maximum Recommended Working Load: 1,640 LBS
- Maximum Allowable Sprocket Face (A): 0.69"
- Overall Width Cottered (C): 2.38"
- Overall Width Riveted: 2.25"
- Pin Diameter (E): 0.44"
- Sidebar Height (F): 1.00"
- Barrel Diameter (H): 0.72"
- Head of Pin to Center Line (J): 1.16"
- End of Pin To Center Line Cottered (K): 1.22"
- End of Pin To Center Line Riveted (L): 1.09"
- Length of Bearing (X): 1.25"
