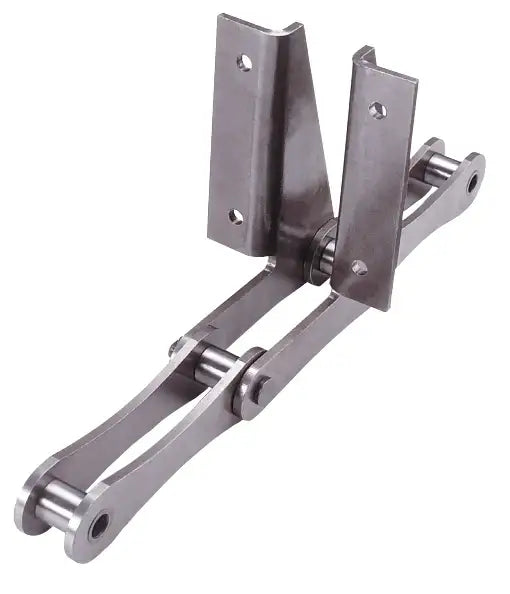

SS701 Chain

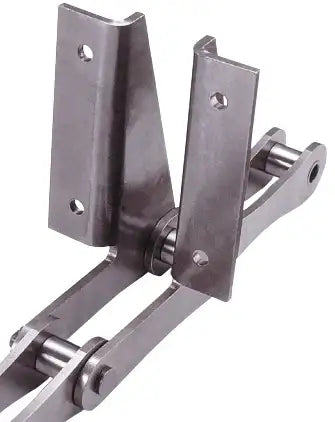

SS701 chain is a stainless steel chain that is primarily used in rectangular clarifiers in wastewater facilities. SS701 chain is manufactured out of a high-quality 403-grade stainless steel so it is manufactured to be high strength, extremely durable, and corrosion resistant. Something else that is special about this chain is that it features hardened pins and bushings, this greatly increases the overall working life and performance of the chain. SS701 chain has an average ultimate strength of 19,000 LBS so it is extremely high strength. SS701 chain is available with F226 and F228 attachments or with custom attachments per request.

Besides the chain we also offer a full line of sprockets, bearings, shaft, wear materials, drive systems, and skimmer assemblies. USA Roller Chain and sprockets sets its self apart from the competition by having over 100+ years of industry knowledge, competitive pricing, extensive inventory, and we have an A+ BBB rating. To get a quotation on SS701 chain or for more information please contact us and we will be happy to assist you.

Dimensions:

• Chain size: SS701
• Dimension (A): 2.578"
• Dimension (B): 1.406"
• Dimension (C): 1.172"
• Dimension (D): 0.453"
• Dimension (E): 0.882"
• Dimension (F): 0.188"
• Dimension (G): 1.266"
• Dimension (H): 1.219"
• Dimension (I): 1.453"
• Dimension (J): 5.844"
• Chain Weight: 2.2 LBS/ FT
• Tensile Strength: 19,000 LBS
• Chain Material: 403-Grade Stainless Steel
