B5883 Chain | Traveling water screen chain

B5883 chain is categorized as a traveling water screen chain. The B5883 chain design makes it popular in many of today's wastewater treatment facilities because of its "over-sized" carrier rollers for easy movement and conveying, durable design operation, and high-strength nature. Traveling water screens certainly put the chain side of things to the test, this is why our B5883 chain is manufactured with premium materials and processes high tensile and working load capacities. We use heat-treated precision components and an extensive quality check (QC) process for each batch of B5883 chain. We also supply B5883 chain sprockets and custom attachments, to get a quote, please contact us, and we will be happy to assist you.

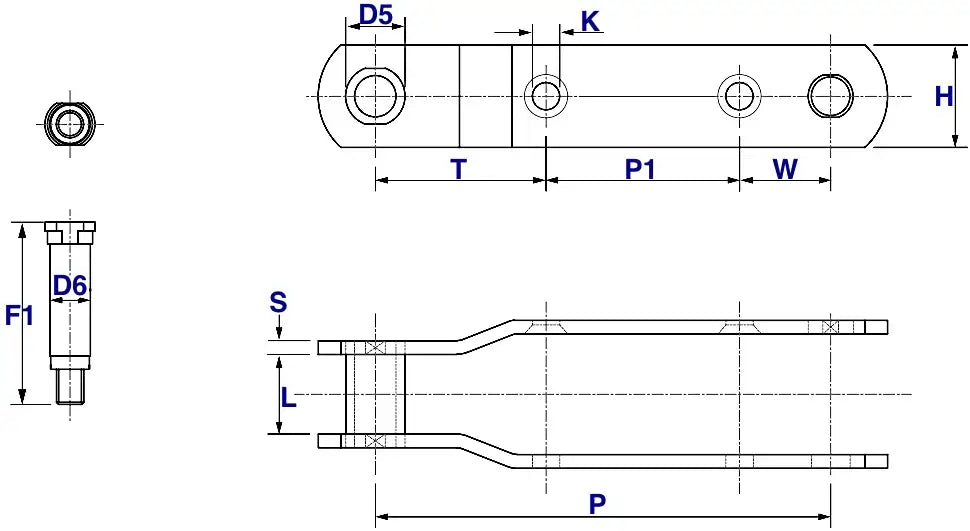

B5883 Chain Dimensions

• Chain Size: B5883
• Pitch (P): 200.00mm
• Bushing diameter (D5): 18.00mm
• Pin Diameter (D6): 11.80mm
• Distance Between Plates (L): 28.00mm
• Sidebar Height (H): 35.00mm
• Sidebar Thickness (S): 5.00mm
• Overall Width (F1): 66.00mm
• Dimension (K): 12.00mm
• Dimension (T): 75.00mm
• Dimension (P1): 85.00mm
• Dimension (W): 40.00mm
• Tensile Strength: 24,000 LBS
• Weight: 2.80 LBS/ FT
