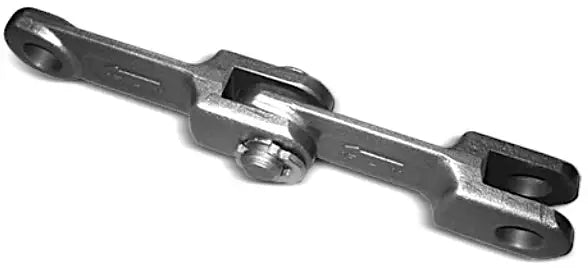

F-26045 Chain - Forged Link Chain

F-26045 Chain has proven to be one of the most reliable conveying mediums offering a combination of versatility, strength, and abrasion resistance. Typically F26045 chain is found in wastewater applications, food processing, chemical plants, foundries, and even refineries. The high-strength and extreme durability of F-26045 chain make it an ever-growing option for conveying applications. What separates out forge link chain is various heat-treat processes and the material options available.

• TN _ Manganese Chrome Alloy Steel (20MnCr5) Case hardened
• CN _ Chrome Nickel Alloy Steel (18NiCoMo5) Case Hardened
• CD _ Chrome Molly Alloy Steel (42CrMo4) Hardened & Tempered

We also supply F-26045 chain sprockets, pin styles, and attachment types. For more information or to get a quote please contact us and we will be happy to assist you.

F26045 Chain Dimensions

• Chain Size: F-26045
• Pitch (P): 260mm
• Dimension (T): 78mm
• Dimension (C): 75mm
• Dimension (S): 35mm
• Dimension (F): 37mm
• Dimension (R): 20mm
• Bolt-Hole Diameter (D): 32mm
• TN Option Breaking Load: 930 kN
• CN Option Breaking Load: 1,000 kN
• CD Option Breaking Load: 1,650 kN
• Weight: 21.80 kG/ M

F-26045 Pin Options

Type 22 - Standard Double Circlip	Type HD/22 - Hardened Pin With Standard Circlip	Type HD/45/28RP - Headed Pin With Collar and Roll Pin Retention
Type HD/45/28S - Headed Pin With Collar and S Cotter Retention	Type SN/28S - Antirotation Snub Pin Washer and S Cotter Retention	Type HD/28S - Headed Pin With Washer and S Cotter Retention

F-26045 Chain Attachments B-Type Flight Attachment for Horizontal Conveying:

T-Type Attachment for Horizontal and Slightly Inclined Conveying:

U Type Attachment for Horizontal and Incline Conveying (with or without blanking plate):

C Type Attachments for Horizontal, Inclined, and Vertical Conveying (with or without blanking plate):

OO Type Attachments for Horizontal and Inclined Conveying (with or without blanking plate):

Note: Please provide required dimensions when requesting attachments.
Additional Wastewater Treatment Products:

• Sprockets
• Bearings
• Gear Boxes/ Reducers
• Motors/ Drives
• Pumps & Seals
• Flights, Flight Boards, & Flight Monitoring
• Sensors
• Helical Scum Skimmers
• Wear Strips, Wear Shoes, Filler Blocks
• Static Sleeves & Wall Bearings
