SS131 Chain Description/Features
SS131 Chain Specifications

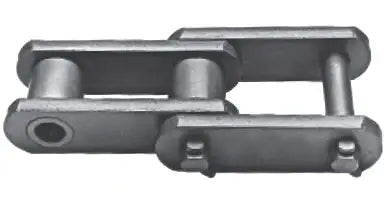

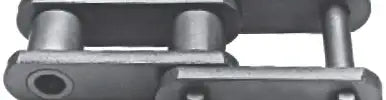

This SS131 chain is a high quality, high strength steel bushed chain that is extremely durable. SS131 Chain is ideal for operating in applications that are extremely gritty and or abrasive. The steel bushed chains we offer are engineered and manufactured using different types of steel to get the most use and strength out of the chain as possible. We also offer a complete selection of high quality SS131 chain sprockets and attachments. For more information or to get a quote please contact us and we will be happy to assist you.

Dimensions:
SS131 Chain
  • Chain Size: SS131
  • Pitch: 3.075"
  • Overall Width (A): 3.53"
  • Dimension (B): 1.88"
  • Dimension (C): 1.66"
  • Inside Width (E): 1.31"
  • Bushing Diameter (D): 1.25"
  • Bushing Style: Double Flat
  • Bushing Material: Carbon Case-Hardened
  • Pin Diameter (G): 0.63"
  • Pin Material: Carbon Heat-Treated
  • Pin Style: Double Flat
  • Sidebar Height (H): 1.50"
  • Sidebar Thickness (T): 0.38"
  • Sidebar Material: Carbon Heat-Treated
  • Average Ultimate Strength: 40,000 LBS
  • Maximum Working Load: 4,500 LBS
  • Weight Per Foot: 7.50 LBS
