SS859 Chain

SS859 Chain

Note: Custom Cut to Length Chain Also Available
Product Code: SS859-CHAIN
Shipping calculated at checkout.
Other Customers Viewed

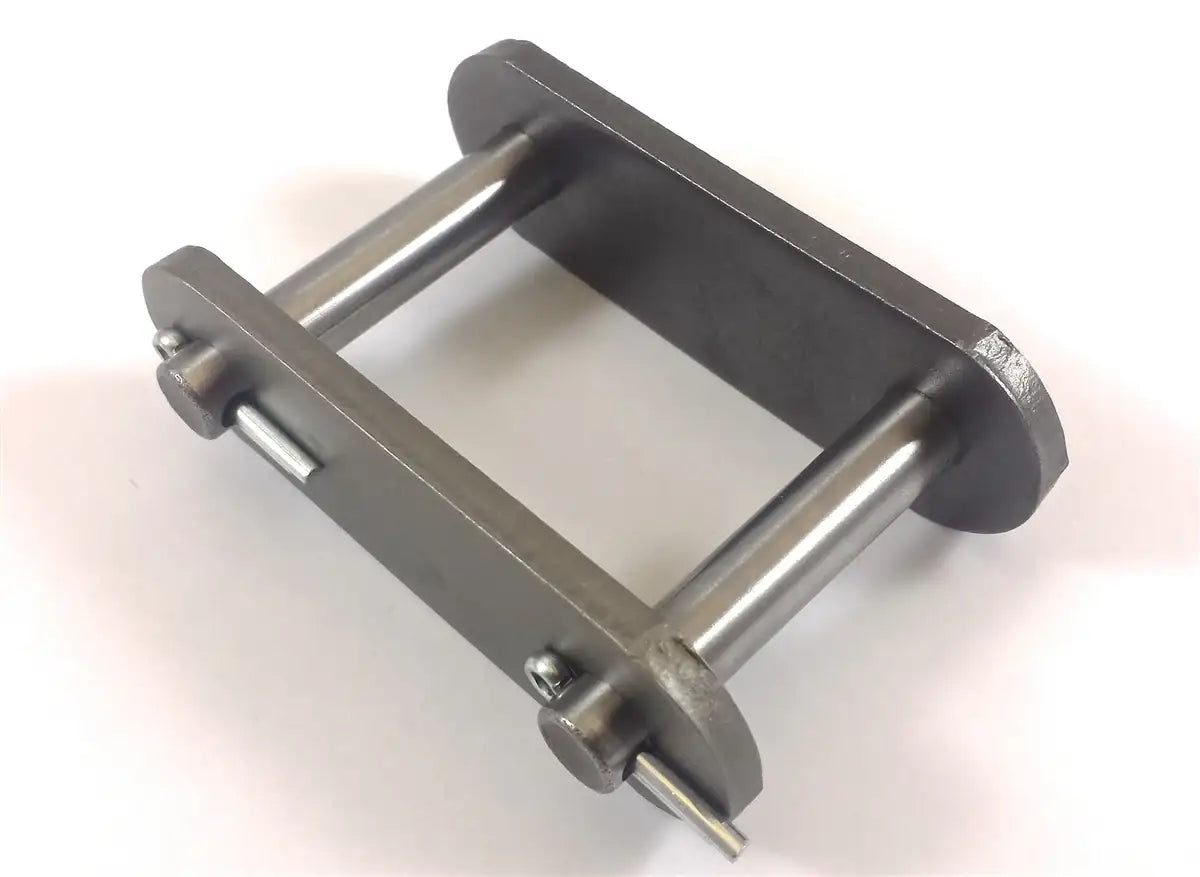

SS859 Steel Bushed Chain Connecting Link (Master Link)
SS859 Steel Bushed Chain Connecting Link (Master Link)
Login
SS859 Pin
SS859 Pin
Login
View full details
Description
Specification

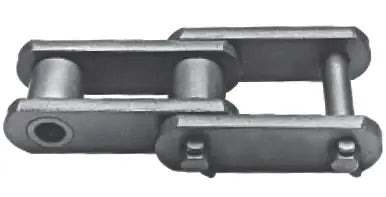

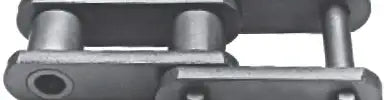

This SS859 chain is a high quality, high strength steel bushed chain that is extremely durable. SS859 Chain is ideal for operating in applications that are extremely gritty and or abrasive. The steel bushed chains we offer are engineered and manufactured using different types of steel to get the most use and strength out of the chain as possible. We also offer a complete selection of high quality SS859 chain sprockets and attachments. For more information or to get a quote please contact us and we will be happy to assist you.

Dimensions:

  • Chain Size: SS859
  • Pitch: 6.00"
  • Overall Width (A): 7.38"
  • Dimension (B): 3.81"
  • Dimension (C): 3.56"
  • Inside Width (E): 3.75"
  • Bushing Diameter (D): 2.38"
  • Bushing Style: Full Round
  • Bushing Material: Alloy Case-Hardened
  • Pin Diameter (G): 1.25"
  • Pin Material: Alloy Heat-Treated and Induction-Hardened
  • Pin Style: Full Round
  • Sidebar Height (H): 4.00"
  • Sidebar Thickness (T): 0.63"
  • Sidebar Material: Alloy Heat-Treated
  • Average Ultimate Strength: 275,000 LBS
  • Maximum Working Load: 21,800 LBS
  • Weight Per Foot: 34.0 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
"Click Here To Checkout Our Line Card!"

Feature

  • High Quality Chain
  • Extremely Durable
  • High Resistance to Abrasion
  • Ultra High Strength
Featured image
  • Chain Size: SS859
  • Pitch: 6.00"
  • Overall Width (A): 7.38"
  • Dimension (B): 3.81"
  • Dimension (C): 3.56"
  • Inside Width (E): 3.75"
  • Bushing Diameter (D): 2.38"
  • Bushing Style: Full Round
  • Bushing Material: Alloy Case-Hardened
  • Pin Diameter (G): 1.25"
  • Pin Material: Alloy Heat-Treated and Induction-Hardened
  • Pin Style: Full Round
  • Sidebar Height (H): 4.00"
  • Sidebar Thickness (T): 0.63"
  • Sidebar Material: Alloy Heat-Treated
  • Average Ultimate Strength: 275,000 LBS
  • Maximum Working Load: 21,800 LBS
  • Weight Per Foot: 34.0 LBS
