SS857 Chain

SS857 Chain

Note: Custom Cut to Length Chain Also Available
Product Code: SS857-CHAIN
Shipping calculated at checkout.
Other Customers Viewed

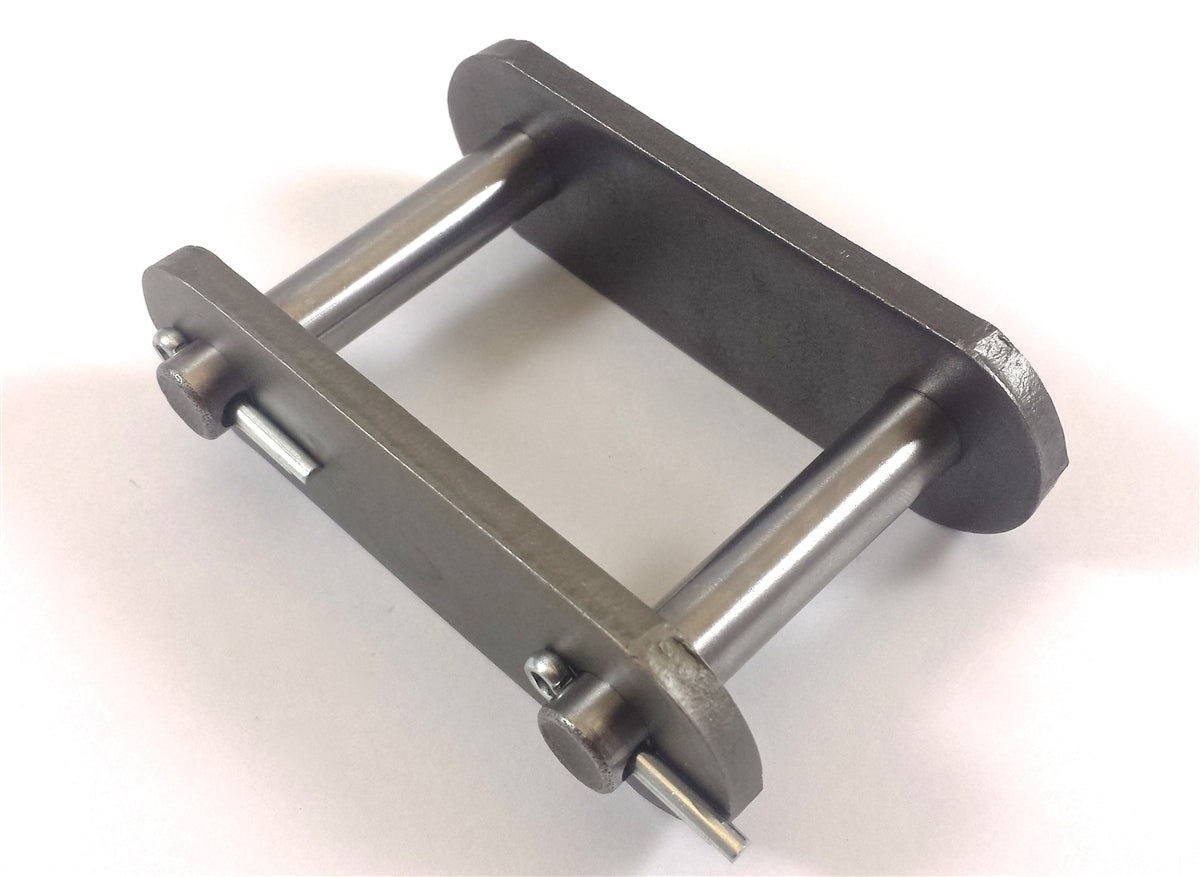

SS857 Steel Bushed Chain Connecting Link (Master Link)
SS857 Steel Bushed Chain Connecting Link (Master Link)
Login
SS857 Pin
SS857 Pin
Login
View full details
Description
Specification

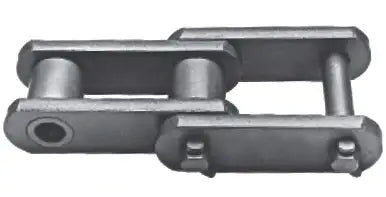

This SS857 chain is a high quality, high strength steel bushed chain that is extremely durable. SS857 Chain is ideal for operating in applications that are extremely gritty and or abrasive. The steel bushed chains we offer are engineered and manufactured using different types of steel to get the most use and strength out of the chain as possible. We also offer a complete selection of high quality SS857 chain sprockets and attachments. For more information or to get a quote please contact us and we will be happy to assist you.

Dimensions:

  • Chain Size: SS857
  • Pitch: 6.00"
  • Overall Width (A): 6.13"
  • Dimension (B): 3.25"
  • Dimension (C): 2.88"
  • Inside Width (E): 3.00"
  • Bushing Diameter (D): 1.75"
  • Bushing Style: Full Round
  • Bushing Material: Alloy Case-Hardened
  • Pin Diameter (G): 1.00"
  • Pin Material: Alloy Heat-Treated and Induction-Hardened
  • Pin Style: Full Round
  • Sidebar Height (H): 3.25"
  • Sidebar Thickness (T): 0.50"
  • Sidebar Material: Alloy Heat-Treated
  • Average Ultimate Strength: 175,000 LBS
  • Maximum Working Load: 14,000 LBS
  • Weight Per Foot: 21.0 LBS
