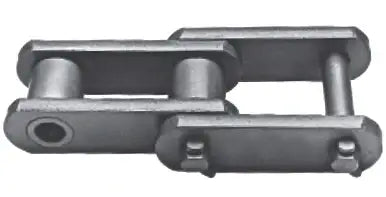

SS110 Chain | SS110 Conveyor Chain

SS110 Chain | SS110 Conveyor Chain

Note: Custom Cut to Length Chain Also Available
Product Code: SS110-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
SS110 Steel Bushed Chain Connecting Link (Master Link)
SS110 Steel Bushed Chain Connecting Link (Master Link)
Login
SS110 Pin
SS110 Pin
Login
View full details
Description
Specification
SS110 chain is also commonly referred to as SS110 conveyor chain and is a steel bushed Engineer Class chain made to American Standards. SS110 chain is found in applications such as grain elevators, sugar mills, bucket elevators, conveying systems, and more! Our SS110 chain utilizes precision heat-treated components that are manufactured out of high-quality steel alloys for optimal wear life and application performance. Typically this chain is supplied in 10' sections with a connecting pin but alternate lengths are available as well. Besides the chain, we also supply an array of SS110 sprockets and attachments. For more information or to get a quote on our SS110 chain contact our customer service team and we will be happy to assist you!

SS110 Chain Dimensions
  • Chain Size: SS110
  • Pitch: 6.000"
  • Overall Width (A): 4.31"
  • Dimension (B): 2.28"
  • Dimension (C): 2.03"
  • Inside Width (E): 2.13"
  • Bushing Diameter (D): 1.25"
  • Bushing Style: Double Flat
  • Bushing Material: Carbon Case-Hardened
  • Pin Diameter (G): 0.63"
  • Pin Material: Carbon Case-Hardened
  • Pin Style: Double Flat
  • Sidebar Height (H): 1.50"
  • Sidebar Thickness (T): 0.38"
  • Sidebar Material: Carbon Heat-Treated
  • Average Ultimate Strength: 40,000 LBS
  • Maximum Working Load: 6,300 LBS
  • Weight Per Foot: 6.3 LBS

Feature

  • High Quality Chain
  • Extremely Durable
  • High Resistance to Abrasion
  • Ultra High Strength
Featured image
  • Chain Size: 110
  • Pitch: 6.000"
  • Overall Width (A): 4.31"
  • Dimension (B): 2.28"
  • Dimension (C): 2.03"
  • Inside Width (E): 2.13"
  • Bushing Diameter (D): 1.25"
  • Bushing Style: Double Flat
  • Bushing Material: Carbon Case-Hardened
  • Pin Diameter (G): 0.63"
  • Pin Material: Carbon Case-Hardened
  • Pin Style: Double Flat
  • Sidebar Height (H): 1.50"
  • Sidebar Thickness (T): 0.38"
  • Sidebar Material: Carbon Heat-Treated
  • Average Ultimate Strength: 40,000 LBS
  • Maximum Working Load: 6,300 LBS
  • Weight Per Foot: 6.3 LBS
