• SS188 A1/ A2 Attachment
1 1

SS188 A1/ A2 Attachment

SS188 A1/ A2 Attachment

Note: Custom Cut to Length Chain Also Available
Product Code: SS188-A1-A2-ATTACHMENT
Shipping calculated at checkout.
View full details
Description
Specification
This SS188 A1/ A2 attachment is a premium high-strength attachment that is manufactured specifically for SS188 chain and can be assembled in any configuration needed. To get a quote for SS188 chain with A1/ A2 attachments or for more information please contact us and we will be happy to assist you!

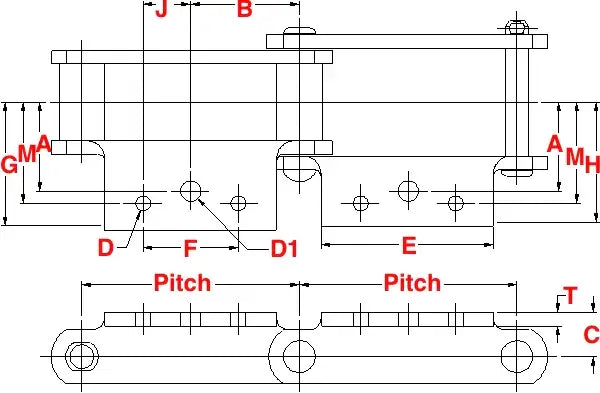

Dimensions:
SS188 A1/ A2 Attachment
  • Attachment Type: SS188 A1/ A2
  • Pitch: 2.609"
  • Dimension (A): 1.88"
  • Dimension (B): 1.31"
  • Dimension (C): 0.81"
  • Bolt Diameter (D): 0.31"
  • Hole Diameter (D): 0.34"
  • Bolt Diameter (D1): 0.38"
  • Hole Diameter (D1): 0.41"
  • Dimension (E): 2.12"
  • Dimension (F): 1.25"
  • Dimension (G): 2.53"
  • Dimension (H): 2.56"
  • Dimension (J): 0.62"
  • Dimension (M): 2.09"
  • Dimension (T): 0.25"
  • Weight Per Foot: 4.8 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
"Click Here To Checkout Our Line Card!"

Feature

  • High Quality Attachment
  • Can Be Assembled In Any Configuration
  • Extremely Durable
  • High Resistance to Abrasion
  • Ultra High Strength
Featured image
  • Attachment Type: SS188 A1/ A2
  • Pitch: 2.609"
  • Dimension (A): 1.88"
  • Dimension (B): 1.31"
  • Dimension (C): 0.81"
  • Bolt Diameter (D): 0.31"
  • Hole Diameter (D): 0.34"
  • Bolt Diameter (D1): 0.38"
  • Hole Diameter (D1): 0.41"
  • Dimension (E): 2.12"
  • Dimension (F): 1.25"
  • Dimension (G): 2.53"
  • Dimension (H): 2.56"
  • Dimension (J): 0.62"
  • Dimension (M): 2.09"
  • Dimension (T): 0.25"
  • Weight Per Foot: 4.8 LBS
