Clamp Collar For 14mm Splined Shaft With 6 Splines - Stainless Steel

clamp-collar-14mm-splined-shaft-stainless-steel

Alternative Views:

Our Price: $239.99

Availability: Usually Ships in 1 to 2 Weeks
Product Code: 64899602-CLAMP-COLLAR

Qty:

Description

Technical Specs

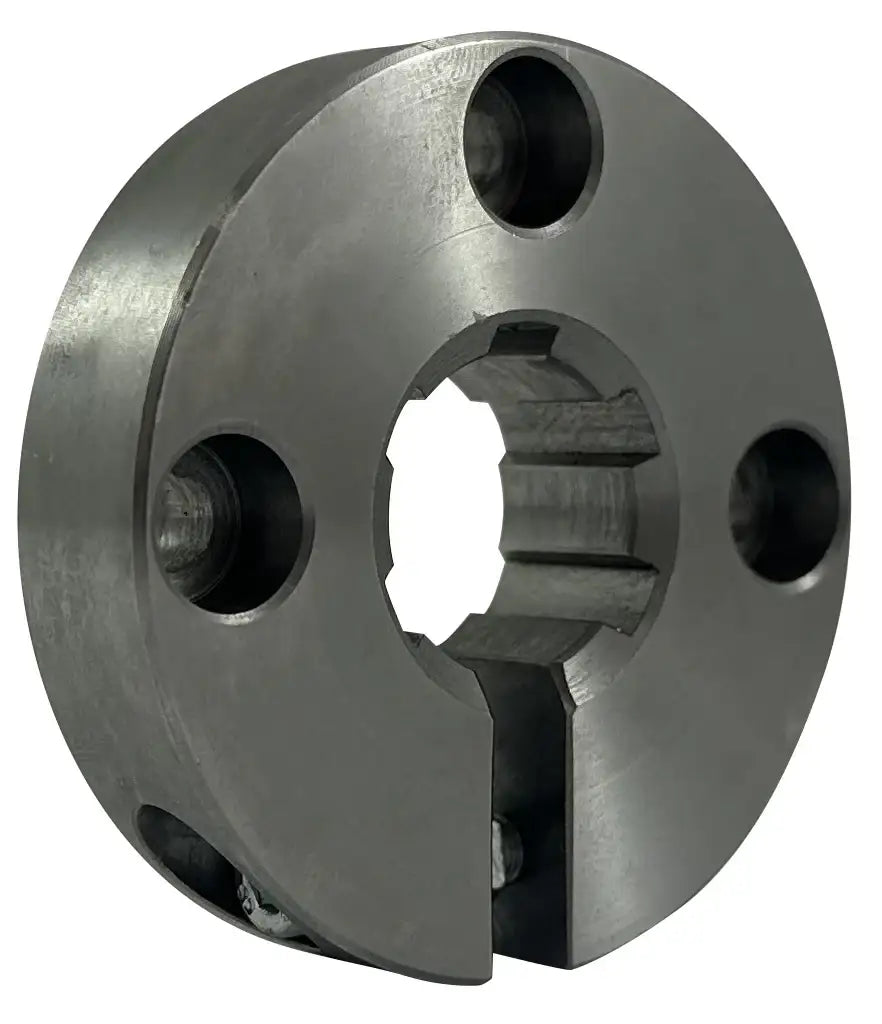

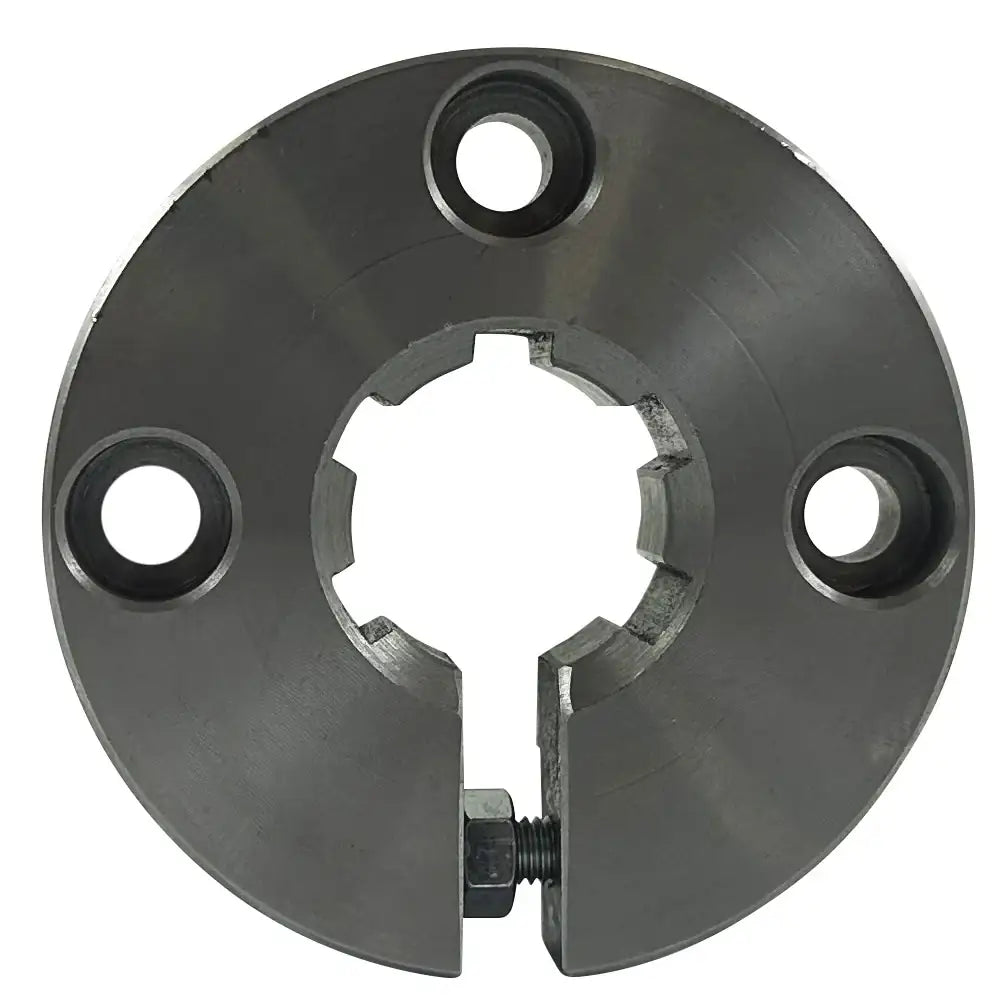

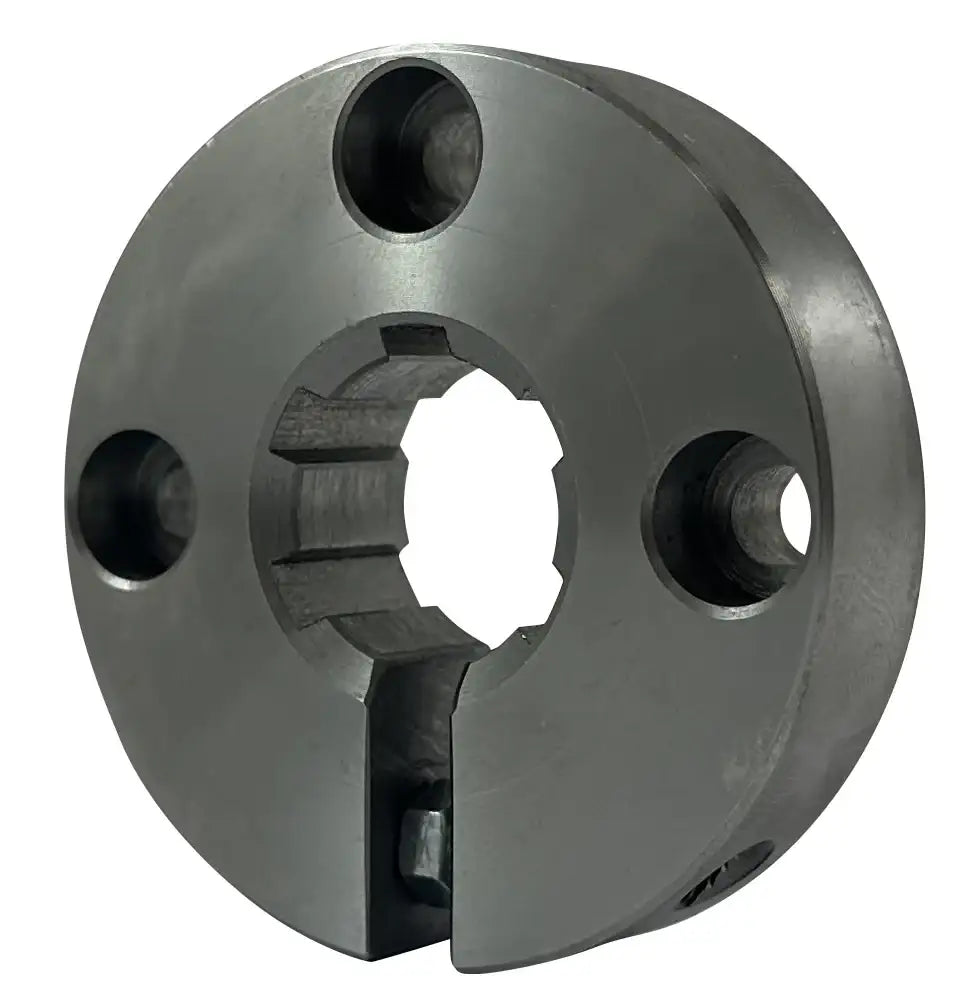

Our high-quality clamp collar for 14mm splined shaft with 6 splines is precision machined from 303-grade stainless steel. Made from stainless steel, this clamp collar can operate in abrasive, corrosive, and food-grade environments. This 14mm splined shaft clamp collar has four pre-drilled holes to mate perfectly with a splined hub with a flange. A splined clamp collar is a type of mechanical device used to secure or position components on a splined shaft. Unlike regular clamp collars, a splined clamp collar has internal splines that match the splines on the shaft, allowing for a secure and precise fit. This design ensures that the collar can transmit torque and resist rotational forces without slipping. If you would like more information or to get a quote on our premium stainless clamp collar for a 14mm splined shaft with 6 splines, we'll be happy to help you!

14mm Splined Clamp Collar Dimensions

Part Number: 64899602
Material: 303 Stainless
Profile Description: KN 11 x 14
Dimension (A): 42mm
Dimension (B): 28mm
Dimension (B1): 4.5mm
Dimension (C): 20mm
Dimension (d): 11mm
Dimension (L): 12mm
Dimension (K): 2mm
Dimension (T): 4.6mm
Dimension (S): M4
Weight: 0.10KG

Features

- Precision Made from Stainless Steel
- Made for 14mm Splined Shafting
- Pre-Drilled Holes to Accommodate Through-Bolts
- Conforms to DIN ISO 14 Standard
- Direct Mount to Splined Hub With Flange
