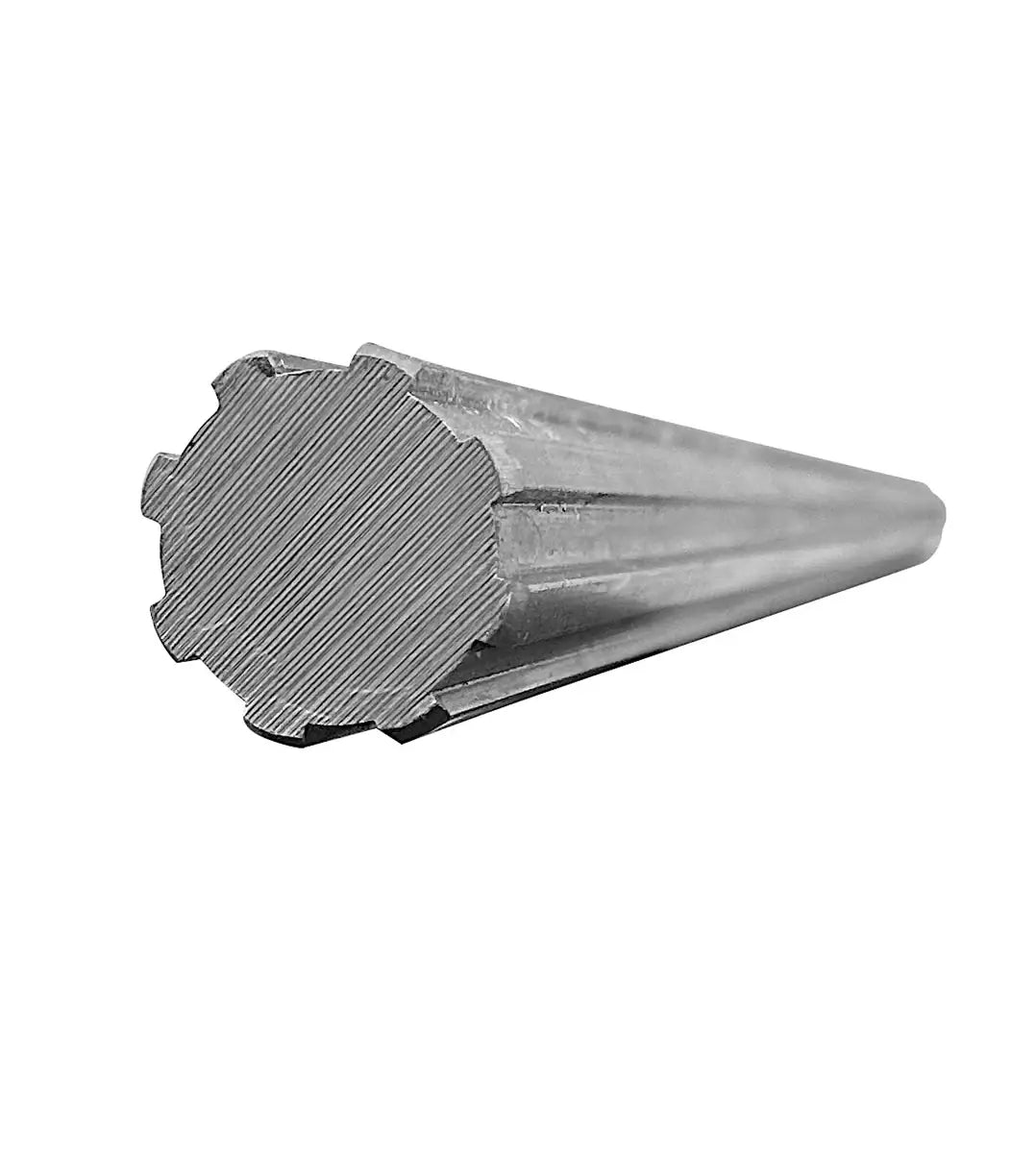

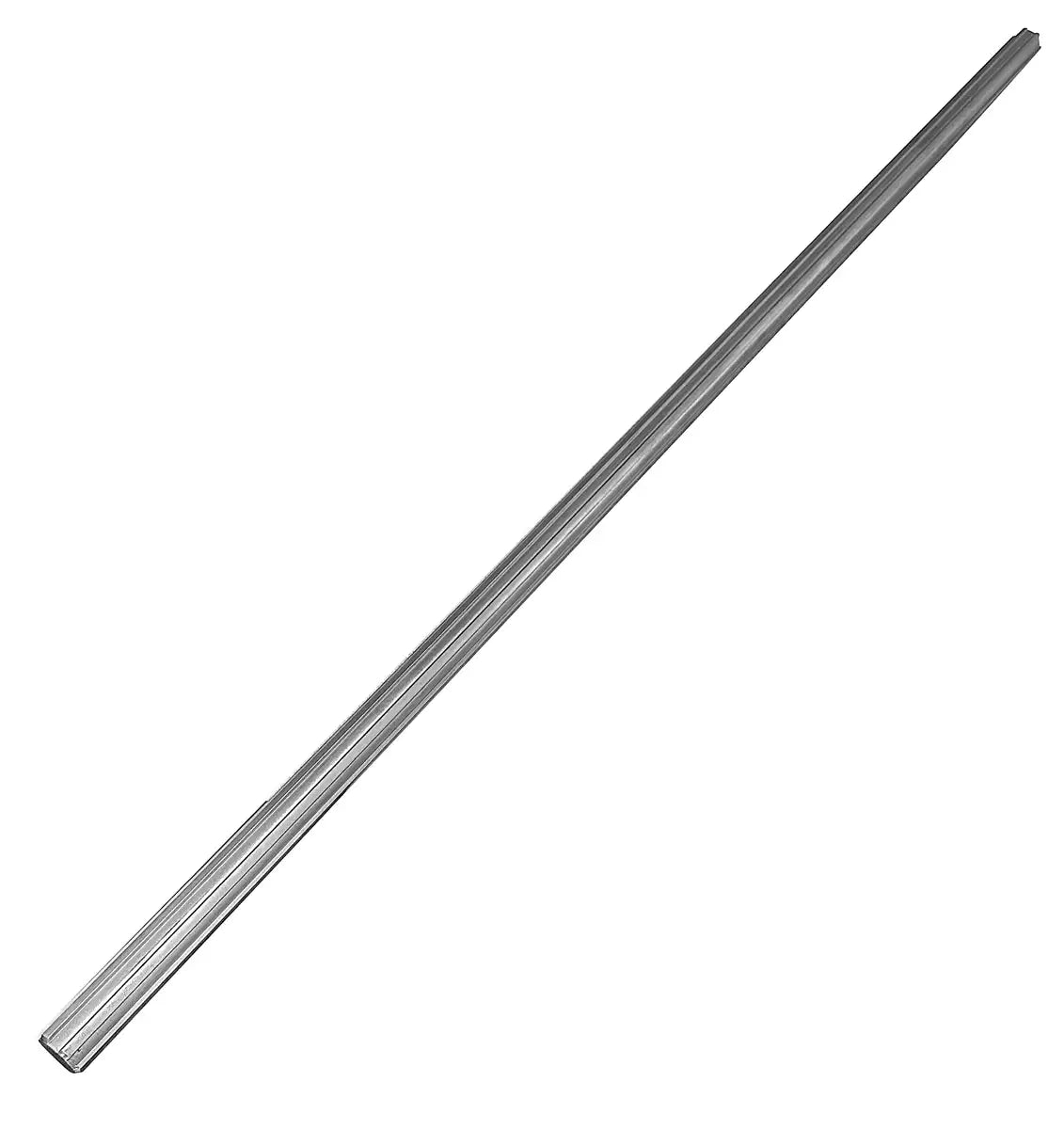

14mm Spline Shaft 6-Splines 304SS Material - 1000mm

Our premium stainless 14mm spline shaft with 6-splines, 1000mm in length, is precision machined from 304-grade stainless steel for the ultimate resistance to corrosion and abrasion. It can operate in food-grade, high-temp, and low-temp environments. This stainless steel 14mm spline shaft dimensionally conforms to DIN ISO 14 standards for direct interchangeability and compatibility with other brands and components like hubs, collars, and couplings. Although this particular component is supplied at 1000mm, we also provide other standard or custom lengths of stainless 14mm splined shafting. This shaft is designed to transmit torque to a high degree of precision and effectiveness. Typical applications for 14mm spline shafting include industrial machinery, food processing equipment, and mechanical drives. Stainless 14mm spline shafting can also be used mechanically to position components. For additional information or a quote on our premium stainless 14mm spline shaft with 6-splines in a 1000mm length, contact our customer service team, and we will gladly assist you!

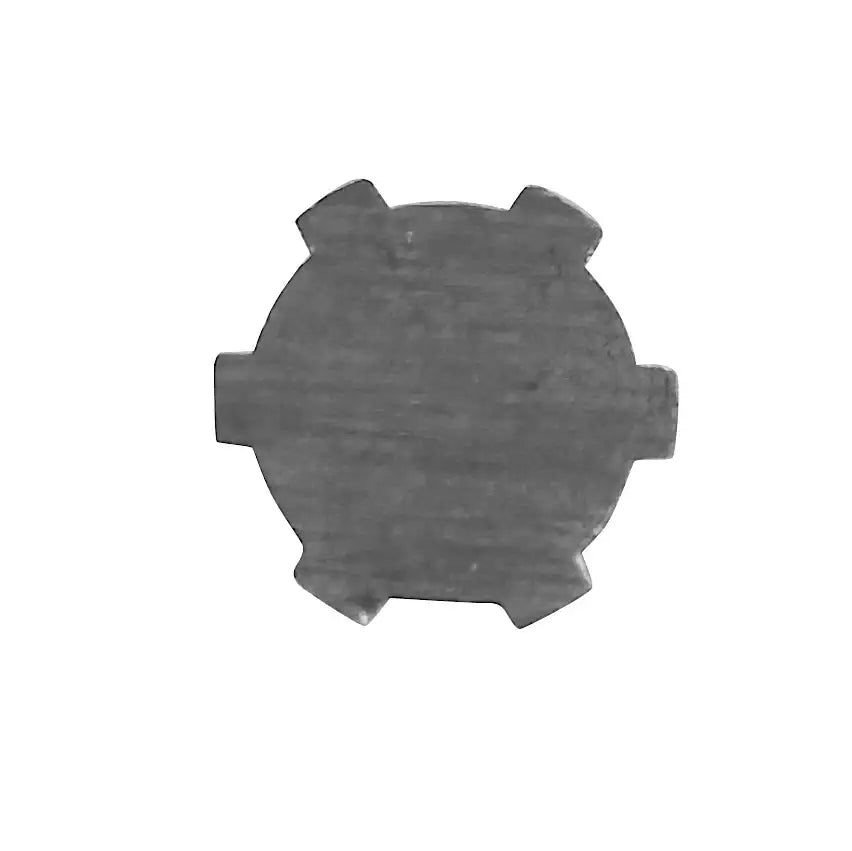

14mm Spline Shaft With 6-Splines Dimensions

• Shaft Diameter (D): 14mm
• Amount of Splines: 6
• Dimension (d): 11mm
• Dimension (b): 3mm
• Length: 1000mm
• Material: 304SS
• Weight: 0.949 Kg/ Meter
• Length Tolerance: 0.8mm/ Meter
• Maximum Torsion: 0.5mm/ Meter
