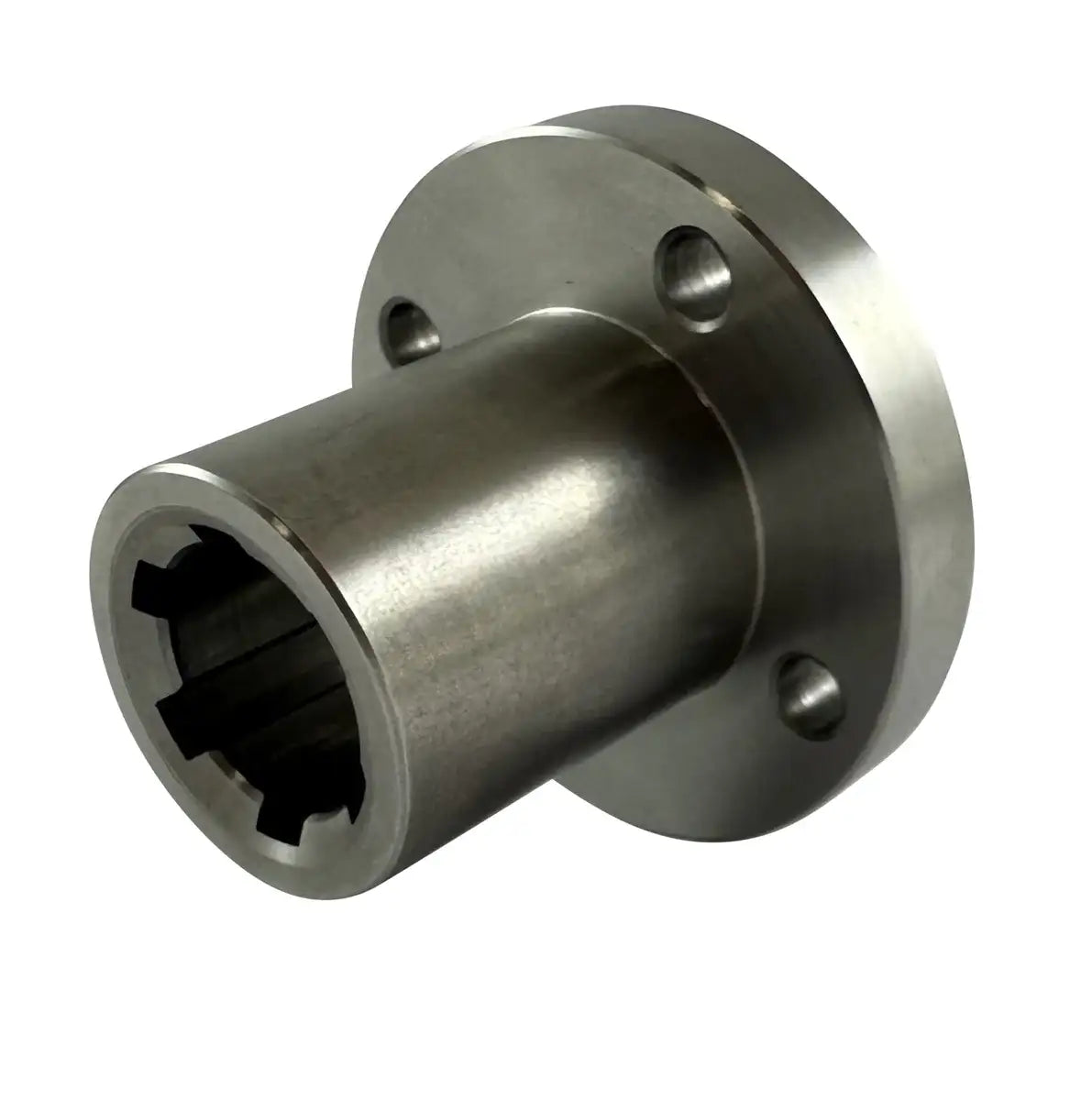

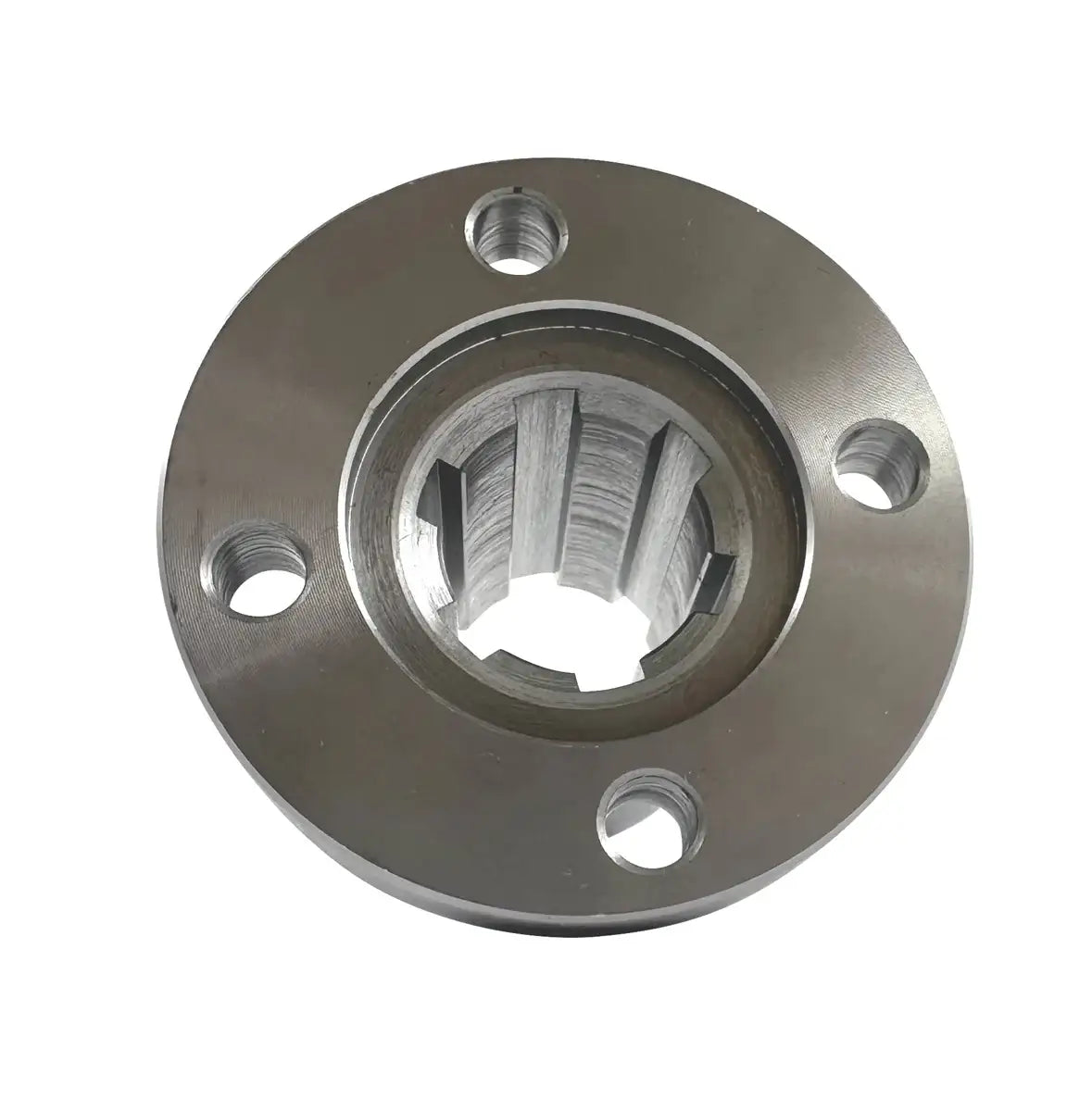

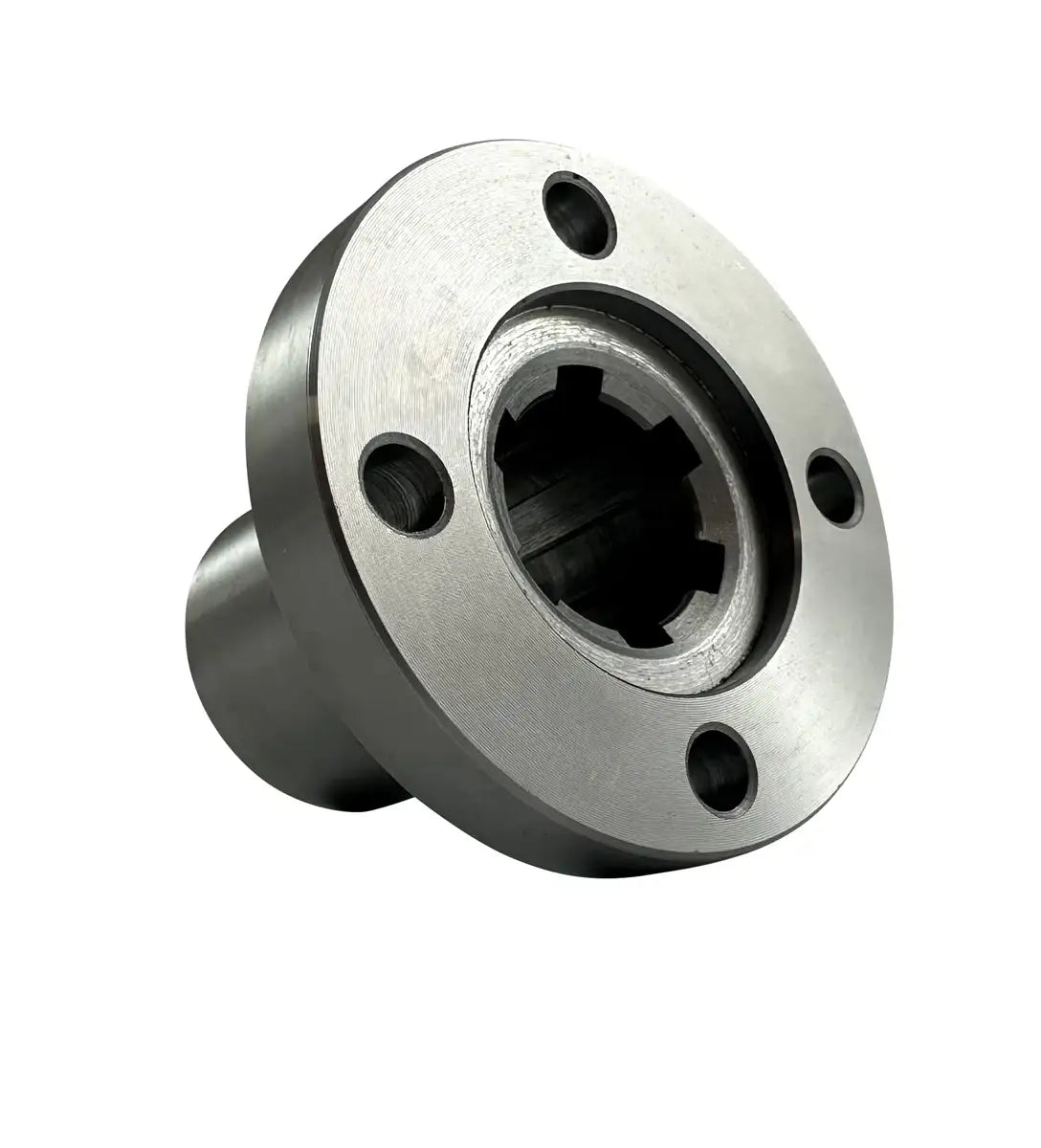

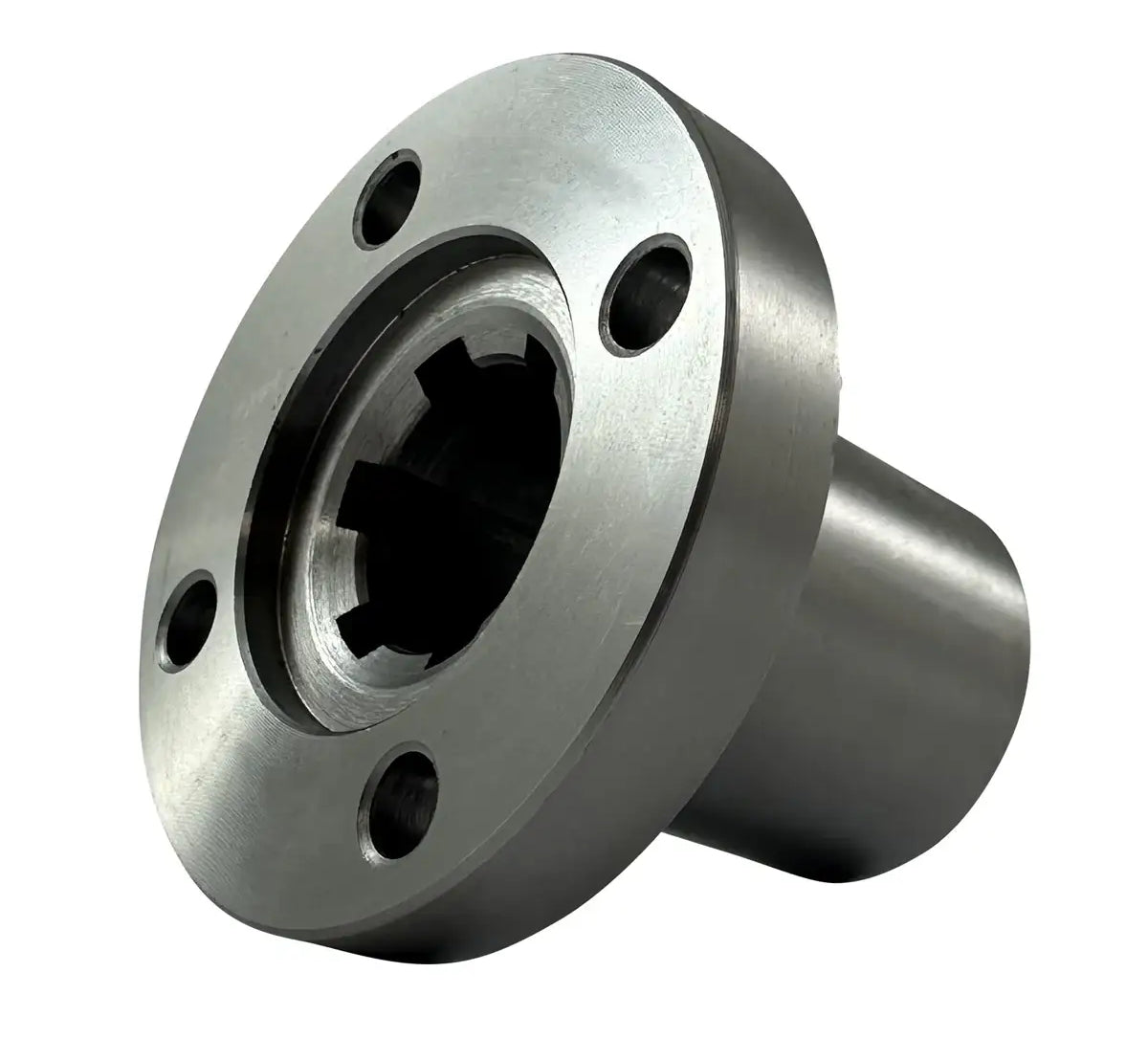

Splined Hub With Flange for 14mm Shaft With 6 Splines - C45 Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64850200-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Splined Hub With Flange for 14mm Shaft With 6 Splines - C45 Material Features
This high-quality splined hub with flange for a 14mm shaft with 6 splines is precision made from high-strength C45 steel and dimensionally confirms with ISO DIN 14 standards for direct interchangeability. Splined hubs with a flange are a vital component for accurately transmitting torque in a broad range of applications. Made specifically for a 14mm diameter splined shaft with 6-splines, this hub is easy to install and provides long-term, reliable usage. We also supply splined clamp collars to go with this hub with four pre-drilled holes. For additional information or to get a quote on our premium splined hub with flange for a 14mm shaft with 6 splines, contact our customer service team, and we will gladly assist you!
14mm With 6 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 14mm
- Profile Description: KN11x14
- Material: C45
- Part #: 64850200
- Dimension (A): 42mm
- Dimension (B): 28mm
- Dimension (B1): 4.5mm
- Dimension (C): 20mm
- Dimension (F): 20mm
- Dimension (d): 11mm
- Dimension (E): 8mm
- Dimension (h): 3mm
- Dimension (L): 35mm
- Weight: 0.10 KG
