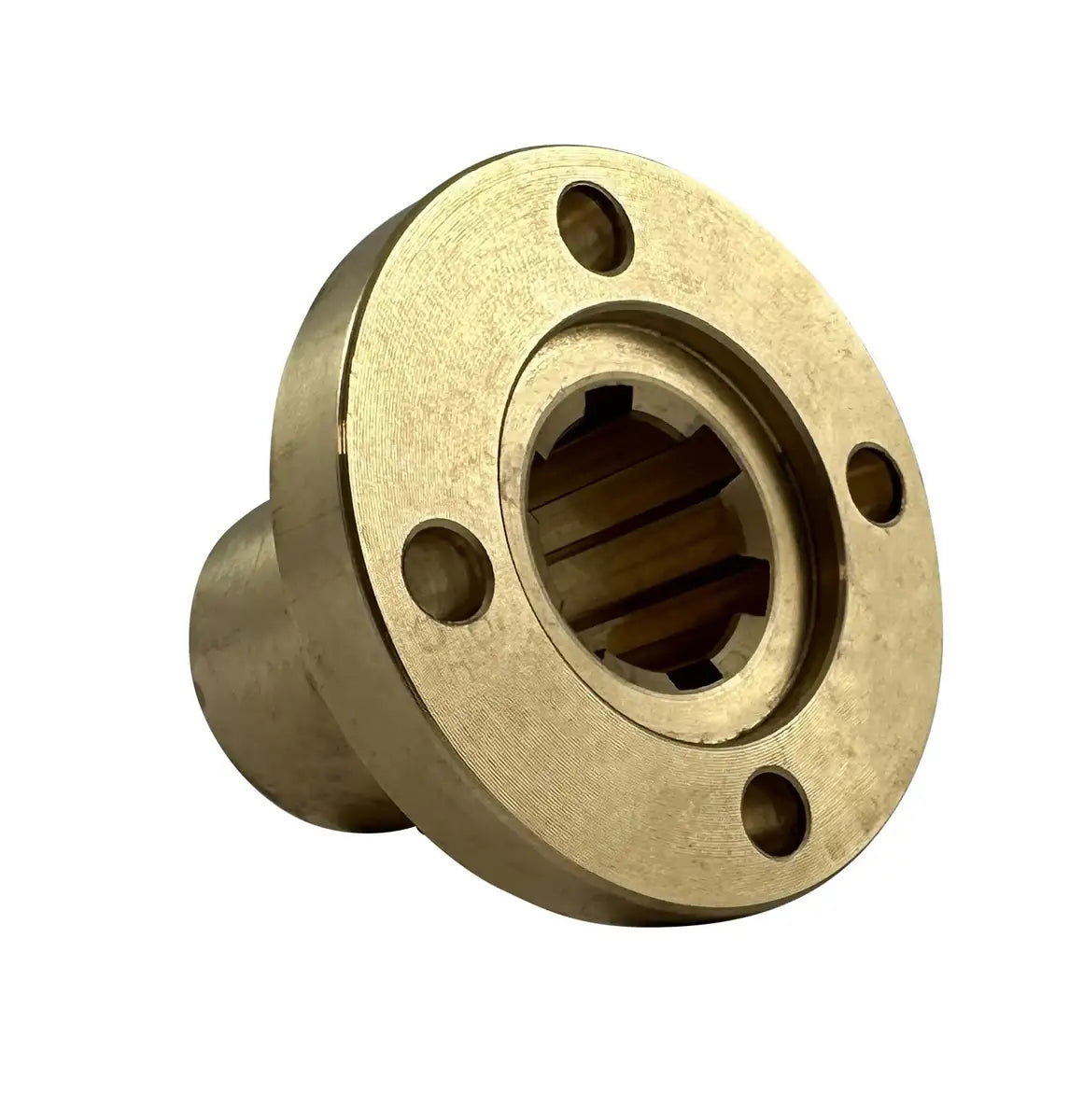

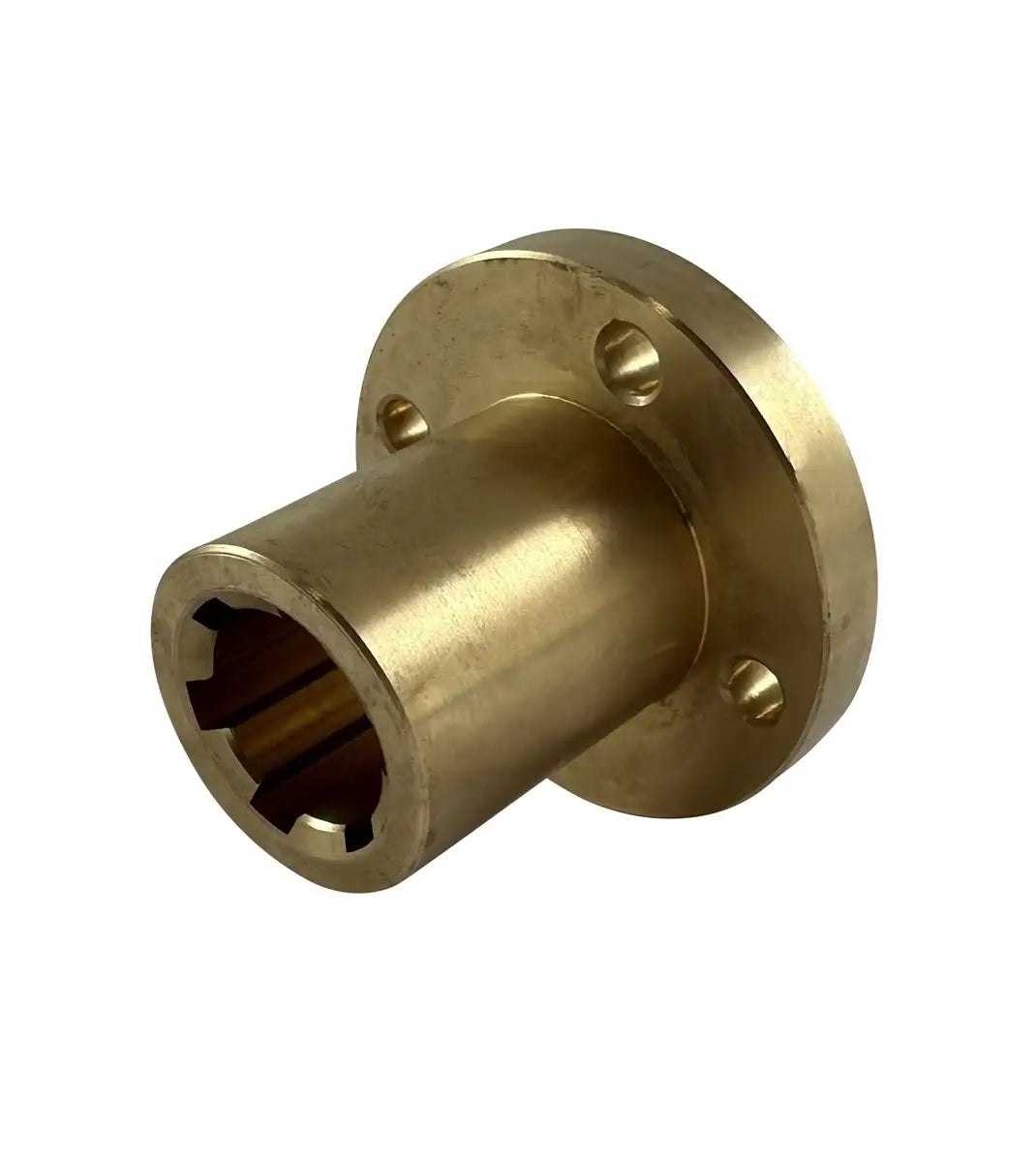

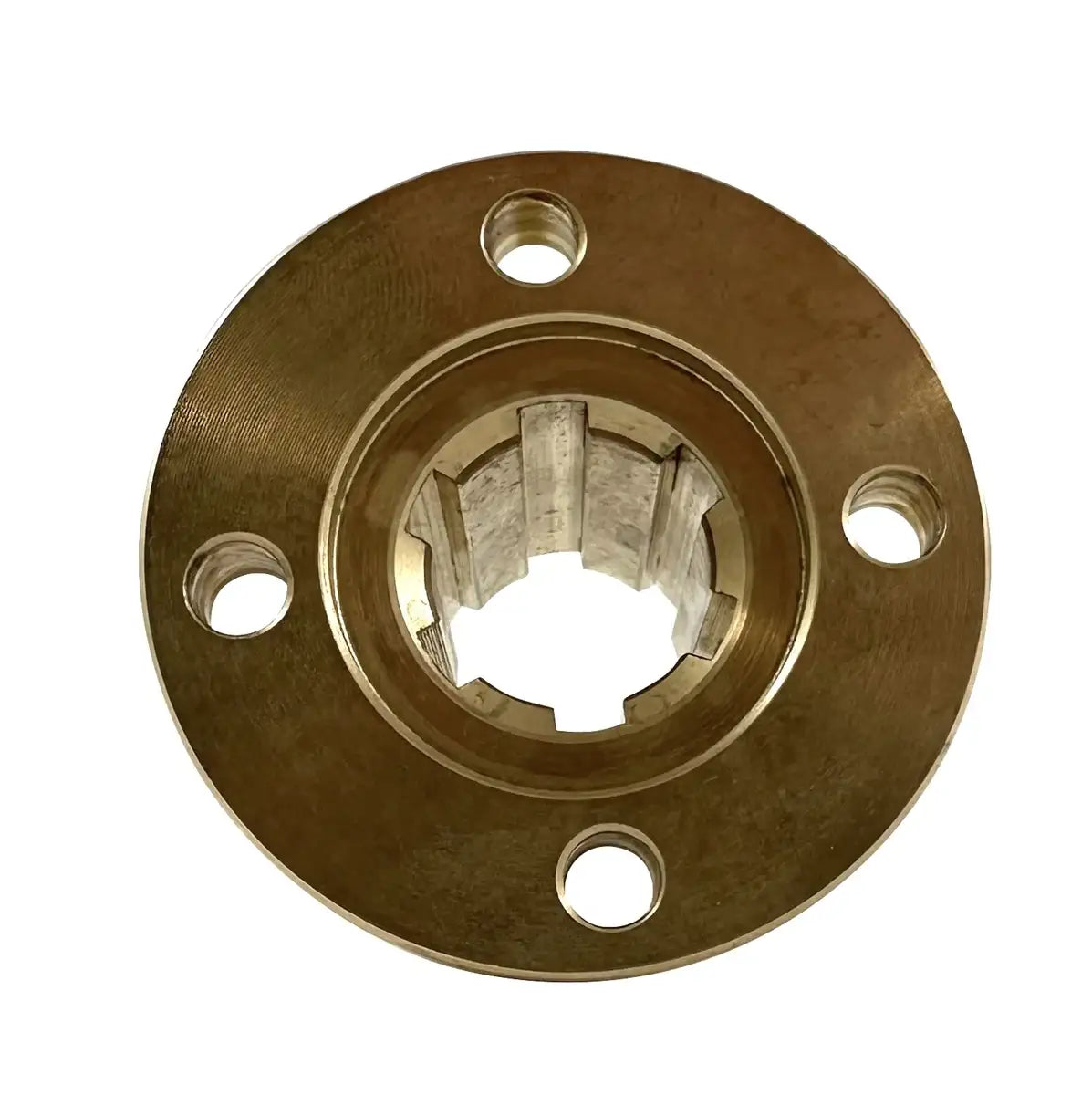

Splined Hub With Flange for 14mm Shaft With 6 Splines - Brass Material
Note:
Custom Cut to Length Chain Also Available
SKU: 64855200-FLANGED-HUB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Splined Hub With Flange for 14mm Shaft With 6 Splines - Brass Material Features
Splined Hub With Flange for 14mm Shaft With 6 Splines - Brass Material Specifications
Elevate your machinery with our top-notch splined hub featuring a flange, expertly crafted from high-quality brass for a 14mm shaft with 6 splines. Engineered to meet ISO DIN 14 standards, this hub ensures flawless interchangeability and delivers precision in torque transmission across a multitude of applications. Designed specifically for a 14mm diameter splined shaft with 6 splines, installation is a breeze, promising dependable, long-term performance. To enhance your setup, we also offer splined clamp collars with four pre-drilled holes, perfectly paired with this hub. For more details or to request a quote on our exceptional splined hub with flange for a 14mm shaft with 6 splines, reach out to our friendly customer service team, eager to assist you!
14mm With 6 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 14mm
- Profile Description: KN11x14
- Material: Brass
- Part #: 64855200
- Dimension (A): 42mm
- Dimension (B): 28mm
- Dimension (B1): 4.5mm
- Dimension (C): 20mm
- Dimension (F): 20mm
- Dimension (d): 11mm
- Dimension (E): 8mm
- Dimension (h): 3mm
- Dimension (L): 35mm
- Weight: 0.12 KG
- Made for Shaft Diameter: 14mm
- Profile Description: KN11x14
- Material: Brass
- Part #: 64855200
- Dimension (A): 42mm
- Dimension (B): 28mm
- Dimension (B1): 4.5mm
- Dimension (C): 20mm
- Dimension (F): 20mm
- Dimension (d): 11mm
- Dimension (E): 8mm
- Dimension (h): 3mm
- Dimension (L): 35mm
- Weight: 0.12 KG
