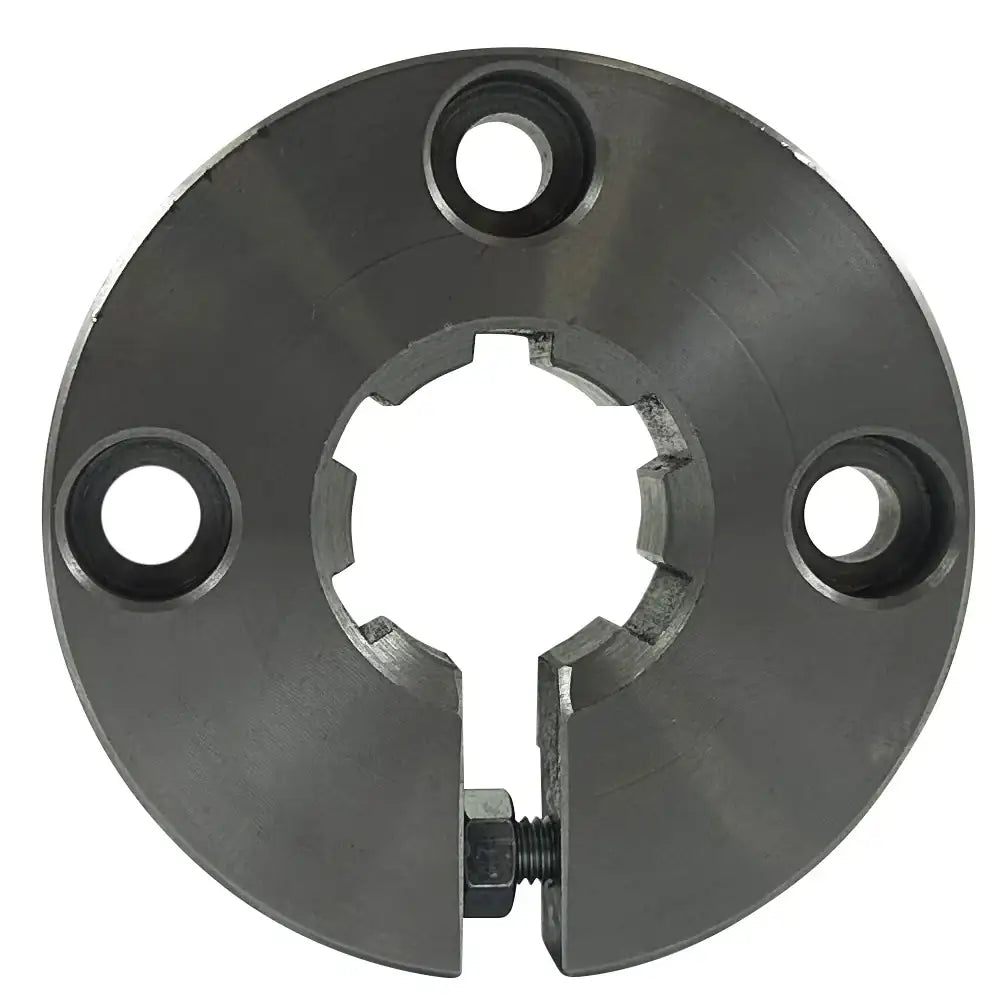

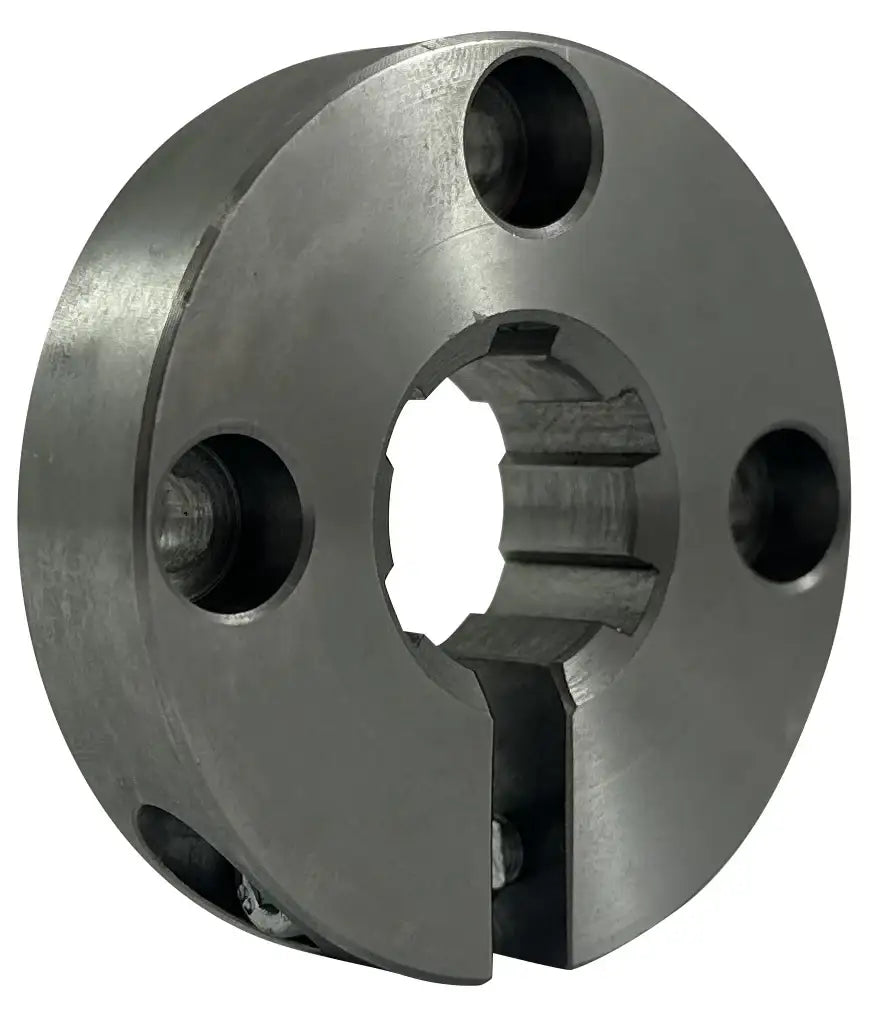

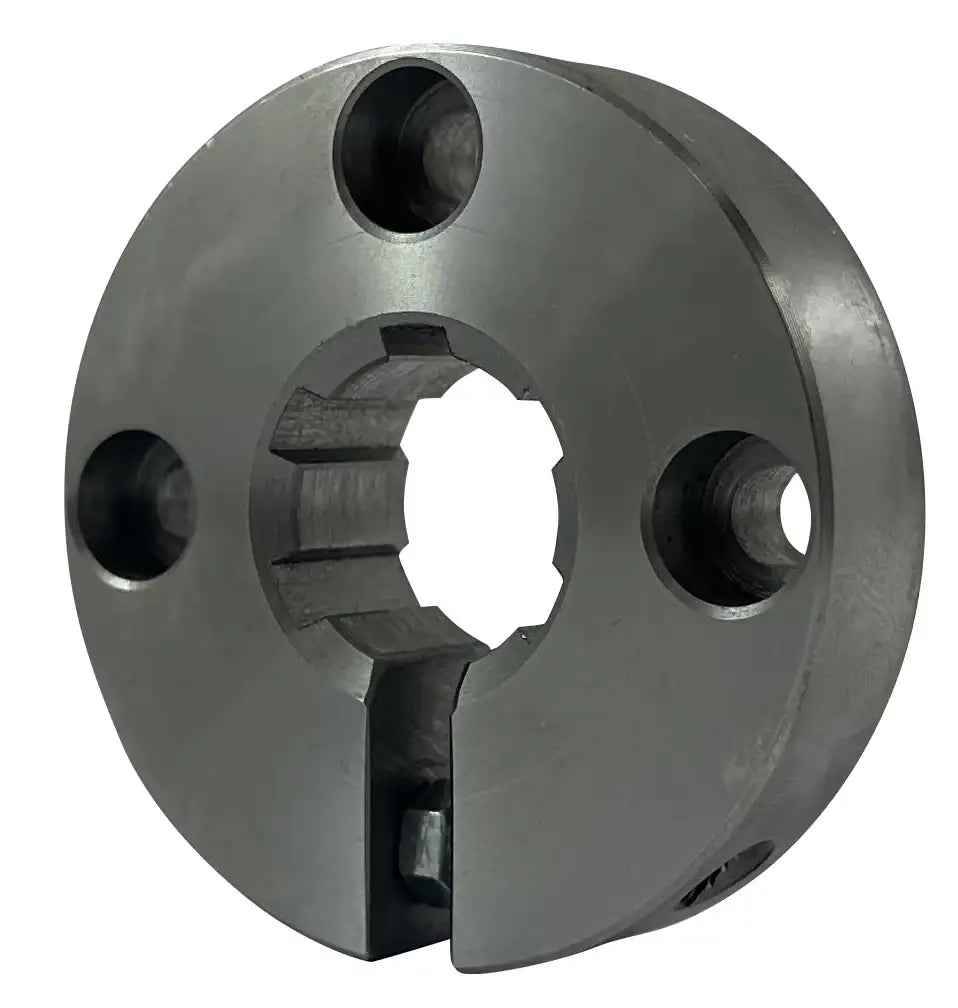

Clamp Collar For 14mm Splined Shaft With 6 Splines - C45 Steel

clamp-collar-14mm-splined-shaft-c45-steel

Alternative Views:

Our Price: $139.99

Availability: Usually Ships in 1 to 2 Weeks
Product Code: 64860200-CLAMP-COLLAR

Qty:

Description

Our high-quality clamp collar for 14mm splined shaft with 6 splines is precision machined from high-grade C45 steel. Being made from C45 steel means the collar is super high-strength and provides superior holding capacity. Additionally, this 14mm splined shaft clamp collar has four pre-drilled holes to mate perfectly with a splined hub with a flange. A splined clamp collar is a type of mechanical device used to secure or position components on a splined shaft. Unlike regular clamp collars, a splined clamp collar has internal splines that match the splines on the shaft, allowing for a secure and precise fit. This design ensures that the collar can transmit torque and resist rotational forces without slipping. For additional information or to get a quote on our premium clamp collar for a 14mm splined shaft with 6 splines contact our customer service team, and we will gladly assist you!

14mm Splined Clamp Collar Dimensions

Part Number: 64860200
Material: C45 Steel
Profile Description: KN 11 X 14
Dimension (A): 42mm
Dimension (B): 28mm
Dimension (B1): 4.5mm
Dimension (C): 20mm
Dimension (d): 11mm
Dimension (L): 12mm
Dimension (K): 2mm
Dimension (T): 4.6mm
Dimension (S): M4
Weight: 0.10 KG

Features

- Precision Made from C45 Steel
- Made for 14mm Splined Shafting
- Pre-Drilled Holes to Accommodate Through-Bolts
- Conforms to DIN ISO 14 Standard
- Direct Mount to Splined Hub With Flange
